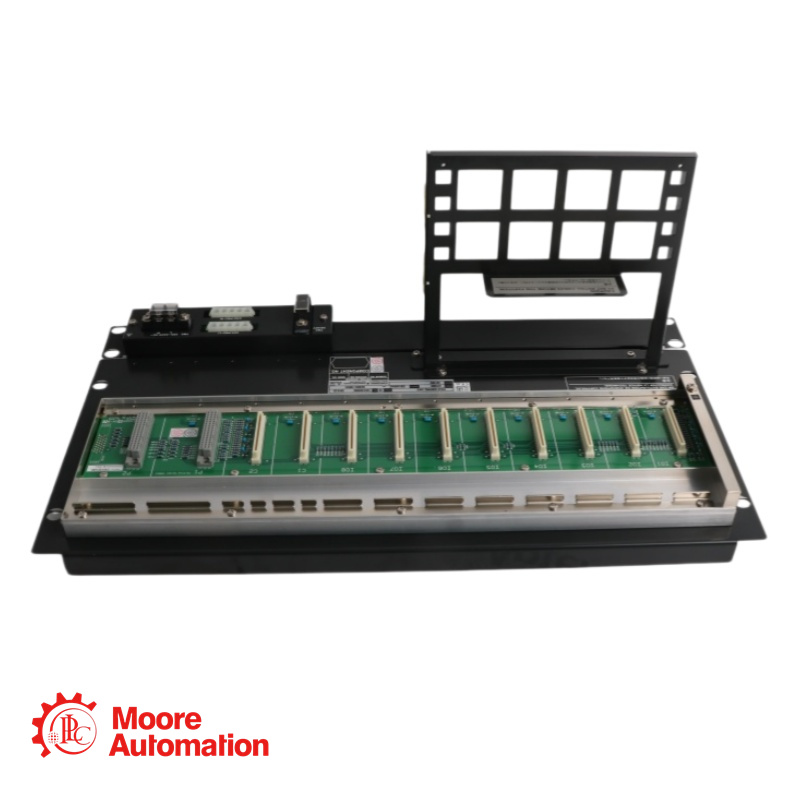

Yokogawa AFV30D-A41262 Duplexed Field Control Unit

Contact and Submit your Inquiry

Sales Manager - Frida

Phone/Whatsapp:
+86 15359408275

Email:
sales5@mooreplc.com

Address:
Xiamen,Fujian,China

General Information

Product ID:
AFV30D-A41262
Long Description:
This GS covers the hardware specifications of the Field Control Unit (FCU) which is the core of the control function of the Field Control Station (FCS).

Additional Information

Medium Description:
Dual-redundant power supply
Product Type:
Duplexed Field Control Unit
(for FIO, 19-inch Rack Mountable Type)
HS Code:8537101190

Technical

Processor Module: CP471 (dual-redundant configuration)
Processor Redundancy: Dual-redundant, 2 identical CP471 modules
Power Supply Configuration: Dual-redundant power supply
Power Supply Voltage: 24 V DC
Power Consumption: 5.5 A
Communication Interface: Vnet/IP, dual-redundant
ESB Bus Coupler Requirement: EC401 or EC402 in slots 7 and 8 (dual-redundant)
Connectable Node Units: Max. 13 per FCU (ANB10, ANB11)
I/O Module Capacity: Max. 8 I/O modules
Environmental Specification: Basic type (no ISA G3, no explosion protection)
Memory Backup: Battery backup for main memory, max. 72 hours
Battery Recharge Time: Min. 48 hours
READY Contact Output: 2 terminals (NC, C), 30 V DC, max. 0.3 A

FAQ

※How many I/O modules can I install in AFV30D-A41262?
Maximum 8 I/O modules per AFV30D.
※How many node units can I connect in AFV30D-A41262?
Maximum 13 node units (ANB10 and/or ANB11) per FCU.
※What is the battery backup time?
Maximum 72 hours. Minimum recharge time is 48 hours.
