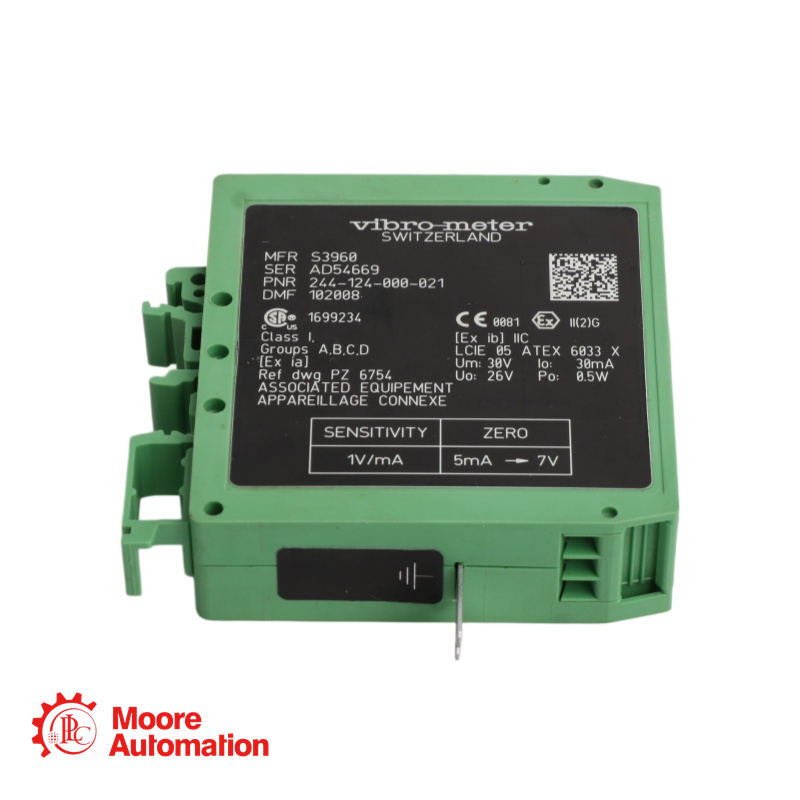

VIBRO METER GSI124 244-124-000-022 Piezoelectric Pressure Transducer

BRAND/ MANUFACTURER:

PART NUMBER

CONDITION:

COUNTRY OF ORIGIN

VIBRO METER

GSI124 244-124-000-022

Brand New Factory Sealed - Original

Name：Frida

Email：sales5@mooreplc.com

Whatsapp：+86 15359408275

Welcome to Inquire

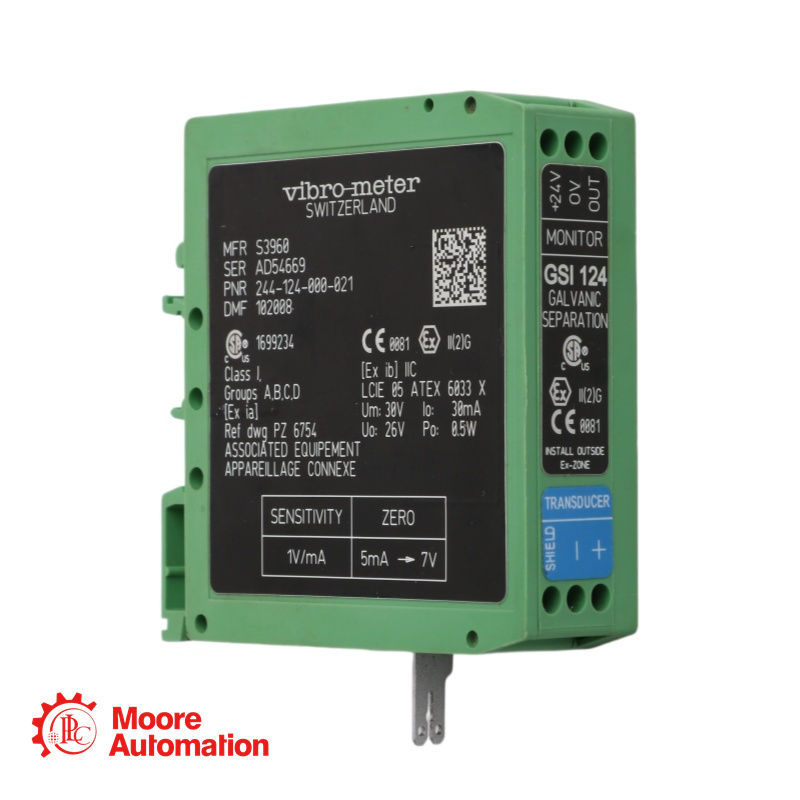

The versatile GSI 124 galvanic separation unit replace sits predecessors: GSI 122, GSI 123 and GSI 130. TheGSI 124 is for use with piezo-electric transducers with integrated electronics (eg. CE XXX), piezo-electric trans-ducer signal conditioners (eg. IPC XXX) and proximity probe signal conditioners (eg. IQS 4XX series).

The unit is intended for use in 2-wire transmission sys-tems at high frequencies. More generally, it may be used to supply any electronic system having a consumption ofless than 20 mA.

Vibration (according to IEC68.2.6): 5Hz to 35 Hz, 90 minutes/axis

0.15 mm peak below resonance frequency, 1 g peak above

Humidity (according to IEC68.2.30):

Operating:Up to 90%, non-condensing

Storage:Up to 95%, non-condensing

Shock:Half-sine, 6 g peak, 11 ms, 3 shocks/axis

Power supply for 2-wires types of transducers andsignal conditioners

Certified for use with measuring chains in potentiallyexplosive atmospheres

Galvanic separation voltage: 4 kVRMs

High rejection of frame voltage

DIN-Rail mounting
