Vibro-Meter EA902 913-902-000-011 Extension Cable
Vibro-Meter EA902 913-902-000-011 Extension Cable
Vibro-Meter EA902 913-902-000-011 Extension Cable

Vibro-Meter EA902 913-902-000-011 Extension Cable

Vibro-Meter EA902 913-902-000-011

EA902 913-902-000-011

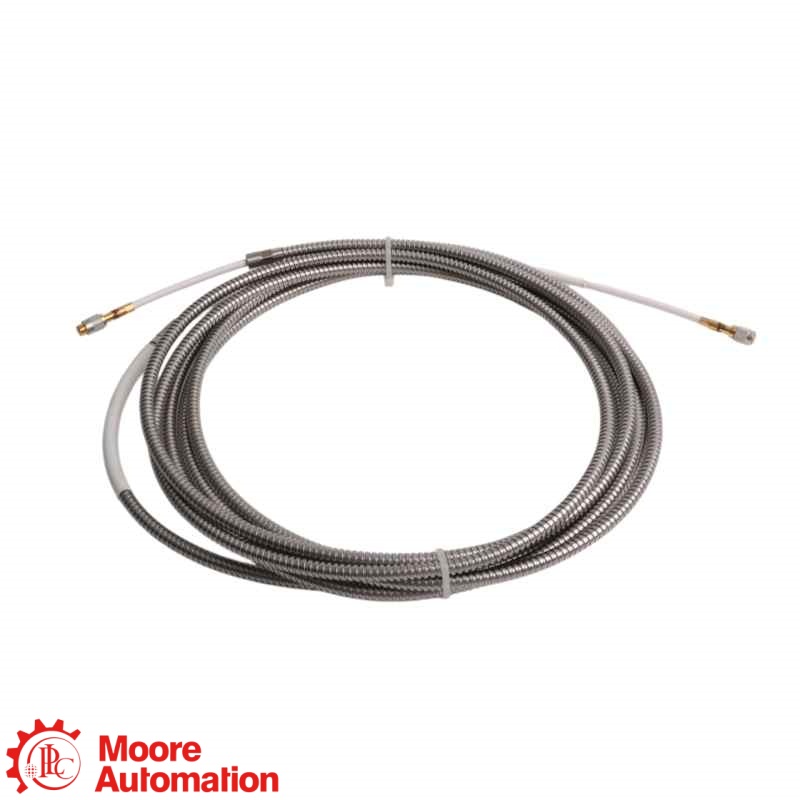

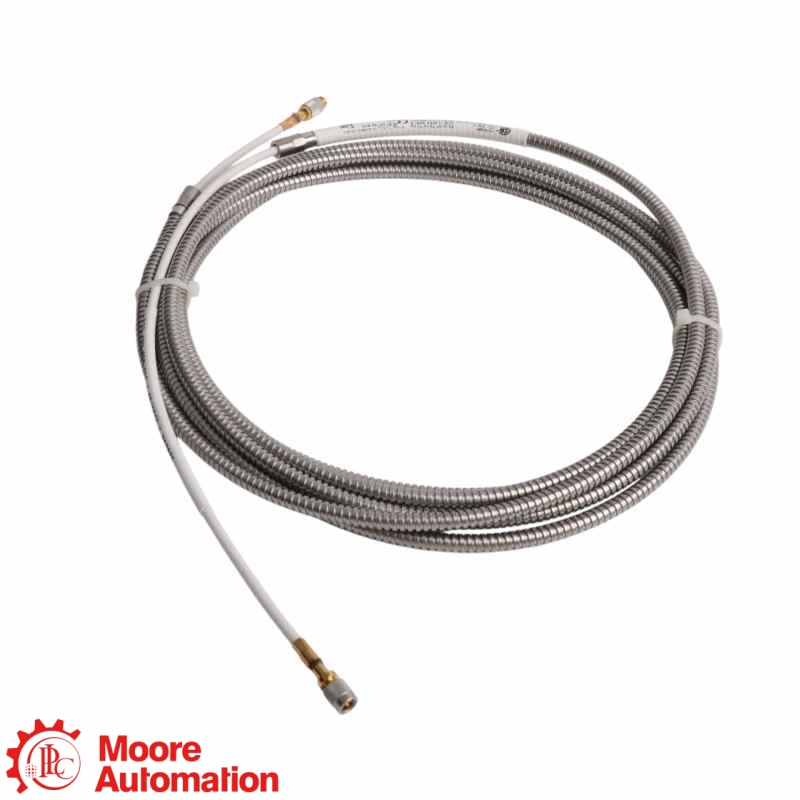

The EA902 913-902-000-011 is a Meggitt Vibro-Meter extension cable used to connect compatible TQ902 or TQ912 proximity transducers to an IQS900 signal conditioner and extend the measurement-chain front end.

MODULE TYPEEA902 extension cable
SYSTEM FAMILYTQ902 / TQ912 / EA902 / IQS900
COMPATIBILITYTQ902 / TQ912 / IQS900
ORDERING NUMBER913-902-000-011
MANUFACTURERMeggitt vibro-meter
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
VIBRO-METER ● EA902 EXTENSION CABLE
Vibro-Meter EA902

EA902 913-902-000-011

913-902-000-011 · COMPLETE ORDERING REFERENCE

Extension cable for compatible TQ902/TQ912 proximity measurement chains

MODULE ROLE
EA902 913-902-000-011 is a Meggitt Vibro-Meter extension cable that connects compatible TQ902 or TQ912 proximity transducers to an IQS900 signal conditioner and extends the measurement-chain front end.
CONFIGURATION NOTE
For EA902 913-902-000-011, confirm the complete nameplate reference, extension-cable length, environment code, optional protective hose or FEP sheath, connector protection and the matching TQ902/TQ912 and IQS900 configuration before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Meggitt Vibro-Meter ↗
EA902 EXTENSION CABLE

Engineering data at a glance

Click “+” to expand more specifications.

MODULE TYPEEA902 extension cable
CABLE CONSTRUCTIONFEP-covered 70 Ω coaxial cable
SYSTEMTQ902 / TQ912 / EA902 / IQS900
REFERENCE CHECKVerify complete 913-902-000-011 nameplate
Official Meggitt Vibro-Meter TQ902/TQ912, EA902 and IQS900 family data-sheet reference.
Official product verificationVerify the complete ordering reference EA902 913-902-000-011, including every suffix and option field shown on the nameplate. The official DS 265-101 ordering table directly lists EA902 base 913-902-000-011; confirm the environment, cable-length, protection and hose-length option fields from the installed nameplate.
GENERAL INFORMATION−
Brand / product lineMeggitt Vibro-Meter
Ordering numberEA902 913-902-000-011
Product typeVibro-Meter EA902 extension cable
System familyTQ902 / TQ912 / EA902 / IQS900
Cable roleExtends the front end between compatible proximity transducers and an IQS900 signal conditioner
Cable constructionFEP-covered 70 Ω coaxial cable, nominal diameter 3.6 mm
Documented family lengths3.0 m to 9.5 m extension-cable options are listed in the current EA902 ordering table
Cable / connector temperature−40 to +200 °C for the EA902 family cable and connector
Family environment optionsStandard and Ex-certified family configurations are listed in the current EA902 ordering table
Compatible signal conditionerIQS900 in documented TQ902/TQ912 proximity measurement chains
Cable and Measurement Chain Configuration＋
Compatible chain componentsTQ902 or TQ912 transducer with an EA902 extension cable and IQS900 signal conditioner
Cable connectionsSelf-locking miniature coaxial plug and jack connections in the documented EA902 family
Cable constructionFEP-covered 70 Ω coaxial cable with a nominal 3.6 mm diameter
System Integration and Installation＋
Cable roleExtends the front end between compatible proximity transducers and an IQS900 signal conditioner
Compatible measurement chainTQ902/TQ912, EA902 and IQS900 proximity measurement family
Total chain lengthMatch the EA902 extension length to the transducer integral cable and required total measurement-chain length
Installation verificationConfirm the exact PNR, cable length, environment option, protective hose or FEP sheath and connector-protection option
Hazardous-area configurationEvery component in an Ex measurement chain must carry the appropriate Ex-certified option
Ordering and Reference Verification＋
Official Meggitt data sheet DS 265-101 covers the TQ902/TQ912, EA902 and IQS900 family. Its ordering table directly lists EA902 base 913-902-000-011; confirm the appended environment, cable-length, protection and hose-length options from the product nameplate.
FAQ

Questions Buyers Ask Most

What is EA902 913-902-000-011?＋

EA902 913-902-000-011 is an extension cable used between a compatible TQ902 or TQ912 proximity transducer and an IQS900 signal conditioner.

What cable construction is documented for EA902 913-902-000-011?＋

EA902 913-902-000-011 uses FEP-covered 70 Ω coaxial cable with self-locking miniature coaxial connectors in the official EA902 family data sheet.

Which components form the measurement chain with EA902 913-902-000-011?＋

EA902 913-902-000-011 is used with a compatible TQ902 or TQ912 proximity transducer and an IQS900 signal conditioner.

Which extension-cable lengths are documented for the EA902 family containing EA902 913-902-000-011?＋

EA902 913-902-000-011 belongs to the EA902 family whose current ordering table lists cable-length options from 3.0 m to 9.5 m; confirm the exact option fields on the installed nameplate.

What connector arrangement is documented for EA902 913-902-000-011?＋

EA902 913-902-000-011 uses self-locking miniature coaxial plug and jack connections in the documented EA902 family; confirm the installed chain before replacement.

Can EA902 913-902-000-011 be used in hazardous areas?＋

EA902 913-902-000-011 can be used in a hazardous-area measurement chain only when the EA902, matching TQ902/TQ912 sensor and IQS900 conditioner all use the documented Ex option.

What should be verified when ordering EA902 913-902-000-011?＋

EA902 913-902-000-011 should be checked by full nameplate reference, extension-cable length, environment code, optional flexible hose with FEP sheath, connector protection and compatible TQ902/TQ912 and IQS900 references.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete nameplate PNR, extension-cable length, environment option, optional flexible hose with FEP sheath, connector protection, matching TQ902/TQ912 and IQS900 references and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Product Information for
EA902 913-902-000-011

Official Meggitt data sheet DS 265-101 directly lists EA902 913-902-000-011 as the extension-cable ordering base for TQ902/TQ912, EA902 and IQS900 proximity measurement chains.

Meggitt Vibro-Meter EA902 Extension Cable

DS 265-101 documents the EA902 ordering structure, cable-length options, environment option and optional protection fields for the exact EA902 913-902-000-011 base reference.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Use DS 265-101 for the EA902 913-902-000-011 ordering base and verify the appended environment, cable-length, protection and hose-length options from the installed nameplate before replacement.

EA902 EXTENSION-CABLE RELATIONSHIP

How EA902 913-902-000-011 Fits a Vibro-Meter Proximity Measurement Chain

Meggitt Vibro-Meter is the product line; EA902 identifies the extension-cable family; and EA902 913-902-000-011 is the complete supplied product reference that must be matched to the installed nameplate.

Meggitt Vibro-Meter · PRODUCT LINE
TQ902/TQ912 sensor with EA902 cable and IQS900 conditionerPROXIMITY MEASUREMENT CHAIN · CABLE RELATIONSHIP
EXTENSION CABLE

EA902 · 913-902-000-011

The EA902 extension cable connects a compatible TQ902 or TQ912 transducer to an IQS900 signal conditioner and extends the measurement-chain front end.

SYSTEM FAMILY

TQ902 · TQ912 · EA902 · IQS900

The extension cable is used with compatible TQ902 or TQ912 transducers and an IQS900 signal conditioner; cable options and total chain length must be verified.

CABLE CHARACTERISTICS

FEP-covered 70 Ω coaxial cable · Self-locking miniature connectors

DS 265-101 directly lists EA902 913-902-000-011 with standard or Ex environment options, cable-length options and optional hose/sheath and connector protection.

Compatibility check: verify the complete 913-902-000-011 PNR, extension-cable length, environment option, optional flexible hose with FEP sheath, connector protection and matching TQ902/TQ912 and IQS900 references before replacement.
APPLICATION AREAS

Application map for EA902 913-902-000-011

Proximity Chain ExtensionConnects the compatible transducer cable to the IQS900 signal conditioner across the required installation distance
High-Temperature Cable RoutingThe documented EA902 family cable and connectors are rated from −40 to +200 °C
APPLICATION CENTEREA902 913-902-000-011Vibro-Meter extension cable for compatible proximity measurement chains
Hydraulic Machinery Monitoring ChainsSupports TQ902/TQ912 measurement chains used on submerged pumps and hydraulic turbines
Hazardous-Area Measurement ChainsSupports appropriately Ex-certified transducer, cable and conditioner combinations
