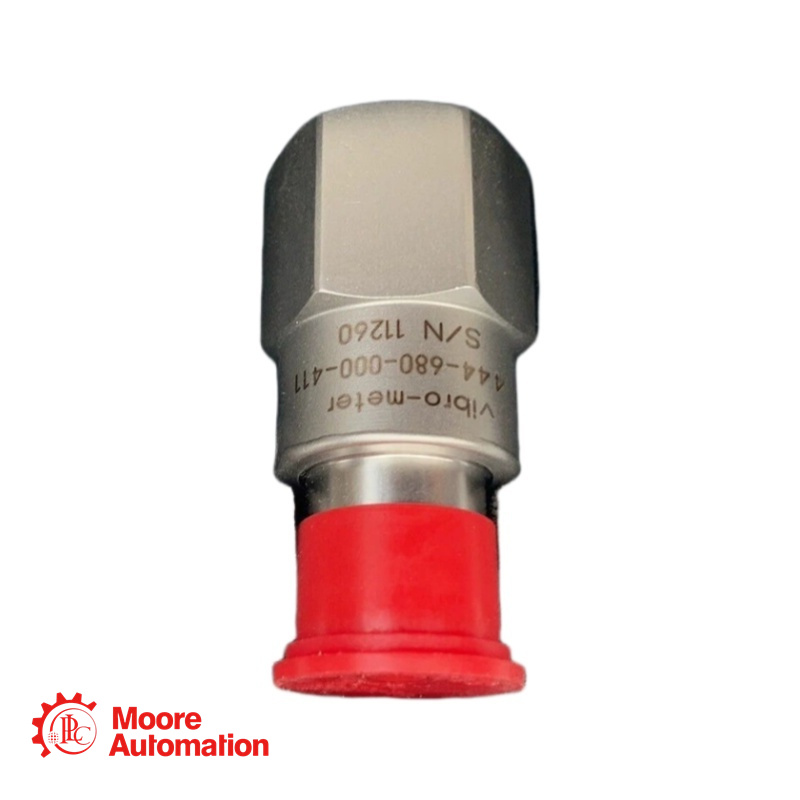

VIBRO METER 444-680-000-411 Vibration Sensor

BRAND/ MANUFACTURER:

PART NUMBER

CONDITION:

COUNTRY OF ORIGIN

VIBRO METER

444-680-000-411

Brand New Factory Sealed - Original

Name：Frida

Email：sales5@mooreplc.com

Whatsapp：+86 15359408275

Welcome to Inquire

The 444-680-000-411 is an all-purpose vibration sensor designed for use in harsh industrial machinery environments.

It uses the industry standard 2-wire voltage transmission technique with a 4 mA constant current supply.

The output signal has a sensitivity of100 mV/g.

Designed for medium temperature industrial applications (-50 to +120°C)

Frequency response:1 Hz to 9 kHz:+10%0.5 Hz to 14 kHz: -3 dB

Shear mode operation, therefore no output due tothermal transients

Hermetically sealed for harsh environments

Case insulated, internally shielded

ESD protection

Sensitivity (at +25°C):100 mV/g +5%

Dynamic range:809

Transverse sensitivity (maximum):5% of axial

Linearity:1% up to full scale

Input supply current:2to 10 mA

Supply voltage for current source:18 to 30 Voc

Bias output voltage:12VC
