Бренд :
SIEMENSномер части :
S54430-A2-A1Масса :
0,358 kgИзмерение :
12.0 cmx 8.2 cmx 1.8 cmСтрана происхождения :
GermanyКод ТН ВЭД :
8537101190Описание :

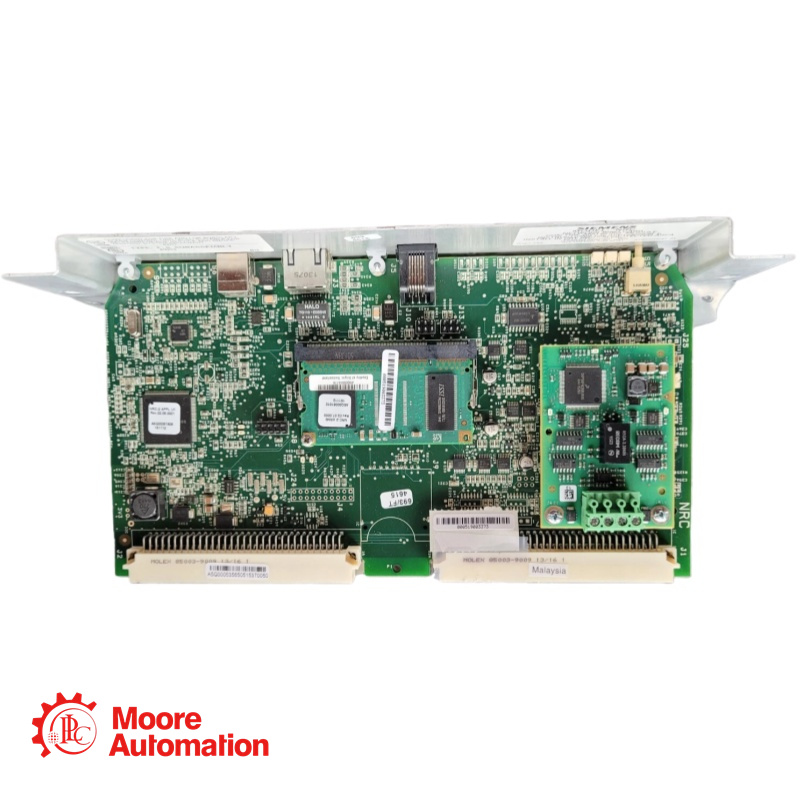

2nd Generation Network Ring Card
Contact Us Today
Sales Manager: Frida
Phone/Whatsapp/Wechat:+8615359408275
Email: sales5@mooreplc.com
Description
The S54430-A2-A1 Generation Network Ring Card – the second generation of Model NRC from Siemens. Fire Safety is a networking card that transmits communication data via copper lines, or through single-mode (Model FN2006-U1) or multi-mode (Model FN2007-U1) fiber-optic cable.
Model NRC uses a 'Class X'(Style 7) ring configuration to work with Cerberus PRO Modular system fire alarm control panels (FACPs).
Parameters
INPUT POWER:24V BACK
indoor dry locations temperature range:120+/-3°F (49+/2°C) to 32+/-3°F (0+/-2°C)
PLANE CURRENT:140mA
SCREW TERMINAL(24V CURRENT DRAW):0
6.2V BACK PLANE CURRENT:20mA
24V STANDBY CURRENT:145mA
relative humidity of 93+/-2% temperature range:90+/-3°F (32+/-2°C).
Frequently Asked Questions
Q:What is the main function of the S54430-A2-A1 2nd Generation Network Ring Card (Model NRC)?
A: The Network Ring Card (NRC) provides XNET peer-to-peer communication between Cerberus PRO Modular fire alarm control panels, enabling up to 64 systems to be networked together in a single ring configuration.
Q: What communication and service ports are provided?
A: The S54430-A2-A1 NRC includes one RJ-45 port, one RJ-11 monitor jack, and one USB port. The USB and RJ-45 ports support firmware downloads, while the RJ-11 port allows connection to diagnostic tools.
Q: What cabling types and distances are supported?
A: For copper connections, the S54430-A2-A1 NRC supports 22 AWG minimum to 12 AWG maximum shielded or unshielded twisted pair cables with at least three twists per foot. The maximum supported distance is 3,300 feet (1,006 meters) per pair between cards, depending on wire type.
|
