Бренд :
Siemensномер части :
6SL3120-1TE21-8AA4Масса :
4.5 kgИзмерение :
50 mm*380 mm*270 mmСтрана происхождения :
GermanyКод ТН ВЭД :
8537101190Описание :
Single Motor Module
Welcome to Contact
Sales Name
Phone/WhatsApp
Email
Frida
Product Features

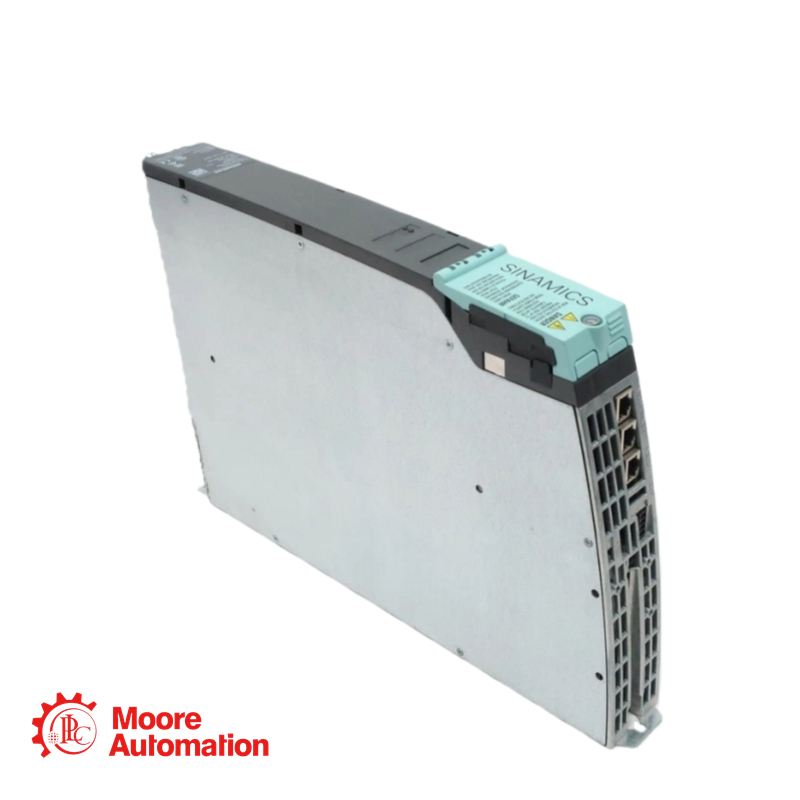

The Siemens SINAMICS S120 Motor Module (6SL3120-1TE21-8AA4) is a compact, booksized drive component designed for precise motor control in systems.
Input DC Link Voltage Range: DC 510 V to 720 V
It delivers a rated output of 8.2/9.7 kW at 400V, with a high overload capacity up to 54 A and integrated safety functions meeting SIL 2 and PL d standards.
Featuring internal air cooling, connector-based motor interfaces, and a robust design for operation up to 40°C, it is a key building block for modular drive solutions in machinery and industrial applications.
Electronics Power Supply: DC 24 V -15% / +20%
Electronics Current Demand (Maximum): 0.85 A
DC-Link Current (I_v): 22.0 A
Output Current (Rated Value, I_n): 18.0 A
Output Current (Base Load, I_b): 15.3 A
Output Current for S6 Duty Cycle (40%, I_s6): 24.0 A
Output Current (Maximum, I_max): 54.0 A
Rated Output Power at 400V 3 AC (based on I_b): 8.2 kW
Rated Output Power at 400V 3 AC (based on I_v): 9.7 kW
Rated Pulse Frequency: 4.00 kHz
Current Carrying Capacity of DC Link Busbars: 100 A
Current Carrying Capacity of 24 V Busbars: 20 A
DC Link Capacitance: 220 µF
Installation Altitude (without derating): 1000 m (3281 ft)
Cooling Method: Internal air cooling (integrated fan)
Cooling Air Requirement: 0.008 m³/s
Ambient Temperature During Operation: 0 °C to 40 °C (32 °F to 104 °F)
Maximum Shielded Motor Cable Length: 70 m (230 ft)
Maximum Unshielded Motor Cable Length: 100 m (328 ft)
Width: 50.00 mm (1.97 in)
Height: 380.00 mm (14.96 in)
Depth: 270.00 mm (10.63 in)
Sound Pressure Level (at 1m): 60.0 dB
Power Loss (Typical): 0.14 kW
Power Loss (Maximum): 0.19 kW
