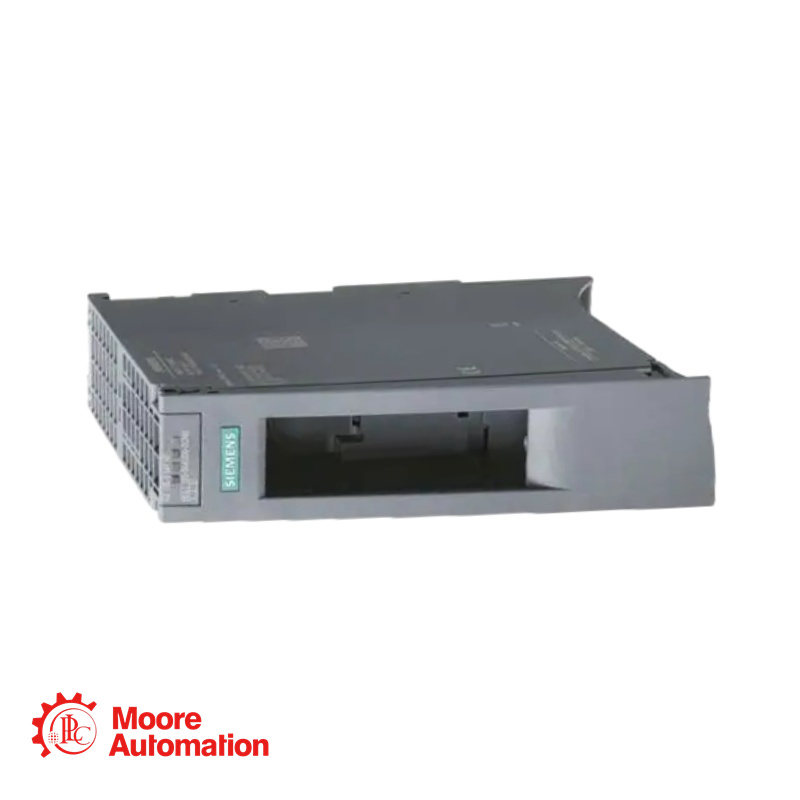

SIMATIC ET 200MP,multi-fieldbus interface module, IM 155-5 MF HF, EtherNet/IP and Modbus TCP, 2 flexible ports via plug-in SIMATIC BusAdapter, max.
Бренд :
Siemensномер части :
6ES7155-5MU00-0CN0Масса :
0.26 kgИзмерение :
129 mm*147 mm*35 mmСтрана происхождения :
GermanyКод ТН ВЭД :
8537101190Описание :
Multi-fieldbus Interface Module
Want to inquire? Contact us now
Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Product Details
Rated Supply Voltage (DC): 24 V
Permissible Supply Voltage Range (DC): 19.2 V to 28.8 V
Mains Buffering: 10 ms
Current Consumption (Rated): 0.16 A at 24 V DC (without load)
Max. Current Consumption: 1.2 A
Max. Inrush Current: 13 A
Power: 16 W (integrated power supply)
Typical Power Loss: 4.3 W
Max. I/O Modules per Rack: 30
Max. Submodules per Station: 256 (9 per I/O module)
Integrated Power Supply: Yes, 16 W
Address Space per I/O Module: 256 bytes (for input and output data respectively)
Max. Address Space per Station: 1,440 bytes (for input and output data respectively)
Max. Address Space per Module: 256 bytes (outputs: 246 bytes, inputs: 256 bytes); Expandable via ForwardOpen
Max. Address Space per Station: 500 bytes (outputs: 246 bytes, inputs: 500 bytes)
Access-Consistent Address Space: 250 bytes
I/O Request Interval: 2 ms
Max. Connections per Device: 9
Operating Temperature: Horizontal: -30°C to +60°C; Vertical: -30°C to +40°C
