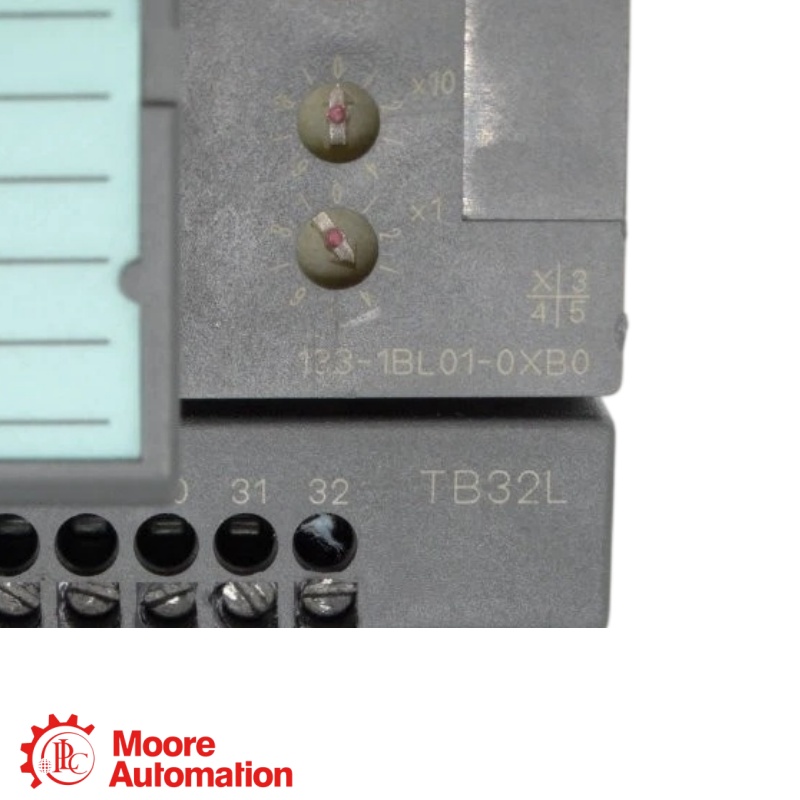

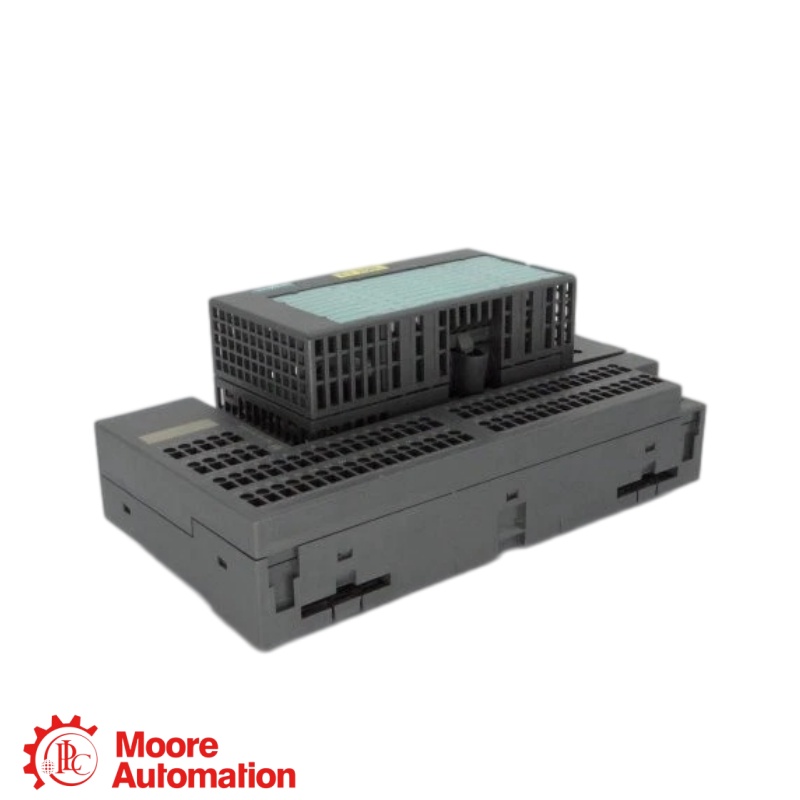

Siemens 6ES7133-1BL01-0XB0 ET 200L 16 DI/16 DO Digital I/O Block
Siemens 6ES7133-1BL01-0XB0 ET 200L 16 DI/16 DO Digital I/O Block
Siemens 6ES7133-1BL01-0XB0 ET 200L 16 DI/16 DO Digital I/O Block

Siemens 6ES7133-1BL01-0XB0 ET 200L 16 DI/16 DO Digital I/O Block

Siemens SIMATIC ET 200L · Digital I/O Block

6ES7133-1BL01-0XB0

The 6ES7133-1BL01-0XB0 is a Siemens SIMATIC ET 200L electronics block with 16 digital inputs and 16 digital outputs in separate groups of 16. Its inputs and output loads are rated 24 V DC, with 0.5 A per output.

PRODUCT TYPEDIGITAL I/O BLOCK
INPUT / LOAD VOLTAGE24 V DC
OUTPUT CURRENT0.5 A / output
I/O CHANNELS16 DI · 16 DO
MANUFACTURERSiemens
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
SIEMENS ● ET 200L DIGITAL I/O BLOCK
Siemens SIMATIC ET 200L

6ES7133-1BL01-0XB0

ET 200L · 16 DI / 16 DO Digital I/O Block

ET 200L · 16 DI / 16 DO Digital I/O Block

PRODUCT ROLE
6ES7133-1BL01-0XB0 is a Siemens SIMATIC ET 200L electronics block with 16 digital inputs and 16 digital outputs in separate groups of 16, 24 V DC rated inputs and output loads, and 0.5 A per output.
TECHNICAL CONTEXT
For 6ES7133-1BL01-0XB0, Siemens specifies 16 inputs and 16 outputs, PROFIBUS-DP communication, 24 V DC rated input and load voltages, and 0.5 A per output. The electronics block plugs into a TB 32L terminal block for stationary wiring.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens ET 200L manual ↗
ET 200L Digital I/O Block

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEDIGITAL I/O BLOCK
INPUT / LOAD VOLTAGE24 V DC
OUTPUT CURRENT0.5 A
I/O CHANNELS16 DI / 16 DO
Siemens ET 200L manual specifications for 6ES7133-1BL01-0XB0.
MODEL IDENTITYExact Siemens ET 200L digital I/O block article number: 6ES7133-1BL01-0XB0.
General Information −
BrandSiemens
Part number6ES7133-1BL01-0XB0
Product typeDigital I/O Electronics Block
Product familyET 200L
System roleDistributed digital inputs and outputs
Output current / channel0.5 A
Rated load voltage24 V DC
I/O groups16 DI + 16 DO
Bus protocolPROFIBUS-DP
Weight, approx.130 g
Physical Data ＋
Dimensions (W × H × D)145 × 60 × 60.5 mm
Weight, approx.130 g
Terminal block familyTB 32L
Function & Configuration ＋
Product role16-input/16-output digital I/O
Bus protocolPROFIBUS-DP
Rated load voltage24 V DC
Electronics supply24 V DC
Output current / channel0.5 A
I/O grouping1 DI group + 1 DO group
SYNC compatibilityYes
Status displayGreen LED per channel
Source: Siemens ET 200L Distributed I/O Device manual, Section 8.5, for 6ES7133-1BL01-0XB0.
FAQ

Questions Buyers Ask Most

What I/O configuration does 6ES7133-1BL01-0XB0 provide?＋

6ES7133-1BL01-0XB0 has 16 digital inputs for 24 V DC switches or proximity switches and 16 digital outputs for 24 V DC loads. Siemens groups the inputs together and the outputs together in this ET 200L electronics block.

Which terminal blocks accept 6ES7133-1BL01-0XB0?＋

6ES7133-1BL01-0XB0 plugs into an ET 200L TB 32L terminal block. Siemens lists 6ES7193-1CL00-0XA0 for screw terminals and 6ES7193-1CL10-0XA0 for spring terminals.

What input and output ratings apply to 6ES7133-1BL01-0XB0?＋

6ES7133-1BL01-0XB0 uses 24 V DC rated inputs and a 24 V DC rated load voltage. Each output has a rated current of 0.5 A; Siemens lists switches and proximity switches for inputs and solenoids, DC contactors and indicator lights for outputs.

How are the channels grouped on 6ES7133-1BL01-0XB0?＋

6ES7133-1BL01-0XB0 has one group of 16 inputs and one group of 16 outputs. Siemens specifies aggregate output-current limits per byte that vary by mounting position and ambient temperature.

Which bus and synchronization functions does 6ES7133-1BL01-0XB0 support?＋

6ES7133-1BL01-0XB0 communicates over PROFIBUS-DP and supports both FREEZE and SYNC functions in the ET 200L system. Its green channel LEDs and bus-fault indicator support status checks.

What should be checked when installing 6ES7133-1BL01-0XB0?＋

6ES7133-1BL01-0XB0 requires a TB 32L terminal block and a 24 V DC electronics supply. Check the 24 V DC sensor and load circuits, channel wiring and output-current limits against Section 8.5 of the Siemens ET 200L manual.

What details should accompany an order for 6ES7133-1BL01-0XB0?＋

6ES7133-1BL01-0XB0 should be specified by its complete Siemens article number. Include the TB 32L terminal style, required quantity and the 16 DI/16 DO station configuration to identify the correct electronics block.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, TB 32L terminal style, quantity and 16-input/16-output requirements for availability and compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
6ES7133-1BL01-0XB0

Product information and support route for the exact Siemens article number 6ES7133-1BL01-0XB0.

Official Siemens PDF manual

Siemens' official ET 200L Distributed I/O Device manual covers the exact 6ES7133-1BL01-0XB0 article number in Section 8.5. It documents the 16 digital inputs and 16 digital outputs, 24 V DC rated load voltage and 0.5 A per output.

OPEN OFFICIAL MANUAL PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Siemens identifies 6ES7133-1BL01-0XB0 as an ET 200L electronics block with 16 digital inputs and 16 digital outputs. Inputs and loads are rated 24 V DC; output current is 0.5 A per channel.

MODEL IDENTIFICATION

Exact Siemens reference for 6ES7133-1BL01-0XB0

6ES7133-1BL01-0XB0 is the complete Siemens article number for the ET 200L 16 DI/16 DO electronics block. Inputs and loads are rated 24 V DC, with 0.5 A per output.

Siemens · BRAND
Siemens SIMATIC ET 200LDigital I/O Electronics Block
EXACT ARTICLE NUMBER

6ES7133-1BL01-0XB0

Use the complete article number 6ES7133-1BL01-0XB0 with the installed ET 200L station, TB 32L terminal-block style, 24 V DC load supply and 16-input/16-output wiring requirements when matching this product.

Product identification: Siemens SIMATIC ET 200L 16 DI/16 DO electronics block, 24 V DC rated input and load voltages, 0.5 A per output, article number 6ES7133-1BL01-0XB0.
APPLICATION AREAS

Application functions for 6ES7133-1BL01-0XB0

ET 200L Distributed I/OReading 24 V DC inputs and switching 24 V DC loads in an ET 200L station
Switch and Proximity InputsSiemens lists switches and proximity switches (BEROs) as suitable input devices
INDUSTRIAL AUTOMATION APPLICATIONS 6ES7133-1BL01-0XB0 ET 200L · 16 DI / 16 DO Digital I/O Block
DC Contactor ControlSiemens lists DC contactors among the suitable output loads
Indicator Light OutputsSiemens lists indicator lights among the suitable output loads
