The 1761-NET-ENI connects a DF1 full-duplex serial device to an Ethernet network for programming, controller messaging and SMTP email functions.
Бренд :
PLCномер части :
1761-NET-ENIМасса :
Verify from the exact module labelИзмерение :
Verify enclosure clearance from publication 1761-UM006Страна происхождения :
USAКод ТН ВЭД :
Ethernet Interface ModuleОписание :
The 1761-NET-ENI connects a DF1 full-duplex serial device to an Ethernet network for programming, controller messaging and SMTP email functions.Click “+” to expand more specifications.
Source: Official publication 1761-UM006 covers 1761-NET-ENI. Verify the nameplate, electrical configuration, wiring, firmware and saved project before replacement.
1761-NET-ENI connects a DF1 full-duplex serial controller or device to Ethernet for programming, controller messaging and supported email functions.
1761-NET-ENI combines an Ethernet interface with an RS-232 DF1 full-duplex connection, so both the network settings and serial parameters must match.
1761-NET-ENI Series C supports 10/100 Mbps Ethernet, while Series A and B use 10 Mbps, making the hardware series an important replacement check.
Before replacing 1761-NET-ENI, record the IP address, subnet and gateway settings, DF1 station parameters, firmware level, EDS revision and controller message configuration.
1761-NET-ENI should not be replaced by appearance alone because hardware series, Ethernet rate, DF1 settings, cable pinout, firmware and supported messaging functions can differ.
A 1761-NET-ENI inquiry should include clear nameplate photographs, hardware series, firmware, quantity, controller model, IP settings, DF1 configuration and cable details.
Official manufacturer-reference information for the 1761-NET-ENI Ethernet Interface Module.
Official publication 1761-UM006 covers identification, installation, wiring, configuration and operating requirements for this catalog variant.
OFFICIAL MANUALSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements on this page are limited to official publication 1761-UM006. No third-party product sources were used.
PLC is the product-family reference. 1761-NET-ENI must be matched to the complete nameplate, electrical configuration, I/O or processor arrangement, firmware, wiring and saved project.
Record the installed controller or base, expansion I/O, network design, firmware and adjacent equipment.

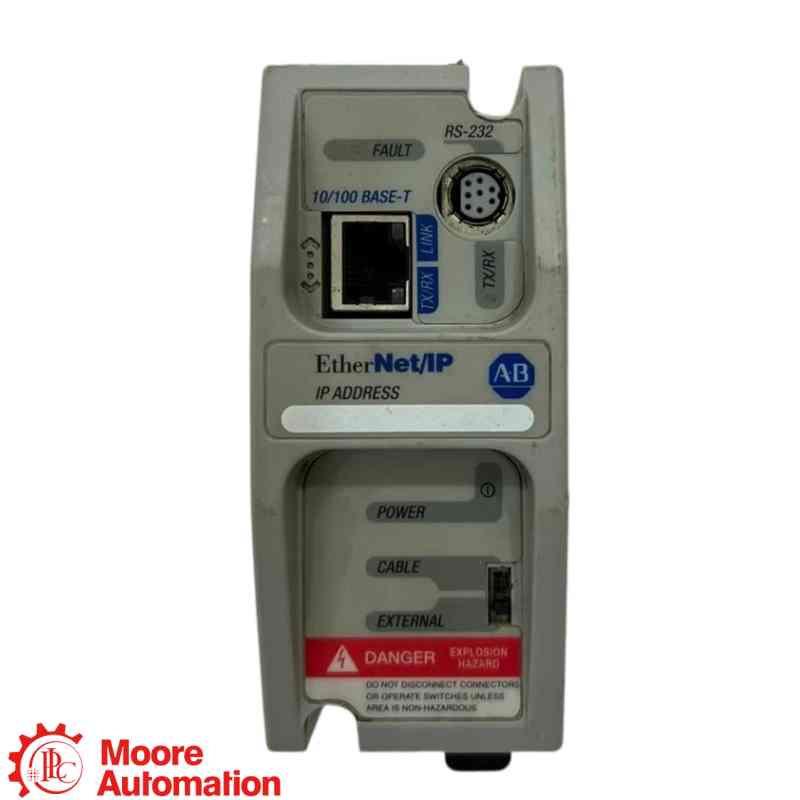

Photograph the Ethernet and RS-232 connections and record the cable pinout before removing the interface.
Verify the supply, grounding and Ethernet and serial cabling for the exact hardware series before energizing.
Do not select a substitute until the hardware series, Ethernet rate, IP settings, DF1 parameters, firmware, EDS and controller messages are confirmed.
Match 1761-NET-ENI and its complete suffix to the full nameplate and installed-system documentation.
Create a recoverable copy of the controller project and record firmware, communication and I/O parameters before removal.
Record the network or serial protocol, addresses, cables, supply and I/O wiring used by the installed application.
Confirm catalog number, firmware, I/O or processor configuration, ports, power, wiring and project compatibility before commissioning.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
