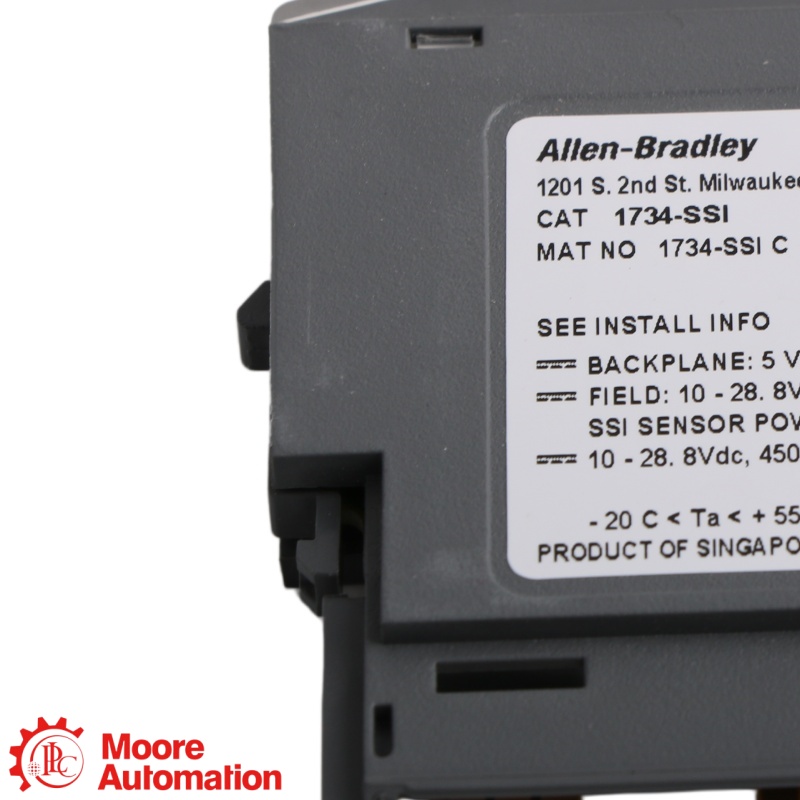

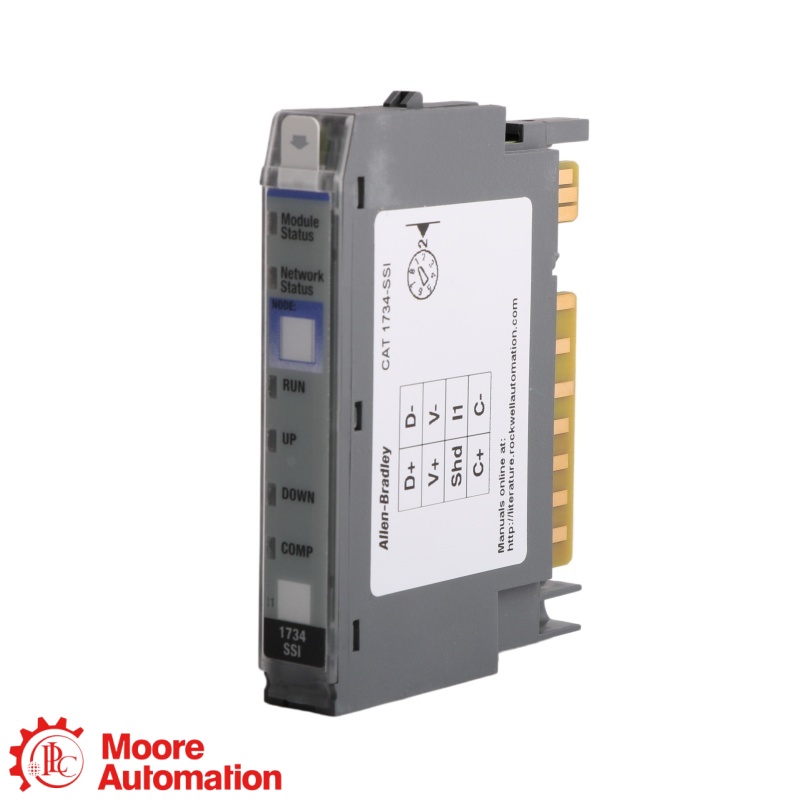

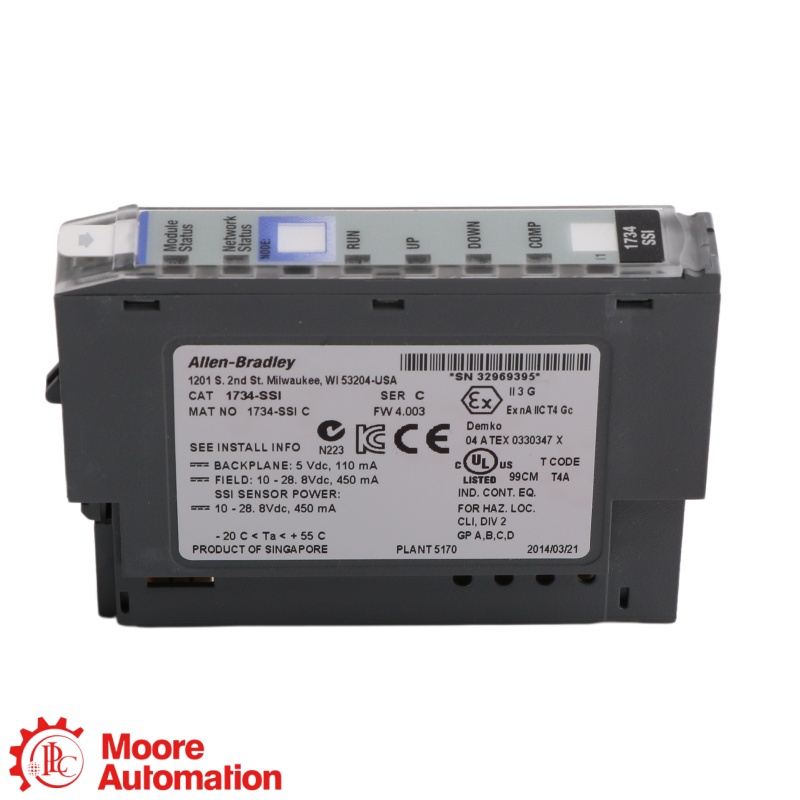

PLC 1734-SSI Synchronous Serial Interface Absolute Encoder Module
PLC 1734-SSI Synchronous Serial Interface Absolute Encoder Module
PLC 1734-SSI Synchronous Serial Interface Absolute Encoder Module

PLC 1734-SSI Synchronous Serial Interface Absolute Encoder Module

1734 SSI ENCODER MODULE

1734-SSI

The 1734-SSI is a synchronous serial interface module that collects position data from absolute encoders using the standard SSI protocol.

INTERFACERS-422
SSI CHANNELS1
TEMPERATURE−20…55 °C
POWER24V DC
MANUFACTUREROriginal Manufacturer Product
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE

  • Бренд :

    PLC

  • номер части :

    1734-SSI

  • Масса :

    0.032 kg

  • Измерение :

    56.6 × 12.1 × 77.5 mm

  • Страна происхождения :

    Singapore

  • Описание :

    Synchronous Serial Interface absolute encoder module
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION ● distributed I/O SSI ENCODER MODULE
1734 SSI ENCODER MODULE

1734-SSI

SSI ABSOLUTE ENCODER INTERFACE

1 SSI CHANNEL · RS-422 CLOCK AND DATA

PRODUCT ROLE
1734-SSI collects serial position data from industrial absolute-position encoders that use the standard SSI protocol. Its clock and data signals use an RS-422 physical interface, and the module installs in a compatible 1734 terminal base.
ORDER CHECK
For 1734-SSI, confirm the exact catalog number, encoder protocol, SSI data rate, cable length, terminal base and field-power requirements before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 1734-SSI order number is structured

1734
Bulletin family1734 distributed I/O family
SSI
Module codeSynchronous serial interface
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

1734-SSI ↗
General Information −
Catalog number1734-SSI
Product typeSynchronous Serial Interface absolute encoder module
SSI channels1
Encoder compatibilityAbsolute encoders supporting standard SSI protocol
Clock and data interfaceRS-422 differential pairs
SSI Data and Functions ＋
Selectable data rates125 kHz, 250 kHz, 500 kHz, 1 MHz, 2 MHz
Bits per word2…31, software selectable
SSI word length4 bytes (32 bits)
Supported codingGray or binary, with Gray-to-binary conversion
Electrical and Installation ＋
SSI sensor power450 mA, 10…28.8V DC
POINTBus current110 mA at 5V DC
Power dissipation0.94 W
Compatible terminal bases1734-TB, 1734-TBS, 1734-TOP, 1734-TOPS
Physical and Environmental ＋
Dimensions (H × W × D)56.6 × 12.1 × 77.5 mm
Weight0.032 kg
Operating temperature−20…55 °C (−4…131 °F)
Storage temperature−40…85 °C (−40…185 °F)
Documentation ＋
Installation instructions1734-IN581
User manual1734-UM007
Country of originSingapore

Source: official publication 1734-IN581H-EN-E and the official 1734-SSI product page. Values apply under the documented conditions.

FAQ

Questions Buyers Ask Most

What is 1734-SSI used for?＋

1734-SSI collects serial position data from industrial absolute-position encoders that use the standard SSI protocol.

How many SSI channels does 1734-SSI provide?＋

1734-SSI provides one SSI channel for an absolute encoder that supports the standard SSI protocol.

Which data rates are available for 1734-SSI?＋

1734-SSI supports software-selectable SSI data rates of 125 kHz, 250 kHz, 500 kHz, 1 MHz and 2 MHz.

Which terminal bases support 1734-SSI?＋

1734-SSI installs in a 1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS wiring-base assembly.

Which official documents cover 1734-SSI?＋

1734-SSI is covered by installation instructions 1734-IN581 and user manual 1734-UM007.

What should be checked before ordering 1734-SSI?＋

For 1734-SSI, confirm the encoder protocol, SSI data rate, cable length, terminal base and field-power requirements before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
1734-SSI

Official documentation for the 1734-SSI synchronous serial interface absolute encoder module.

1734-SSI Synchronous Serial Interface Module

Official publication 1734-IN581 covering installation, wiring, specifications and safety information for 1734-SSI and 1734-SSIK.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are based on official publication 1734-IN581 and the official 1734-SSI product page.

1734 SSI MODULE RELATIONSHIP

How 1734-SSI Fits into the 1734 Distributed I/O Family

1734 is the distributed I/O family. 1734-SSI is the specialty module that collects position data from industrial absolute encoders through the standard SSI protocol.

PLATFORM1734 Distributed I/OModular I/O architecture
MODULE FAMILY1734 Distributed I/OModular I/O architecture
EXACT MODEL1734-SSISSI absolute encoder interface
Selection note: Match the encoder protocol, selectable data rate, cable length, terminal base and field-power requirements before replacement.
APPLICATION AREAS

Application mind map for 1734-SSI

Maintenance ReplacementReplace an SSI encoder interface after exact catalog-number and configuration verification
Spare-Part PlanningHold a model-matched SSI interface module for planned distributed I/O maintenance
APPLICATION CENTER 1734-SSI SSI absolute encoder interface module
Compatibility ReviewCompare encoder protocol, data rate, cable length and terminal-base compatibility before shipment
Documentation CheckUse official publication 1734-IN581 and user manual 1734-UM007 for installation and configuration reference.
