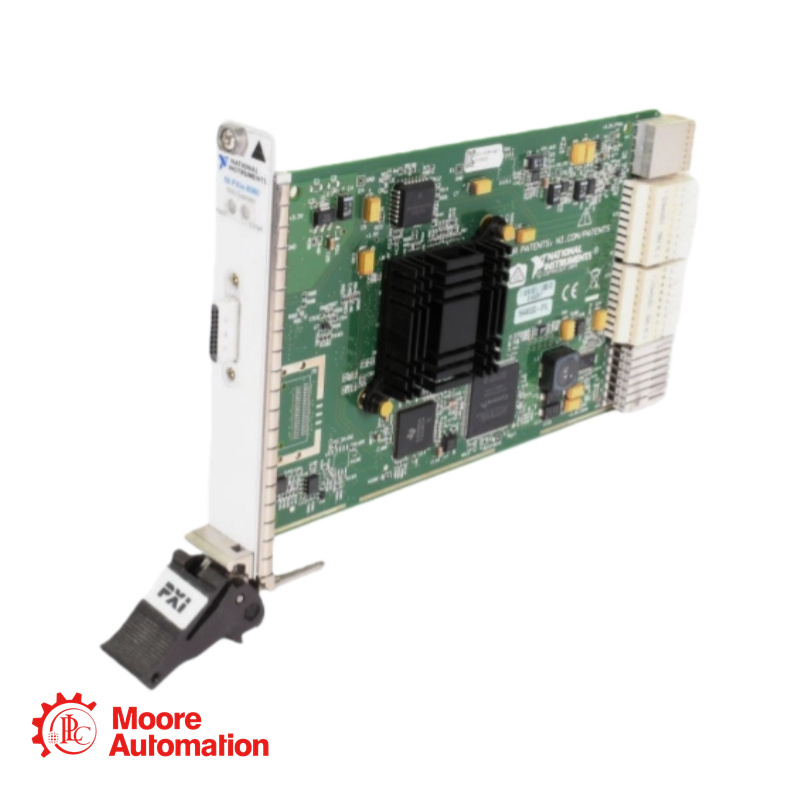

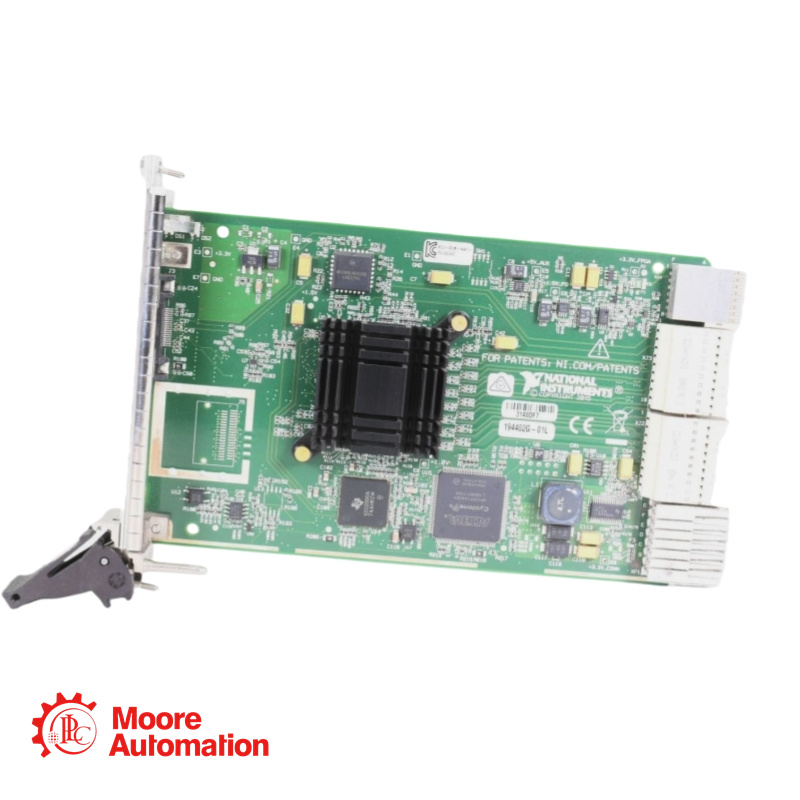

NI PXIE-8360 Remote Control Module

Description

Specification

The PXIe-8360 is a compact and lightweight PXI Express system slot controller designed for reliable integration into test and measurement systems, supporting high-speed communication via PXIe backplanes. It operates in a wide temperature range, withstands industrial shock and vibration, and complies with international safety and EMC standards for use in commercial and industrial environments. With low power consumption, robust environmental ratings, and certifications including CE and China RoHS, this module is suitable for demanding applications in aerospace, automotive, and research laboratories.

Dimensions: 10.0 × 16.0 cm (3.9 × 6.3 in.)
Weight: 0.17 kg (0.37 lb) typical
Slot Requirements: One PXI Express system slot
Compatibility: Fully compatible with PXI-5 Express Hardware Specification, Revision 1.0
Maximum Cable Length: 7 m
Power Requirements: +3.3 V: 2.5 A typical, 3 A maximum; +5 V: 10 µA typical, 3 mA maximum; +12 V: 750 µA typical, 1 mA maximum; +5 VAUX: 0.3 A typical, 0.4 A maximum; -12 V: 0 A
Operating Temperature Range: 0 to 55 °C (tested per IEC-60068-2-1/2, meets MIL-PRF-28800F Class 3 low/Class 2 high limits)
Operating Humidity Range: 10 to 90% RH, noncondensing (tested per IEC-60068-2-56)
Storage Temperature Range: -40 to 71 °C (tested per IEC-60068-2-1/2, meets MIL-PRF-28800F Class 3 limits)
Storage Humidity Range: 5 to 95% RH, noncondensing (tested per IEC-60068-2-56)
Maximum Altitude: 2,000 m (800 mbar) at 25 °C ambient
Pollution Degree: 2
Operating Shock: 30 g peak, half-sine, 11 ms pulse (tested per IEC-60068-2-27, MIL-PRF-28800F profile)
Random Vibration (Operating): 5 Hz to 500 Hz, 0.3 g rms
Random Vibration (Nonoperating): 5 Hz to 500 Hz, 2.4 g rms
