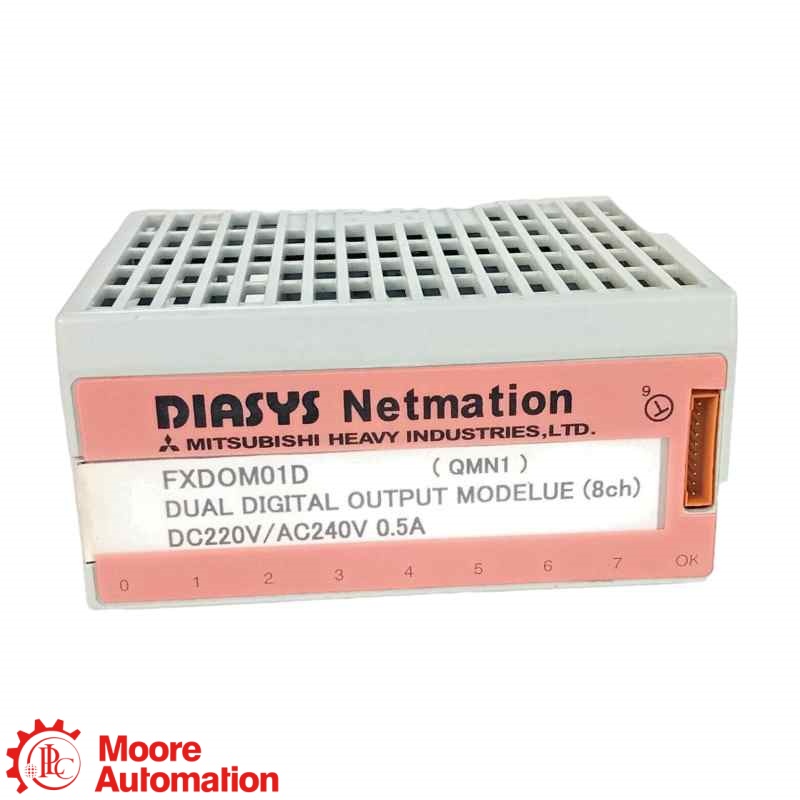

Mitsubishi Power FXDOM01 ControlNet FLEX I/O 8-Output DO Module

Mitsubishi Power FXDOM01 ControlNet FLEX I/O 8-Output DO Module

Mitsubishi Power FXDOM01 ControlNet FLEX I/O 8-Output DO Module

FXDOM01

The FXDOM01 is the Mitsubishi Power digital output module with 8 individually isolated outputs for ControlNet FLEX I/O installations.

MODULE TYPE8-output DO module
SYSTEM FAMILYDIASYS Netmation
OUTPUTS8 digital outputs
MODELFXDOM01
MANUFACTURERMitsubishi Power
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
MITSUBISHI POWER ● FXDOM01 8-OUTPUT DO MODULE
Mitsubishi Power FXDOM01

FXDOM01

CONTROLNET FLEX I/O · 8 DIGITAL OUTPUTS

DIASYS Netmation DO module · individually isolated outputs

MODULE ROLE
FXDOM01 is the Mitsubishi Power 8-output digital output module for ControlNet FLEX I/O installations.
CONFIGURATION NOTE
For FXDOM01, confirm the exact module label, compatible terminal base, output voltage and current, field wiring and installed control-system configuration before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Mitsubishi Power ↗
FXDOM01 DIGITAL OUTPUT MODULE

Engineering data at a glance

Click “+” to expand more specifications.

OUTPUTS8 digital outputs
ISOLATIONIndividual opto-isolation
INTERFACEControlNet FLEX I/O
DIMENSIONS75 D × 46 H × 94 W mm
Official Mitsubishi Power FXDOM01 reference data.
Official product identityThe official Mitsubishi Power data sheet identifies FXDOM01 as an 8-output DO module compatible with ControlNet FLEX I/O.
GENERAL INFORMATION−
ManufacturerMitsubishi Power
ModelFXDOM01
Product typeDigital output module
Network / I/O platformControlNet FLEX I/O
Number of outputs8
IsolationIndividual opto-isolation
Output contactMOSFET N.O. PhotoMOS relay
Output leakage currentMaximum 10 μA
Output ON resistanceMaximum 3.2 Ω
Compatible terminal bases1794-TB3/TB3S; 1794-TBN/TBNF
Output Circuit and Terminal Bases＋
Voltage with 1794-TB3/TB3SDC 120 V / AC 120 V, 0.5 A
Voltage with 1794-TBN/TBNFDC 220 V / AC 230 V, 0.5 A
Contact and isolationMOSFET N.O. PhotoMOS relay; individual opto-isolation
Diagnostics and Power＋
Self-diagnostic functionsWatchdog timer; power supply voltage low; bus time-out
Indicators1 status LED (green normal / red abnormal) and 8 output LEDs (yellow on / off)
Module power supplyDC 24 V ±10%, less than 40 mA
FLEX BUS powerDC 5 V, less than 80 mA
Dielectric strengthAC 1500 V between output terminal and FG and between output channels (1 min.)
Dimensions and Environment＋
Official FXDOM01 specifications: 75 mm D × 46 mm H × 94 mm W; operating 0 to 55 °C at 35 to 95% RH without condensation; storage -10 to 70 °C at less than 80% RH; shock 15 G and vibration 2 G at 10 to 500 Hz.
FAQ

Questions Buyers Ask Most

What type of product is FXDOM01?＋

FXDOM01 is a Mitsubishi Power 8-output digital output module for ControlNet FLEX I/O.

How many digital outputs does FXDOM01?＋

FXDOM01 provides 8 digital outputs.

What contact and isolation technology does FXDOM01 ?＋

FXDOM01 uses MOSFET normally-open PhotoMOS relay contacts with individual opto-isolation.

Which output voltage and contact ratings apply to FXDOM01?＋

FXDOM01 supports DC 120 V / AC 120 V at 0.5 A with 1794-TB3, and DC 220 V / AC 230 V at 0.5 A with 1794-TBN.

Which self-diagnostic functions are built into FXDOM01 ?＋

FXDOM01 provides watchdog-timer, low-power-supply-voltage and bus-time-out diagnostics.

Which terminal bases are compatible with FXDOM01?＋

FXDOM01 supports 1794-TB3/TB3S and 1794-TBN/TBNF terminal bases.

What should be checked before ordering FXDOM01?＋

FXDOM01 inquiries should include the exact model, terminal-base type, output voltage and current, field wiring and installed control-system configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete FXDOM01 model, terminal-base type, output ratings, field wiring and installed system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Official Manufacturer Documentation for
FXDOM01

The official Mitsubishi Power FXDOM01 data sheet identifies an 8-output DO module compatible with ControlNet FLEX I/O and publishes its output, isolation, power, environmental and dimensional specifications.

Mitsubishi Power FXDOM01

The official FXDOM01 data sheet specifies 8 individually opto-isolated outputs, MOSFET normally-open PhotoMOS relay contacts and compatible 1794 terminal bases.

OPEN OFFICIAL FXDOM01 DATA SHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Official Mitsubishi Power documentation identifies FXDOM01 as an 8-output DO module for ControlNet FLEX I/O.

MODEL IDENTIFICATION

How FXDOM01 Is Identified in Official Documentation

Mitsubishi Power identifies the product line; FXDOM01 is the exact published model designation; and DO module is the published product type with 8 digital outputs.

Mitsubishi Power · PRODUCT LINE
FXDOM01 8-output digital output moduleControlNet FLEX I/O · PRODUCT RELATIONSHIP
EXACT MODEL

FXDOM01

The official Mitsubishi Power data sheet identifies FXDOM01 as the exact model for this 8-output DO module.

PRODUCT TYPE

DO module · 8 digital outputs

Eight individually opto-isolated digital output channels use MOSFET normally-open PhotoMOS relay contacts.

INTERFACE

ControlNet FLEX I/O

The official sheet states compatibility with FLEX I/O and ControlNet LAN.

Compatibility check: confirm the exact FXDOM01 label, compatible terminal base, output voltage and current, field wiring, power supply and installed control-system configuration.
APPLICATION AREAS

Application areas for FXDOM01

DIASYS Netmation Output ControlProvides eight discrete output channels for installed control-system applications
ControlNet FLEX I/O InstallationsSupports ControlNet LAN-compatible FLEX I/O output stations
APPLICATION CENTERFXDOM018-output DO module · individual opto-isolation
Field Device SwitchingUses normally-open PhotoMOS relay outputs for compatible field circuits
Installed Module ReplacementSupports exact-model maintenance replacement after terminal-base, rating and wiring verification
