ИКС ТРИПЛЕКС

 /ICS Triplex T8801 Trusted 40-Channel 24 Vdc Digital Input FTA

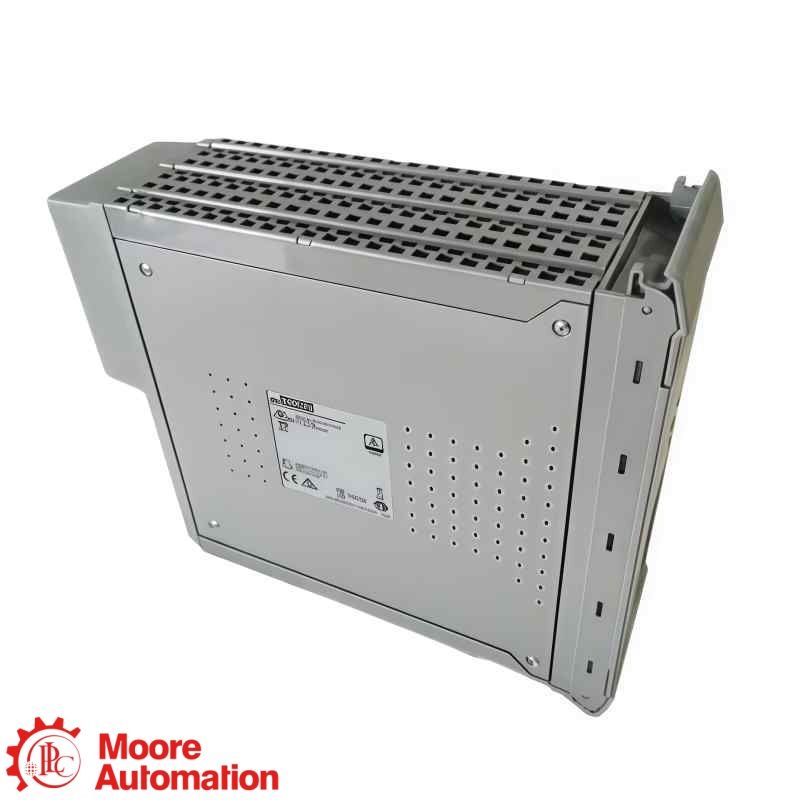

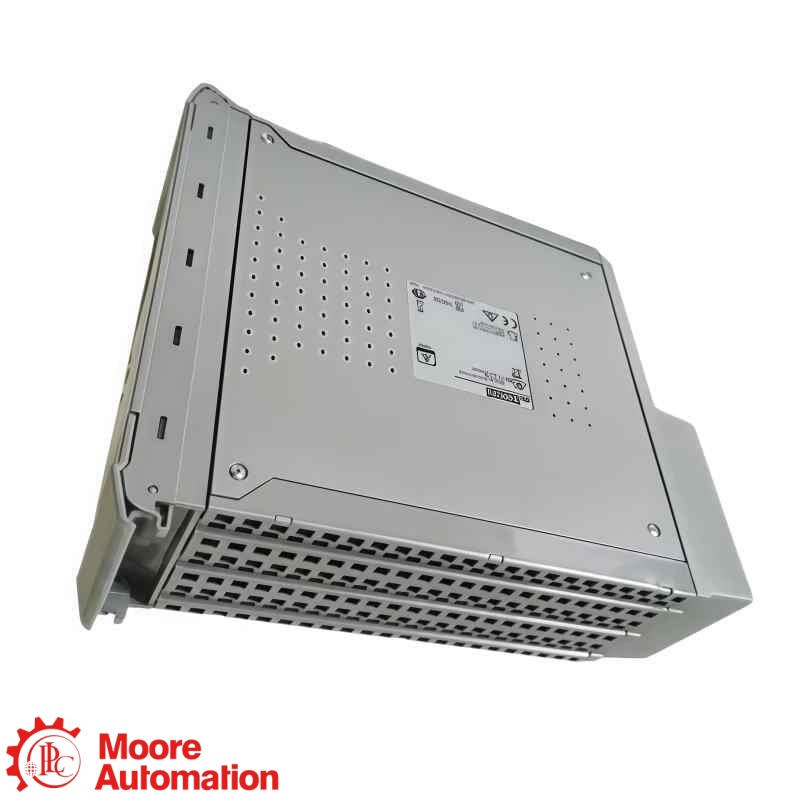

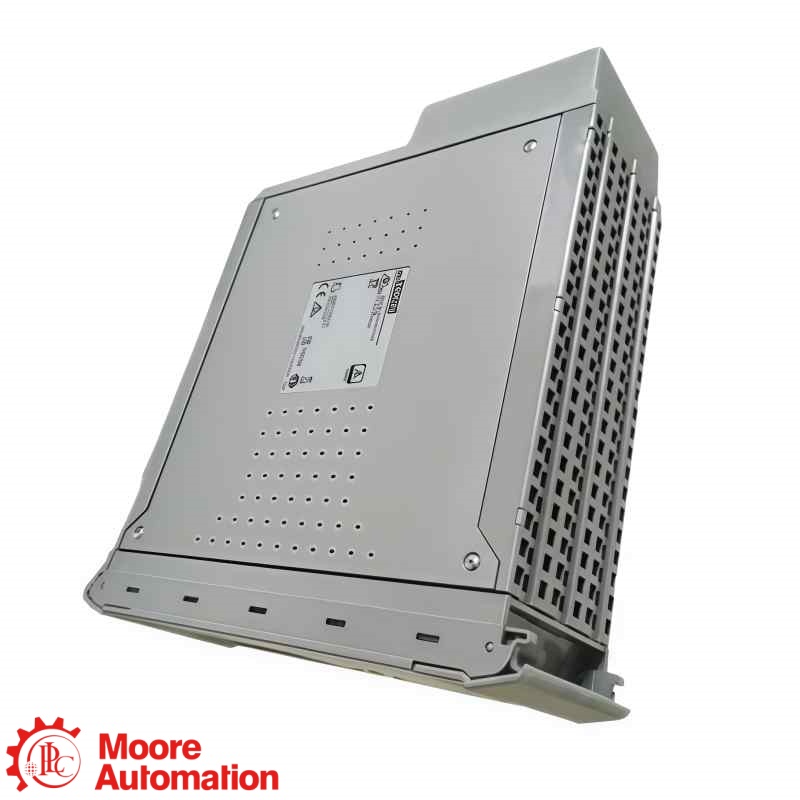

ICS Triplex T8801 Trusted 40-Channel 24 Vdc Digital Input FTA
ICS Triplex T8801 Trusted 40-Channel 24 Vdc Digital Input FTA
ICS Triplex T8801 Trusted 40-Channel 24 Vdc Digital Input FTA

ICS Triplex T8801 Trusted 40-Channel 24 Vdc Digital Input FTA

ICS TRIPLEX TRUSTED SYSTEM · DIGITAL INPUT FTA

T8801

The T8801 is a Trusted 40-Channel 24 Vdc Digital Input Field Termination Assembly that interfaces non-incendive field devices in hazardous areas with the T8403 input module.

PRODUCT TYPETRUSTED 40-CHANNEL 24 VDC DIGITAL INPUT FTA NON-INCENDIVE
PLATFORMTrusted 8000 I/O System
CONFIGURATION18 Vdc to 32 Vdc (not 48 Vdc)
APPLICATION40-Channel Digital Input
MANUFACTURERICS Triplex / Rockwell Automation
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ICS Triplex ● TRUSTED 40-CHANNEL 24 VDC DIGITAL INPUT FTA NON-INCENDIVE
ICS TRIPLEX TRUSTED SYSTEM

T8801

TRUSTED 40-CHANNEL 24 VDC DIGITAL INPUT FTA NON-INCENDIVE

TRUSTED SYSTEM · 40 input channels · non-incendive

MODULE ROLE
T8801 is the non-incendive field termination interface between digital field devices in hazardous areas and the Trusted T8403 TMR 24 Vdc Digital Input Module.
CONFIGURATION NOTE
For T8801, confirm the T8403 module, dual 24 Vdc supplies, 2-wire field connections, DIN-rail mounting and hazardous-area wiring requirements before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Rockwell Automation PD-T8801 ↗
T8801 TRUSTED 40-CHANNEL 24 VDC DIGITAL INPUT FTA NON-INCENDIVE

Engineering data at a glance

Click “+” to expand more specifications.

MODELT8801
PLATFORMTrusted 8000 I/O System
CONFIGURATION18 Vdc to 32 Vdc (not 48 Vdc)
APPLICATIONNon-Incendive Digital Inputs
Rockwell Automation Publication PD-T8801 identifies T8801 as the Trusted 40 Channel 24 Vdc Digital Input FTA Non-Incendive for use with T8403.
Official product verification Verify the complete model T8801, T8403 module, dual 24 Vdc supplies, field wiring, DIN-rail mounting and hazardous-area requirements before ordering.
GENERAL INFORMATION −
BrandICS Triplex / Rockwell Automation
Part numberT8801
Product typeTrusted 40-Channel 24 Vdc Digital Input FTA Non-Incendive
Product familyTrusted 8000 I/O System
System roleField termination interface for the T8403 TMR 24 Vdc Digital Input Module
PlatformTrusted 8000 I/O System
FIELD TERMINATION CONFIGURATION ＋
Input channels40
Field connections2-wire, per channel
Module compatibilityTrusted T8403 24 Vdc Digital Input Module
ELECTRICAL & PHYSICAL DATA ＋
Voltage range18 Vdc to 32 Vdc (not 48 Vdc)
Maximum normal output current12 mA per field supply
Operating temperature0 °C to +60 °C
DIN-rail mountingTS32 or TS35, horizontal or vertical
Dimensions / weight111 x 335 x 51 mm / 900 g
DOCUMENTATION & ORDER CHECK ＋
Reference: Verify the complete model T8801, T8403 module, dual 24 Vdc supplies, field wiring, DIN-rail mounting and hazardous-area requirements before ordering.
Source: Rockwell Automation Publication PD-T8801, Issue 8 identifies T8801 as the Trusted 40-Channel 24 Vdc Digital Input FTA Non-Incendive variant.
FAQ

Questions Buyers Ask Most

What is T8801 used for?＋

T8801 is a 40-channel non-incendive Digital Input Field Termination Assembly for the Trusted T8403 TMR 24 Vdc Digital Input Module.

How many input channels does T8801 provide?＋

T8801 provides termination for a maximum of 40 digital input channels using industry-standard 2-wire field connections.

Does T8801 interface with the T8403 input module?＋

T8801 connects field wiring to the T8403 module through the documented Trusted I/O companion or SmartSlot cable arrangement.

Which field devices can be connected to T8801?＋

T8801 is intended for non-incendive field devices in hazardous areas, subject to the official current, capacitance and inductance limits.

What should be checked before replacing T8801?＋

T8801 replacement requires confirmation of T8403 compatibility, dual 24 Vdc feeds, per-channel field wiring, DIN-rail mounting and area classification.

What official manual covers T8801?＋

T8801 is covered by Rockwell Automation Publication PD-T8801, Trusted 40 Channel 24 Vdc Digital Input FTA Non-Incendive.

What information should be supplied when ordering T8801?＋

T8801 orders should include the exact catalog number, quantity, T8403 module details, field-device type, power arrangement and hazardous-area requirements.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
T8801

Official Rockwell Automation documentation for Trusted T8801.

Trusted 8000 I/O System

Rockwell Automation Publication PD-T8801, Issue 8 describes T8801 as the 40-channel 24 Vdc Digital Input FTA for non-incendive field devices and the Trusted T8403 module.

OFFICIAL MANUAL ↗

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page follow Rockwell Automation Publication PD-T8801, Issue 8 for the Trusted T8801 Field Termination Assembly.

TRUSTED DIGITAL INPUT FTA RELATIONSHIP

How T8801 Fits into the Trusted Digital Input System

Rockwell Automation publishes the Trusted product documentation; T8801 is the 40-channel non-incendive field termination assembly; and the assembly provides non-incendive field termination for the T8403 input module.

ICS Triplex · BRAND
Trusted 8000 I/O Systemtrusted 40-channel 24 Vdc digital input FTA non-incendive
SYSTEM ROLE

trusted 40-channel 24 Vdc digital input FTA non-incendive

Terminates up to 40 non-incendive digital input channels and connects them to a Trusted T8403 module.

NETWORK / POWER

18 to 32 Vdc · 40 channels · 2-wire field connections

Confirm dual 24 Vdc feeds, T8403 compatibility, cable type and hazardous-area wiring limits.

ORDER DATA

T8801 · Trusted 40-Channel 24 Vdc Digital Input FTA Non-Incendive

Do not substitute another FTA without checking T8403 compatibility, channel count, field-loop limits, power feeds and hazardous-area requirements.

System relationship: verify the exact FTA, T8403 module, dual power feeds, cable arrangement, field devices and hazardous-area limits.
APPLICATION AREAS

Application map for T8801

Non-Incendive Digital InputsTerminate up to 40 non-incendive field-device signals
T8403 Module InterfaceConnect field inputs to the Trusted TMR 24 Vdc Digital Input Module
APPLICATION CENTER T8801 T8801 · Trusted 40-Channel 24 Vdc Digital Input FTA Non-Incendive
DIN-Rail InstallationMount horizontally or vertically on TS32 or TS35 DIN rail
Replacement VerificationCheck the exact T8801 FTA, T8403 module, field wiring, power feeds and area classification before replacement.
