A CENTUM spare-parts request often begins with a familiar model name and a cabinet photo. That is useful, but it is not enough to release a purchase order. Engineers and buyers need to establish whether the requirement is for a complete node, an installed module, a terminal assembly or a revision-specific replacement. This guide converts that identification work into a practical RFQ process for brownfield process plants.
|
The original module is discontinued
Identify the installed system, complete suffix and approved replacement path before comparing offers. |
The installed module has failed
Record the slot, paired module, alarms, LEDs, terminal hardware and configuration backup. |
|
The part number is incomplete
Send photographs of the front label, side label, connectors and surrounding rack—not only a typed model. |
A compatible replacement is required
Treat a successor as an engineering proposal, not as proof of drop-in interchangeability. |
|
The system is stopped and the order is urgent
Provide quantity, destination, Incoterm and required delivery date with the technical evidence. |
The hardware revision is uncertain
Compare style, suffix, firmware, terminal assignment and project documentation before approval. |
Yokogawa part numbers describe more than a product family. The complete alphanumeric code can define power-input arrangement, redundancy, terminal style, environmental option and the hardware generation expected by the installed CENTUM release. Two modules with similar front panels may therefore have different electrical or mechanical interfaces.
Before an alternative is approved, record the manufacturer, base model, suffix, style code and revision exactly as printed on the nameplate. Also capture the rack location, connected terminal board and cable. For a live system, the safest evidence package normally includes one straight-on label photograph and one wider photograph showing the installed slot and adjacent modules.
A CENTUM architecture should be read in three levels: the Field Control Station, the ESB bus node assembly and the FIO modules connected to process signals. An ANB10D is an ESB Bus Node Unit—not another name for an individual I/O card. Likewise, an ASD533 output module is installed within the FIO layer and should not be assumed to be part of the basic node hardware unless the quotation states it explicitly.
Reference architecture: Field Control Station → redundant ESB node → FIO modules → field instruments.
|
01 · Control station
CENTUM system, FCS model, software release and network Defines the compatibility envelope |
02 · Node assembly
ANB10S or ANB10D with power and ESB interfaces Quote every core module separately |
03 · Field I/O
ASD533 or other analogue/digital FIO module Confirm signal and terminal hardware |

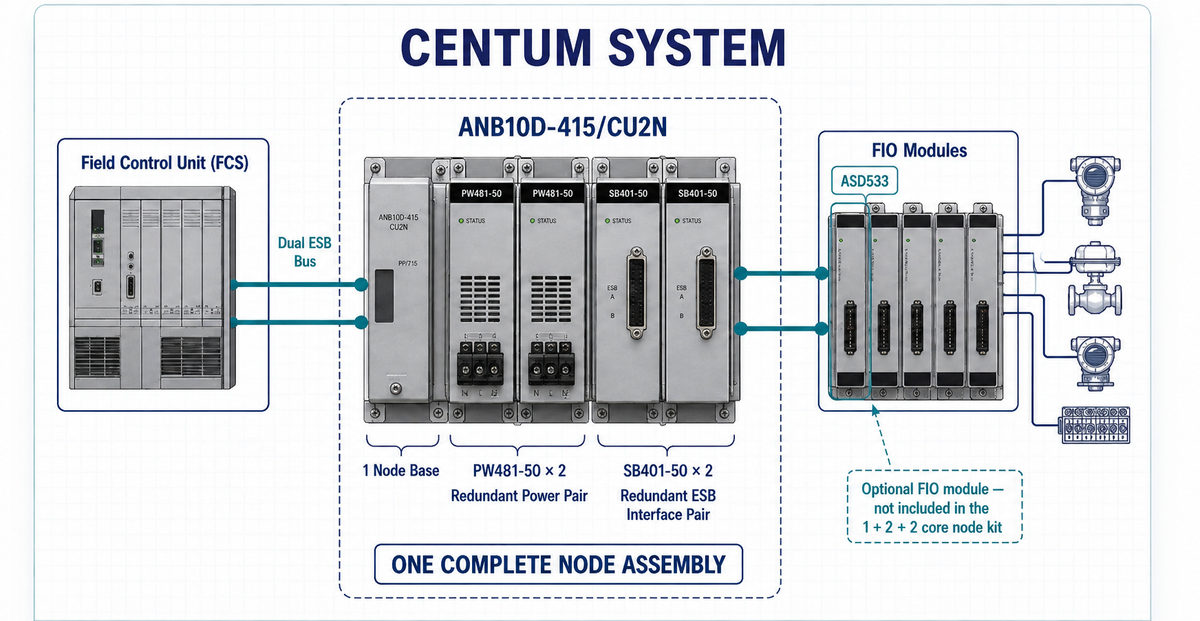

For the illustrated Yokogawa ANB10D-415/CU2N ESB Bus Node Unit, the core assembly is commonly described as one node base, two PW481-50 power supplies and two SB401-50 ESB Bus Interface Slave Modules. The paired arrangement supports the illustrated redundant power and ESB interface architecture. Optional FIO cards are application hardware and must be counted from the actual rack.
| COMPLETE NODE RELATIONSHIP | DUAL-REDUNDANT ESB NODE |
|
ANB10D-415/CU2N
1 unit |
+ |
PW481-50
2 units |
+ |
SB401-50
2 units |
The ASD533 is an eight-channel isolated digital output module with a built-in barrier. Terminal arrangements may include ATSD3S-0 hardware for the /SD3S0 option or a dual-redundant terminal arrangement for /SD3D0. Those suffix details affect what can be installed without redesigning the termination or cabinet wiring.
The word “replacement” can mean an identical spare, an approved later revision, a functional successor or a migration project. Procurement should record which level is acceptable before requesting prices. This prevents a lower-cost but unusable substitute from reaching the site.
|
Situation
|
Required review
|
Recommended procurement action
|
|---|---|---|
|
Same full part number
|
Condition, revision, firmware and test status
|
Request label photos and a pre-shipment functional check.
|
|
Same model, different revision
|
Release notes, style code, terminal and installed CENTUM version
|
Obtain plant engineering approval before PO release.
|
|
Later successor model
|
Rack fit, connector pinout, database, network and power requirements
|
Treat as an engineered change, not a visual match.
|
|
No direct replacement
|
Loop scope, outage window, drawings and migration risk
|
Plan a controlled retrofit with FAT, loop checks and commissioning ownership.
|
|
□ System family and FCS model recorded
|
□ Complete model, suffix, option and style copied
|
|
□ Front and side nameplates photographed
|
□ Rack, slot and redundant partner identified
|
|
□ Signal type, channel count and field voltage checked
|
□ Terminal block, cable and connector identified
|
|
□ Firmware or project release documented
|
□ Configuration and parameter backup available
|
The following Yokogawa automation parts are available for compatibility review. Open any card in a new tab and send Frida the installed label photo, required quantity and project date for a stock and lead-time check.
|
|
Frida supports end users, distributors, contractors and system integrators with hard-to-find industrial automation spare parts. She helps plants maintain legacy systems and enables project partners to submit stronger RFQs with verified part numbers, stock, lead times, technical documents, product photos and pre-shipment inspection—supporting every step from enquiry to reliable delivery.
|
|
|
Moore Automation is an independent supplier. Yokogawa product names and part numbers are used for identification. Final compatibility must be confirmed against the installed hardware and project documentation.
