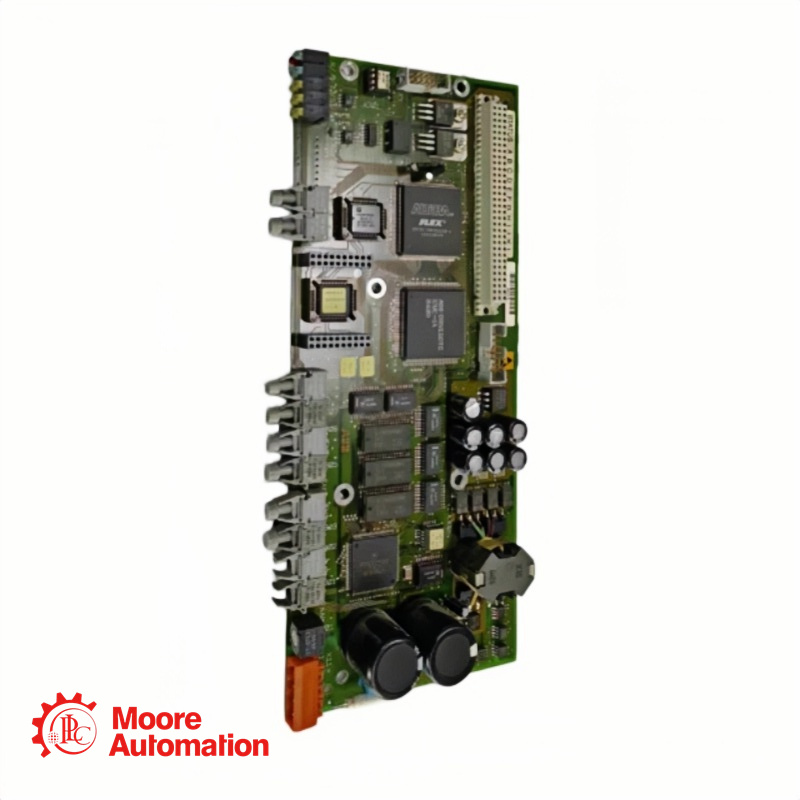

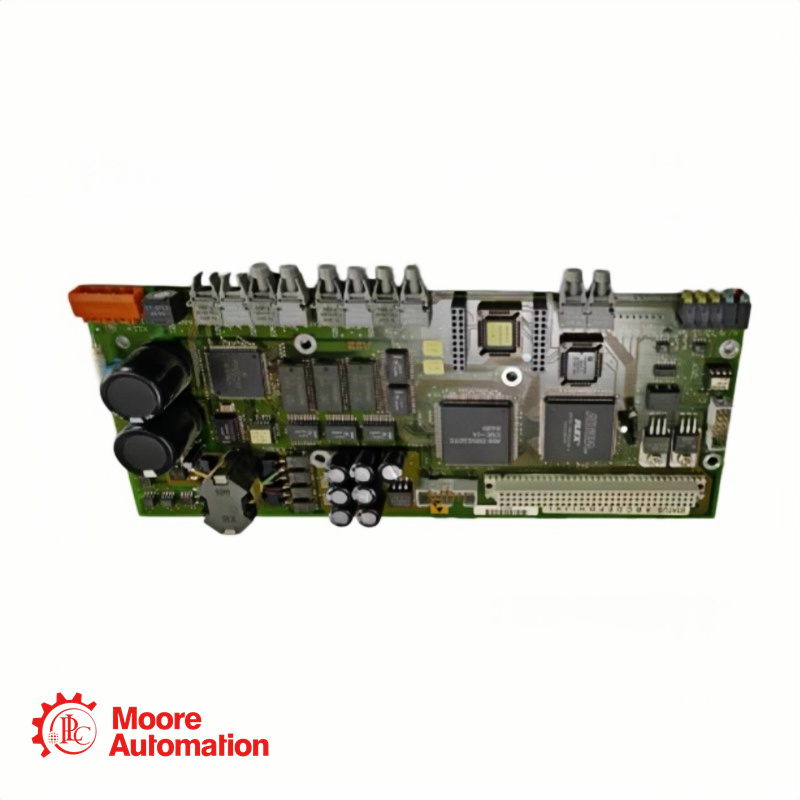

HIEE300931R0001 PPC381 AE Controller

The HIEE300931R0001 PPC381 AE is part of the AC 800PEC high-performance controller family. It is designed to handle the complex, real-time control algorithms required for static and brushless excitation systems in power plants.Role: It acts as the "brain" of the excitation system, managing voltage regulation (AVR), field current control, and communication with the plant's distributed control system (DCS).Architecture: It utilizes a multi-processor architecture to ensure simultaneous execution of fast control loops (typically <20ms response time) and background communication tasks.

Specifications of HIEE300931R0001 PPC381 AE

Product ID:HIEE300931R0001
Model Designation:PPC381 AE
Controller Platform:AC 800PEC Family
Application:UNITROL 5000 / 6000 Excitation Systems
Response Time:< 20 ms (Direct Excitation)
Redundancy:Supports single or double channel configurations
Communication: Ethernet, IEC 61850, or proprietary fieldbus

FAQ of HIEE300931R0001 PPC381 AE

Q: Can I swap a PPC381 AE without reconfiguration?
A: No. While the hardware is standardized, the card contains site-specific firmware and parameters. A software download/upload process using the Control Builder tool is required during replacement.
Q: How do I diagnose a "Link Fail" (LF) error on the system?
A: An "LF" error usually indicates a wiring issue or a failure in the internal self-diagnosis signal between the control card and peripheral modules.

Technical Notes

It features a multi-processor design to handle high-speed calculation loops (fast analog/digital I/O) and communication tasks simultaneously.
It is the primary controller for UNITROL 6000 systems, managing voltage regulation (AVR), field current control, and protection limiters.
