The HIMA H7506 is a bus terminal designed for installing a HIBUS-2 (RS 485) communication network.
Бренд :
Himaномер части :
H 7506Масса :
0.1 kgИзмерение :
11x4x5.5cmСтрана происхождения :
USAКод ТН ВЭД :
8537101190Описание :
Bus Terminal
Brand
HIMA
Part number
H7506
Origin
USA
Description
Bus Terminal
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Description of H7506

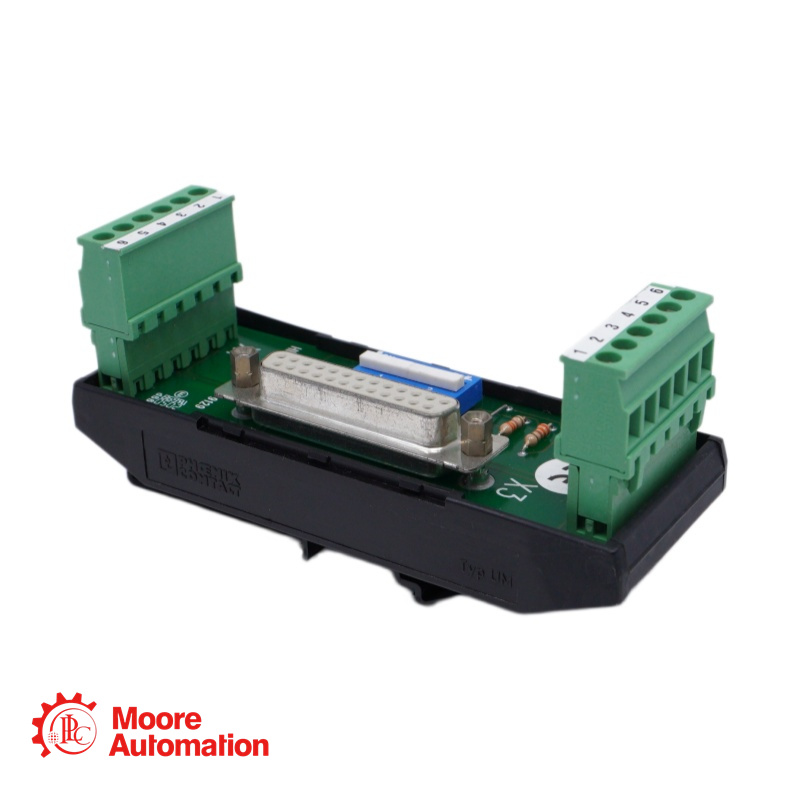

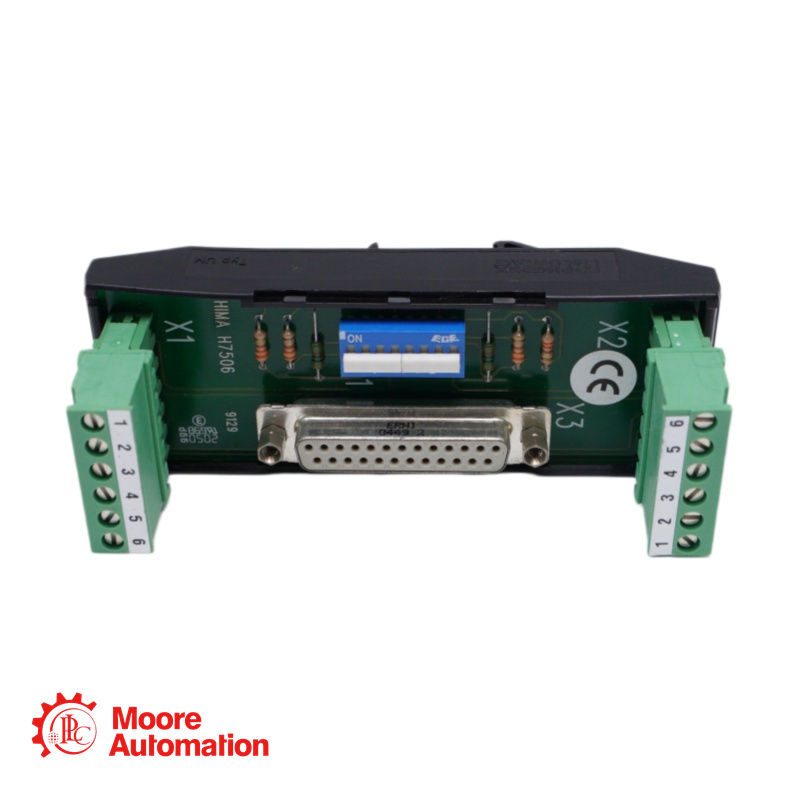

The HIMA H7506 is a bus terminal designed for installing a HIBUS-2 (RS 485) communication network. It features a 25-pin Mini-D socket for connecting single‑channel or redundant PES systems (H41q/H51q) using the BV 7040 and BV 7046 data cables. The two‑wire bus connections are made via two 6‑pole plug clamps. Two switches on the terminal allow the bus terminating resistors to be enabled at each end of the two‑wire bus.
Parameter
Type:Bus terminal for HIBUS‑2 (RS 485)
Connector type:1x 25‑pin Mini‑D socket
Cables compatible:BV 7040, BV 7046
Wiring connections:2x 6‑pole plug clamps
Wire cross-section:Up to 2.5 mm²
Termination:2 switches to enable/disable bus terminating resistors at each bus end
FAQ
What is the H7506 used for?
A: It is used as a bus terminal to connect HIMA PES (H41q/H51q) systems to a HIBUS‑2 (RS 485) network, for example with a programmer station (PADT) using a PC 485 ISA card.
Can both X2 and the Mini‑D socket be used simultaneously when the H7506 is at the end of the bus?
A: No. If the H7506 is placed at the end of the two‑wire bus, the X2 terminal block cannot be connected.
How are the bus terminating resistors activated?
A: Two switches on the H7506 allow the terminating resistors to be switched on or off at each end of the two‑wire bus as needed.
What rail profile is required for mounting?
A: The H7506 mounts on a top‑hat profile rail according to DIN 46277.
What wire size can be used with the 6‑pole clamps?
A: The clamps accept wires up to 2.5 mm².
Benefits
The product offers a number of benefits, including:
· Wide input voltage range
· High output current
· Overvoltage protection
· Undervoltage protection
· Short-circuit protection
· Safety approvals
· Compact and lightweight design
