 /GE Multilin MIVII3000E00HI00 MIV II Digital Voltage and Frequency Relay

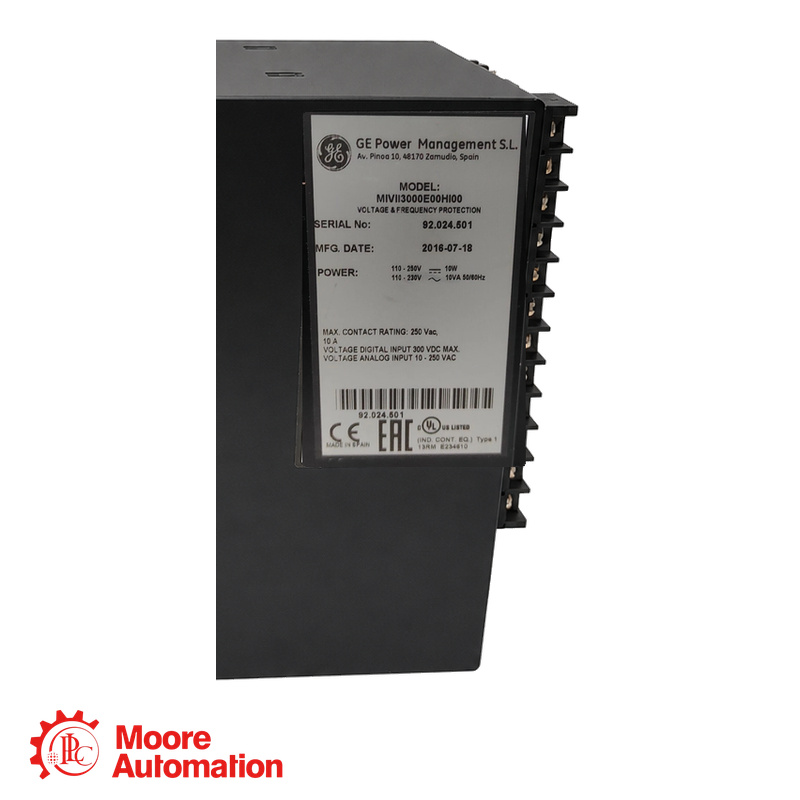

GE Multilin MIVII3000E00HI00 voltage frequency relay side view
GE Multilin MIVII3000E00HI00 relay detail view

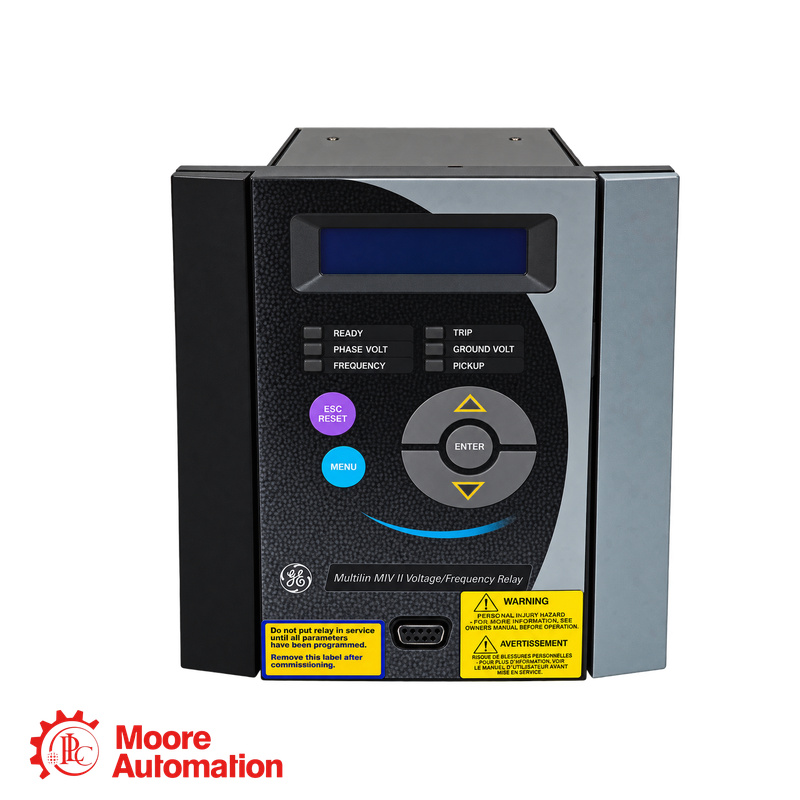

GE Multilin MIVII3000E00HI00 MIV II relay front view

GE Multilin MIVII3000E00HI00 MIV II Digital Voltage and Frequency Relay

MIV II · VOLTAGE & FREQUENCY RELAY

MIVII3000E00HI00

The MIVII3000E00HI00 is a GE Multilin MIV II digital relay that combines voltage and frequency protection for industrial and power-system applications.

PROTECTIONVoltage + Frequency
VOLTAGE RANGE10–250 V
POWER SUPPLYHI · AC/DC
COMMUNICATIONModbus RTU
MANUFACTURERGE Multilin · GE Vernova
CONDITION / WARRANTYOriginal New · One-Year Warranty
MANUFACTURING PROGRAMISO 9001 Registered
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE MULTILIN ↗● VERIFIED ORDER CODE
M II FAMILY · MIV II PROTECTION RELAY

MIVII3000E00HI00

MIV II 3000

Digital Voltage and Frequency Relay

PROTECTION ROLE
MIVII3000E00HI00 combines voltage and frequency protection. GE documents the MIV II 3000 with phase under/overvoltage, ground overvoltage, voltage unbalance, and two frequency elements.
ORDER-CODE NOTE
The published ordering guide identifies code 3 as voltage and frequency functions, range 0 as 10–250 V, language E as English, and power supply HI as the high range.
👩‍💼WANT THE BEST PRICE?FridaSales Leader 🏆
✉ EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Confirmed elements in MIVII3000E00HI00

MIV II
Relay family
3
Voltage + frequency
0
10–250 V range
E
English
HI
High-range supply
0
No coating
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

GE MULTILIN ↗
General Information −
BrandGE Multilin
Order codeMIVII3000E00HI00
Product typeDigital Voltage and Frequency Relay
Product familyM II Family · MIV II
Voltage functionsPhase under/overvoltage, ground overvoltage, voltage unbalance
Frequency functionsTwo over/underfrequency elements
Voltage range10–250 V
LanguageEnglish
Power supply110–250 Vdc or 110–230 Vac
Protection and Timing ＋
Voltage pickup range10.0–250.0 V in 0.1 V steps
Voltage time delay0–600 s in 0.01 s steps
Frequency pickup range42.0–67.5 Hz in 0.01 Hz steps
Frequency accuracy±10 mHz
Voltage level accuracy±3% across the complete range
Interface and Communications ＋
Display16 × 2 character LCD
Front / rear portsRS232 / RS485
ProtocolModbus RTU, 300–19,200 bps
Digital I/O2 inputs; 6 outputs, including trip and alarm
Configuration softwareEnerVista compatible
Monitoring and Recording ＋
Event recorder24 time-tagged events
Oscillography1 record × 24 cycles
Sampling rate8 samples per power-frequency cycle
TriggersProtection pickup/operation, digital input or communications command
Mechanical and Environment ＋
HousingStainless steel 304; 1/4 of a 19-inch rack; 4U
Protection degreeIP52
Operating temperature−20 °C to +60 °C
Storage temperature−40 °C to +80 °C
HumidityUp to 95%, non-condensing
Approximate net weight2.7 kg
Source: GE Multilin MIV II Digital Voltage and Frequency Relay brochure. Values apply under the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is MIVII3000E00HI00 used for?＋

MIVII3000E00HI00 provides combined voltage and frequency protection for applications including motors, generators, automatic transfer systems, lines and busbars.

Which protection functions are included in MIVII3000E00HI00?＋

The MIV II 3000 includes phase under/overvoltage, ground overvoltage, voltage unbalance, and two independently set over/underfrequency elements.

What does HI mean in MIVII3000E00HI00?＋

HI identifies the high-range power supply: 110–250 Vdc or 110–230 Vac, with the operating ranges stated in the official ordering guide.

What voltage range does MIVII3000E00HI00 use?＋

Order-code range 0 identifies the 10–250 V voltage range.

How does MIVII3000E00HI00 communicate?＋

The relay supports Modbus RTU through a front RS232 port and a rear RS485 port at rates up to 19,200 bps. It is also compatible with EnerVista software.

What should I provide for a quotation?＋

Send the complete order code, nameplate photo, quantity, destination and required delivery time to Frida. Product photos and video can be supplied after inquiry.

CONTACT PRODUCT SPECIALISTConfirm the exact relay configurationShare the full nameplate and application details with Frida.
✉ EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
OFFICIAL DATASHEET

GE Multilin MIV II Voltage/Frequency Protection System

Official manufacturer brochure covering MIV II 1000, 2000 and 3000 protection functions, technical data and ordering information.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Source: GE Multilin MIV II Digital Voltage and Frequency Relay brochure, published by GE Vernova Grid Solutions.
MIV II SYSTEM RELATIONSHIP

How MIVII3000E00HI00 fits into the GE Multilin M II family

GE Multilin ↗ is the manufacturer brand, M II is the relay family, MIV II is the voltage/frequency relay series, and MIVII3000E00HI00 is the complete catalog order code.

BRANDGE Multilin
→
FAMILYM II
→
SERIESMIV II
→
ORDER CODEMIVII3000E00HI00
APPLICATION AREAS

Voltage and frequency protection applications

Automatic Transfer SystemsVoltage and frequency supervision for transfer logic.
Generators and MotorsCombined under/overvoltage and frequency protection.
APPLICATION CENTERMIV II 3000 RelayVoltage + frequency protection
Lines and BusbarsSystem voltage, unbalance and frequency monitoring.
Protection and Control PanelsDrawout relay construction with serial communications.
