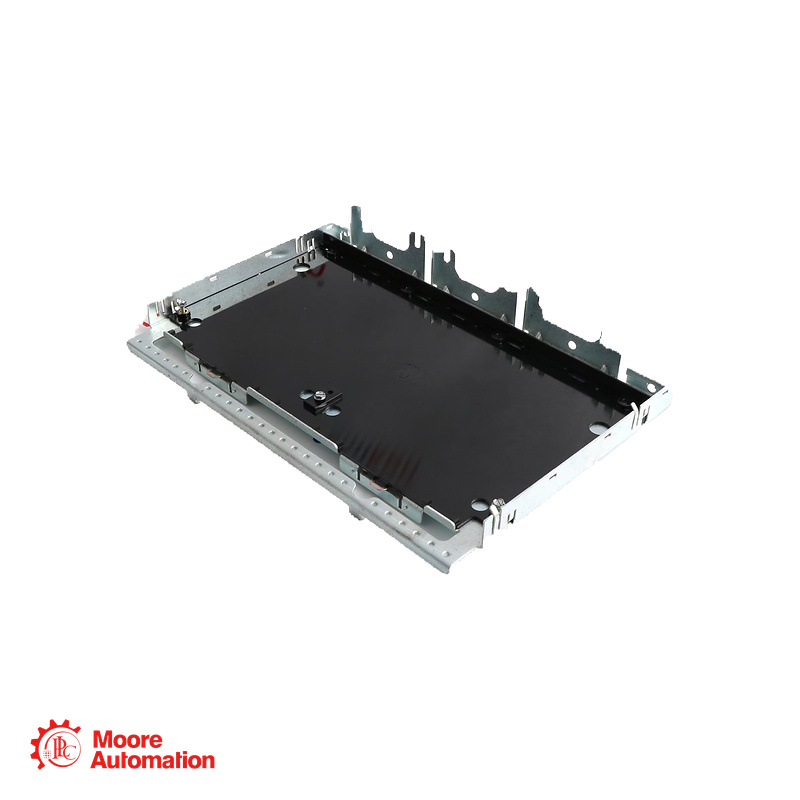

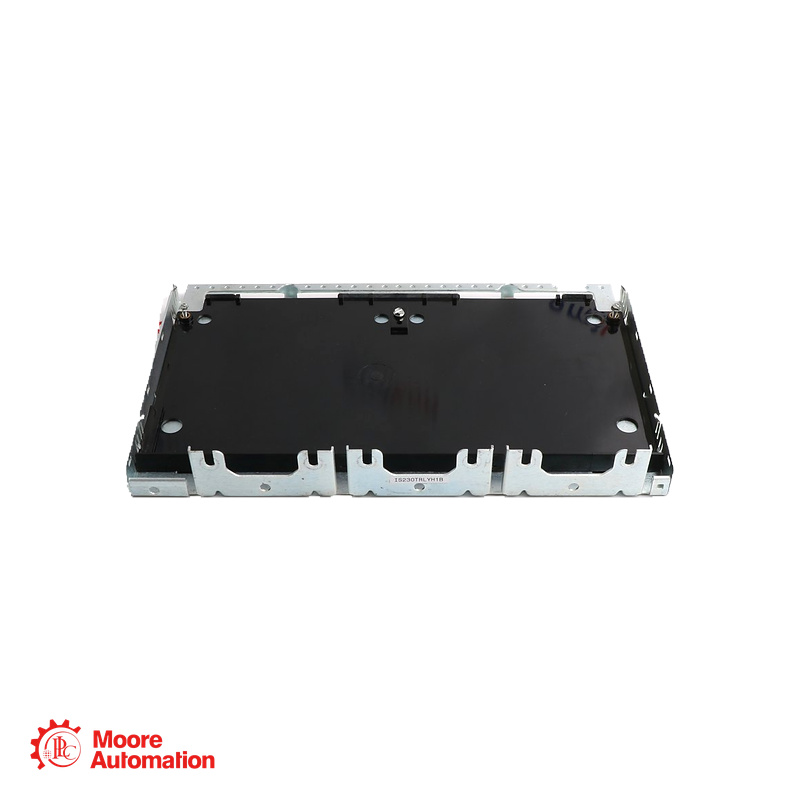

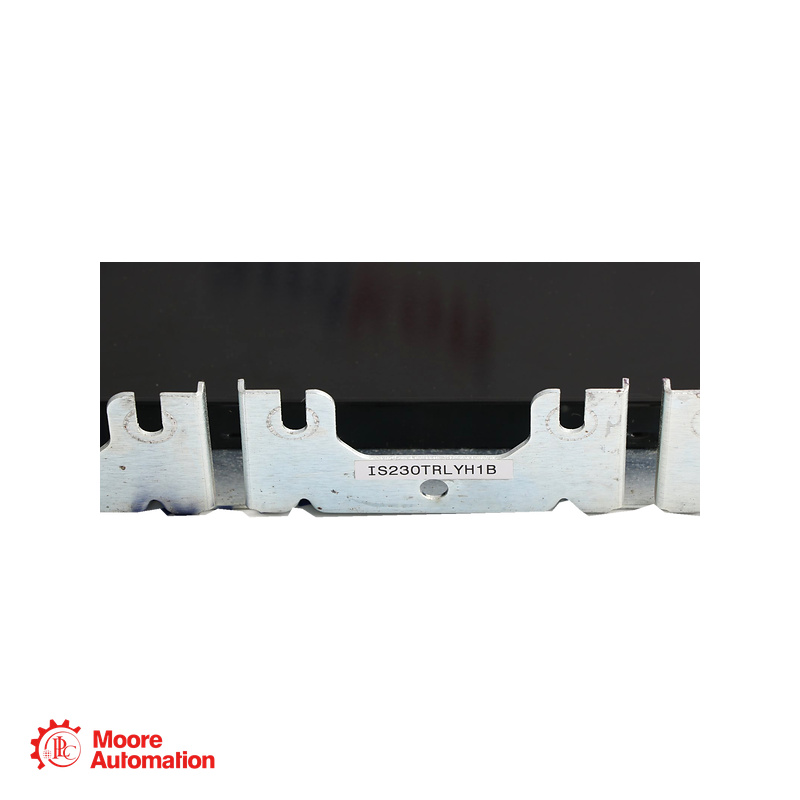

GE IS230TRLYH1B Mark VIe Relay Output DIN Rail Module
GE IS230TRLYH1B Mark VIe Relay Output DIN Rail Module
GE IS230TRLYH1B Mark VIe Relay Output DIN Rail Module

GE IS230TRLYH1B Mark VIe Relay Output DIN Rail Module

GE MARK VIE · TMR RELAY OUTPUT

IS230TRLYH1B

IS230TRLYH1B is a GE Mark VIe TMR relay-output assembly with three PDOA I/O packs and an IS200TRLYH1B terminal board. It provides 12 Form C relay outputs, coil sensing and two removable 24-position field terminal blocks.

PRODUCT TYPERELAY OUTPUT DIN RAIL MODULE
PLATFORMMark VIe
RELAY OUTPUTS12 Form C
I/O PACKS3 × PDOA
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● RELAY OUTPUT DIN RAIL MODULE
MARK VIE

IS230TRLYH1B

RELAY OUTPUT DIN RAIL MODULE

MARK VIE · TMR · THREE PDOA PACKS + TRLYH1B

MODULE ROLE
IS230TRLYH1B is a TMR relay-output DIN-rail assembly containing three PDOA packs and an IS200TRLYH1B terminal board.
LONG DESCRIPTION
IS230TRLYH1B provides 12 Form C relay circuits and coil-sensing diagnostics. Field wiring terminates on two removable 24-position barrier blocks, and the first six relay circuits support configurable solenoid interfaces.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS230TRLYH1B Reference Is Structured

IS
Issuing organizationGE, Salem, Virginia
2
Substance codeLegacy non-RoHS designation
30
Assembly levelCircuit assemblies mounted on a base
TRLY
Module functionRelay-output assembly
H
Technology codeSurface-mount components included
1
Assembly variantTRLYH1B coil-sensing arrangement
B
Compatibility versionBackward-compatibility version B
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS230TRLYH1B RELAY OUTPUT DIN RAIL MODULE

Engineering data at a glance

Click “+” to expand more specifications.

RELAY OUTPUTS12 Form C
I/O PACKS3 × PDOA
FIELD TERMINALS2 × 24
REDUNDANCYTMR
12 Form C outputs, three PDOA packs, relay coil sensing and 48 removable field terminal positions.
Relay assembly configuration Module IS230TRLYH1B contains TRLYH1B and three PDOA packs. The 12 outputs use mechanical Form C contacts with coil-sensing feedback.
GENERAL INFORMATION −
BrandGE
Part numberIS230TRLYH1B
Product typeRelay Output DIN Rail Module
Relay outputs12 Form C contact circuits
I/O packsThree PDOA packs
Terminal boardIS200TRLYH1B
OUTPUT & TERMINATION ＋
Field terminalsTwo removable 24-position barrier blocks
Solenoid configurationFirst six relay circuits configurable for solenoids
MonitoringRelay coil sensing
CONTACT RATINGS & INTEGRATION ＋
125 V dc contacts0.6 A
24 V dc contacts3.0 A
120/240 V ac contacts3.0 A, 50/60 Hz
RedundancyTriple modular redundant I/O packs
MountingDIN-rail assembly
RELAY COMMAND & FEEDBACK ＋
Signal path: PDOA receives controller commands over Ethernet and drives the TRLYH1B relay circuits. Coil sensing returns diagnostic status for the relay command paths.
Source: GEZ-S2029, Mark VIe I/O Modules table, page 4; GEI-100727C, Discrete Output Modules, pages 17–18; GEH-6721 Volume I, Part Numbering Convention.
FAQ

Questions Buyers Ask Most

What is included in IS230TRLYH1B?＋

IS230TRLYH1B combines three PDOA I/O packs with an IS200TRLYH1B relay terminal board on a DIN-rail assembly.

How many output circuits does IS230TRLYH1B provide?＋

IS230TRLYH1B provides 12 Form C relay output circuits.

Which field terminals are used by IS230TRLYH1B?＋

IS230TRLYH1B uses two removable 24-position barrier terminal blocks, giving 48 field terminal positions.

Can IS230TRLYH1B interface solenoid circuits?＋

IS230TRLYH1B provides configurable solenoid arrangements on the first six relay circuits; field power and wiring must match the selected configuration.

What relay diagnostics are provided by IS230TRLYH1B?＋

IS230TRLYH1B uses the TRLYH1B coil-sensing interface to monitor relay excitation and compare coil status with commands.

Is IS230TRLYH1B a TMR output assembly?＋

IS230TRLYH1B is the three-PDOA TMR assembly listed by GE for the TRLYH1B terminal board.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS230TRLYH1B

Official manufacturer-manual PDF status for GE IS230TRLYH1B.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS230TRLYH1B was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEZ-S2029, Mark VIe I/O Modules table, page 4; GEI-100727C, Discrete Output Modules, pages 17–18; GEH-6721 Volume I, Part Numbering Convention.

GE MARK VIE RELAY-OUTPUT RELATIONSHIP

How IS230TRLYH1B Controls Relay Outputs

GE is the manufacturer brand; GE Mark VIe is the product family; and IS230TRLYH1B is the relay output din rail module for TMR relay output and coil-status feedback.

GE · BRAND
GE Mark VIeRelay Output DIN Rail Module
SYSTEM ROLE

Relay Output DIN Rail Module

Converts PDOA output commands into 12 relay contact circuits with coil monitoring.

MODULE / CONFIGURATION

12 Form C circuits · 3 PDOA packs

Two 24-position removable barrier terminal blocks provide field connections.

PACK & RELAY-BOARD INTERFACE

IS230TRLYH1B · Relay Output DIN Rail Module

Three PDOA packs interface directly with the IS200TRLYH1B relay terminal board.

System relationship: Ethernet output commands pass through PDOA to the TRLY relay drivers; the coil-sensing circuits return diagnostic feedback to the control system.
APPLICATION AREAS

Application map for IS230TRLYH1B

Relay Contact OutputsSwitch 12 Form C field circuits
Solenoid InterfacesConfigure the first six relay circuits
TMR RELAY OUTPUT & COIL DIAGNOSTICS IS230TRLYH1B IS230TRLYH1B · Relay Output DIN Rail Module
Coil Status MonitoringRead excitation and command feedback
TMR Output ProcessingUse three PDOA packs on one relay board
