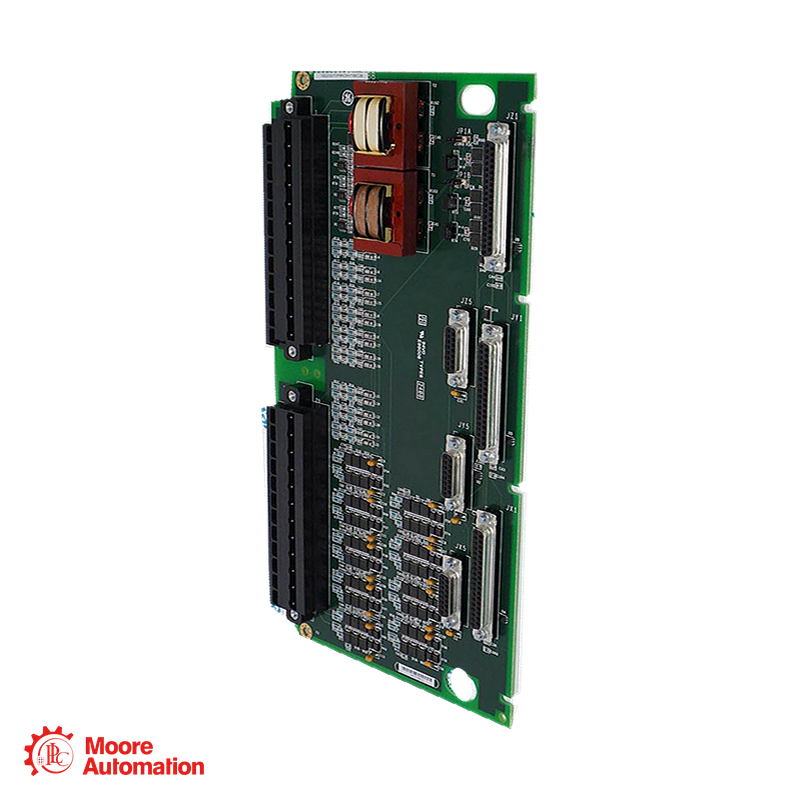

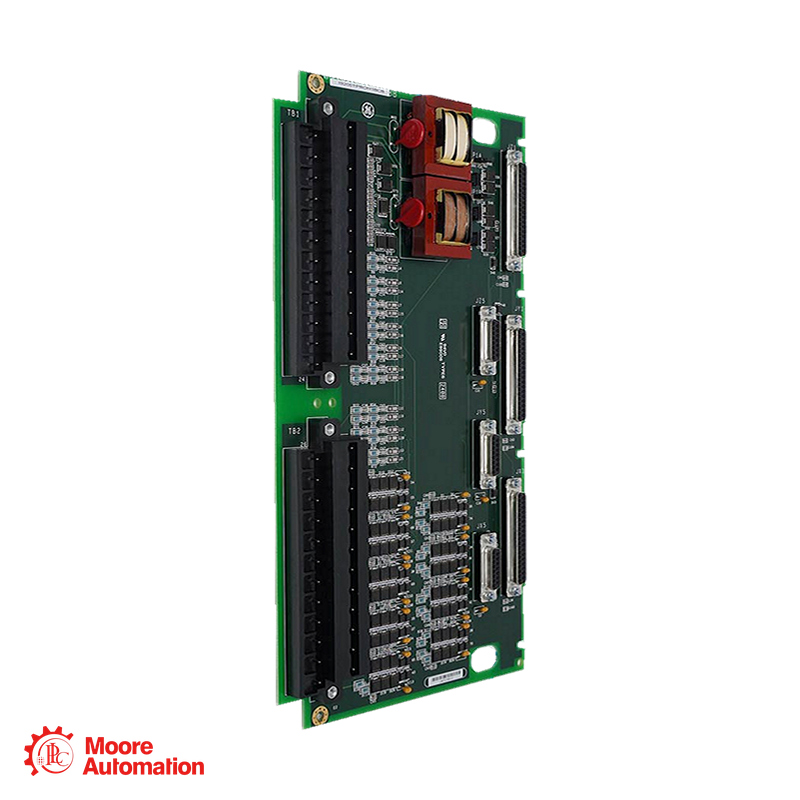

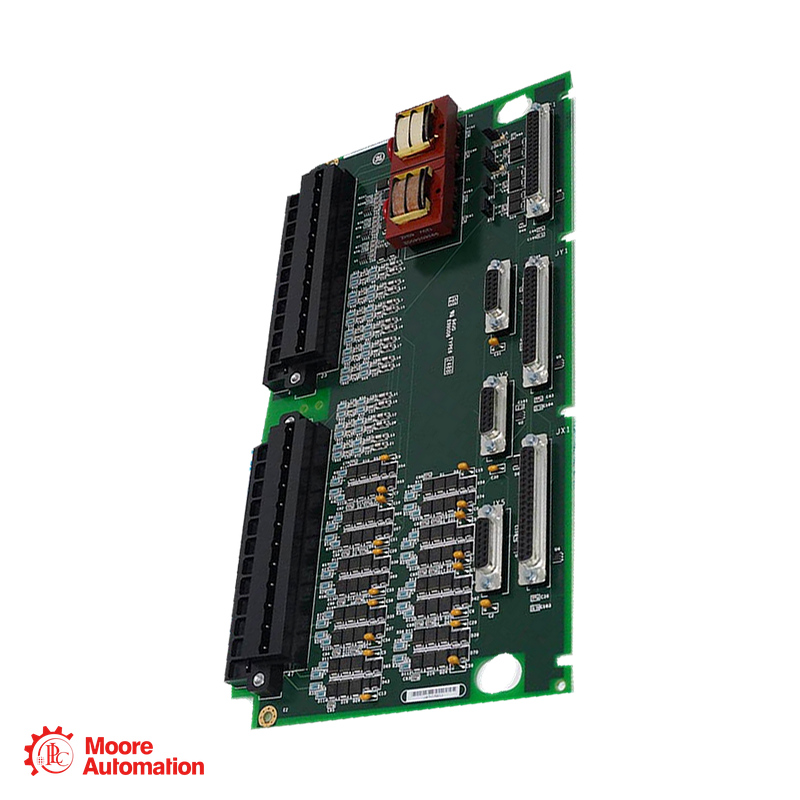

GE IS200TPROH1C Mark VIe Backup Turbine Protection Terminal Board
GE IS200TPROH1C Mark VIe Backup Turbine Protection Terminal Board
GE IS200TPROH1C Mark VIe Backup Turbine Protection Terminal Board

GE IS200TPROH1C Mark VIe Backup Turbine Protection Terminal Board

GE MARK VIE · BACKUP TURBINE PROTECTION

IS200TPROH1C

IS200TPROH1C is a GE Mark VIe backup turbine protection terminal board used with PPRO protection I/O. Its documented signal interfaces cover PT voltage inputs, speed inputs and low-current speed-sensor power outputs.

PRODUCT TYPEPROTECTION TERMINAL BOARD
PLATFORMMark VIe
PT INPUT0–138 Vac
SPEED INPUT−15 to +15 Vdc
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● BACKUP TURBINE PROTECTION TERMINAL BOARD
MARK VIE

IS200TPROH1C

BACKUP PROTECTION TERMINAL BOARD

MARK VIE · BACKUP TURBINE PROTECTION · PPRO

MODULE ROLE
IS200TPROH1C is a GE Mark VIe terminal board for PPRO backup turbine protection. It provides the field-signal interface associated with potential-transformer inputs, speed inputs and speed-sensor power.
LONG DESCRIPTION
IS200TPROH1C forms part of the turbine-protection signal path used with the IS220PPROH1A I/O module. The TPRO interface is rated for 0–138 Vac PT signals at 5–66 Hz, speed signals from −15 to +15 Vdc and 24 Vdc speed-sensor power at 25 mA. These are the documented TPRO interface ratings, distinct from ratings assigned to other terminal-board families.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS200TPROH1C Reference Is Structured

2
Material complianceNon-RoHS designation
0
Assembly formPrinted wiring assembly (PWA)
0
Environment executionStandard operating environment
TPRO
Board designationTPRO accessory terminal board
H
Component technologyContains surface-mount components
1
Assembly variantBill-of-material variant 1
C
Major revisionFunctional-interchangeability revision C
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS200TPROH1C BACKUP PROTECTION TERMINAL BOARD

Engineering data at a glance

Click “+” to expand more specifications.

PT INPUT0–138 Vac
PT FREQUENCY5–66 Hz
SPEED INPUT−15 to +15 Vdc
SENSOR POWER24 Vdc · 25 mA
TPRO interface ratings documented in GE Mark VIe electrical data.
Configuration note IS200TPROH1C is listed with IS220PPROH1A for backup turbine protection. The 28 Vdc, 0.37 A rating belongs to that I/O-module configuration; the TPRO speed-sensor output is 24 Vdc, 25 mA.
GENERAL INFORMATION −
BrandGE
Part numberIS200TPROH1C
Product typeBackup Turbine Protection Terminal Board
PT input0–138 Vac, 5–66 Hz
Speed input−15 to +15 Vdc
Speed-sensor power24 Vdc, 25 mA
PROTECTION I/O INTERFACE ＋
Control platformGE Mark VIe
Associated I/O moduleIS220PPROH1A
Protection functionPPRO backup turbine protection
ELECTRICAL SIGNAL RATINGS ＋
PT voltage0–138 Vac
PT frequency5–66 Hz
Speed-signal range−15 to +15 Vdc
Sensor-output voltage24 Vdc
Sensor-output current25 mA
AMBIENT TEMPERATURE ＋
Operating ambient: −30°C to +65°C
Source: GE Mark VIe electrical schedule, DEMKO 12 ATEX 1114875X, lists the complete IS200TPROH1C model and the associated TPRO signal ratings.
FAQ

Questions Buyers Ask Most

What is the role of IS200TPROH1C?＋

IS200TPROH1C is a terminal board for Mark VIe backup turbine protection. Its field interfaces include PT voltage, speed signals and speed-sensor power.

Which protection I/O module is documented with IS200TPROH1C?＋

IS200TPROH1C is listed with the IS220PPROH1A PPRO backup turbine protection module. The board and I/O-module catalog numbers must be treated as separate product identities.

What PT input range is documented for IS200TPROH1C?＋

IS200TPROH1C has a documented TPRO PT-input rating of 0–138 Vac at 5–66 Hz in the associated Mark VIe protection configuration.

What speed-signal rating applies to IS200TPROH1C?＋

IS200TPROH1C is listed with a TPRO speed-input range of −15 to +15 Vdc. This value describes the input signal, not the I/O-module supply voltage.

What speed-sensor power output is provided by IS200TPROH1C?＋

IS200TPROH1C has a documented TPRO speed-sensor power output of 24 Vdc, 25 mA. Do not substitute the separate I/O-module power rating for this field output.

Other Available Revisions for the IS200TPROH1C＋

No manufacturer-approved interchangeable alternative for IS200TPROH1C was confirmed in the documentation reviewed. Send Frida the complete board identity and installed protection-I/O arrangement for a revision-specific check.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200TPROH1C

Official manufacturer-documentation status for GE IS200TPROH1C.

Official datasheet status

No current official IS200TPROH1C product datasheet was located in the manufacturer's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GE official Mark VIe component records identify IS200TPROH1C. Electrical values on this page follow the TPRO ratings in the manufacturer-hosted system schedule; that schedule is not a product datasheet.

GE MARK VIE PROTECTION RELATIONSHIP

How IS200TPROH1C Fits Mark VIe Protection

GE is the manufacturer brand; GE Mark VIe is the product family; and IS200TPROH1C is the Backup Turbine Protection Terminal Board for the PPRO protection interface.

GE · BRAND
GE Mark VIeBackup Turbine Protection Terminal Board
SYSTEM ROLE

Backup Turbine Protection Terminal Board

Provides the TPRO field-signal interface for the associated PPRO backup protection module.

SIGNAL INTERFACES

PT voltage · Speed signals

The TPRO interface includes potential-transformer voltage inputs, speed inputs and low-current speed-sensor power outputs.

PROTECTION I/O

IS200TPROH1C · Backup Protection Terminal Board

GE lists this terminal board with IS220PPROH1A, the Mark VIe PPRO backup turbine protection module.

System relationship: TPRO terminates the field signals used by the associated Mark VIe backup turbine protection I/O.
APPLICATION AREAS

Application map for IS200TPROH1C

PT Signal AcquisitionInterface bus and generator potential-transformer signals
Speed Signal InterfaceRoute speed signals into the backup protection system
MARK VIE BACKUP PROTECTION IS200TPROH1C IS200TPROH1C · Protection Terminal Board
Speed-Sensor PowerProvide low-current DC power to the speed-sensor interface
Backup Protection I/OForm the terminal-board interface for the associated PPRO turbine protection module.
