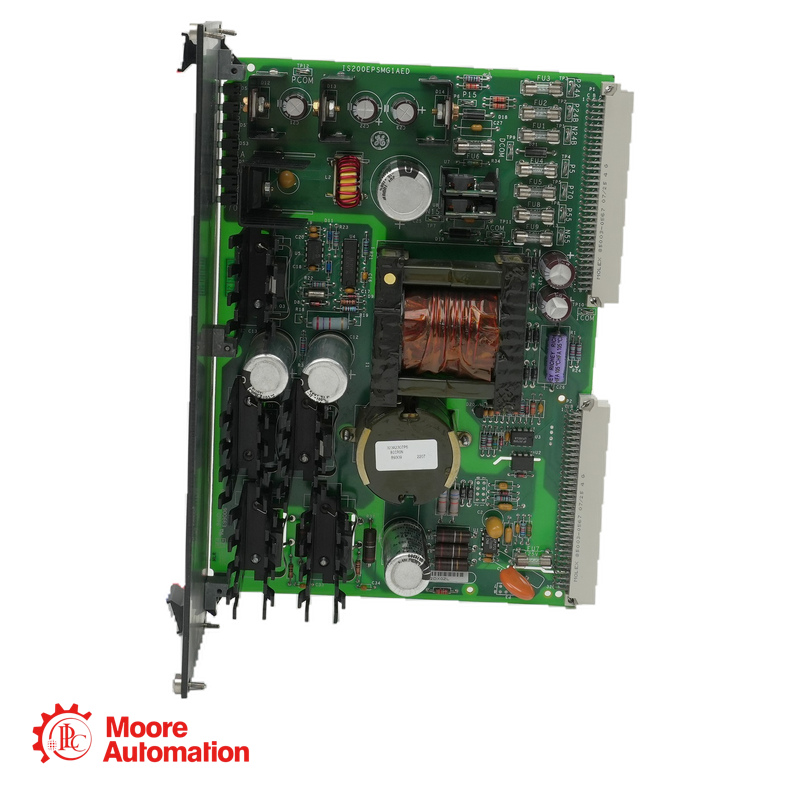

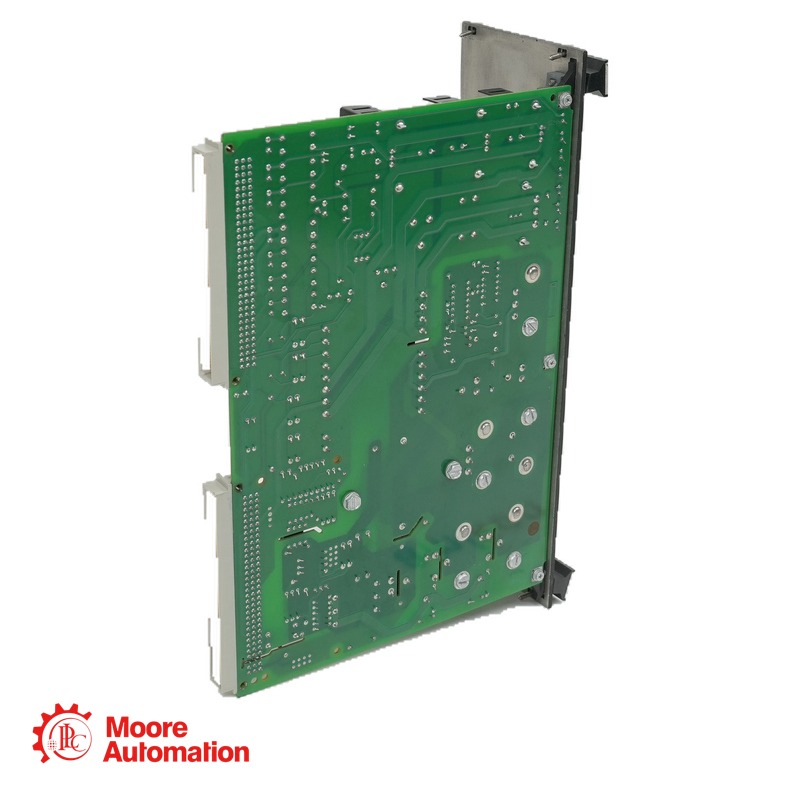

GE IS200EPSMG2A EX2100 Regulator Power Supply Module
GE IS200EPSMG2A EX2100 Regulator Power Supply Module
GE IS200EPSMG2A EX2100 Regulator Power Supply Module

GE IS200EPSMG2A EX2100 Regulator Power Supply Module

GE EX2100 · EPSM GROUP 2

IS200EPSMG2A

The IS200EPSMG2A is a GE EX2100 Regulator Power Supply Module. GE EPSM instructions describe a Group 2 module with an EPSD daughterboard that converts the regulator dc-link source into isolated logic and auxiliary power outputs.

PRODUCT TYPEEX2100 REGULATOR POWER SUPPLY
DC-LINK INPUTDC LINK BUS
LOGIC OUTPUTS+5 · ±15 · +24 VDC
AUXILIARY OUTPUTS±24 · +70 · 20 VAC · ±55
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE● EX2100 REGULATOR POWER SUPPLY MODULE
GE EX2100

IS200EPSMG2A

REGULATOR POWER SUPPLY MODULE

EX2100 REGULATOR · DC-LINK INPUT · ISOLATED OUTPUTS

PRODUCT ROLE
IS200EPSMG2A is the Group 2 Regulator Power Supply Module in the GE EX2100 regulator-control power chain.
TECHNICAL CONTEXT
IS200EPSMG2A is the Group 2 power-supply module used in GE EX2100 regulator control. Its EPSD daughterboard modifies the regulator power-input path, adds input fuse protection and allows the EPSM conversion stage to accept the dc-link source. A buck regulator develops a 50 V dc intermediate level, and a transformer-isolated push-pull inverter creates the required outputs. The module supplies +5 V dc, ±15 V dc and +24 V dc to ERBP or ERRB, plus ±24 V dc, isolated +70 V dc, isolated 20 V ac and ±55 V dc for regulator-control auxiliary circuits.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE EX2100 ↗
IS200EPSMG2A EX2100 REGULATOR POWER SUPPLY MODULE

Engineering data at a glance

Click “+” to expand more specifications.

MODULE GROUPGroup 2 EPSM
DC-LINK INPUTDC link bus
LOGIC OUTPUTS+5 · ±15 · +24 Vdc
SPECIAL OUTPUTS±24 · +70 · 20 Vac · ±55
The values shown summarize GE EX2100 regulator-control and EPSM instruction data. Confirm the complete IS200EPSMG2A catalog number, EPSD execution and installed regulator backplane arrangement before replacement.
System contextUse IS200EPSMG2A with the compatible ERBP or ERRB regulator backplane and dc-link power source. Match the complete catalog number, functional revision and EPSD execution before replacement.
GENERAL INFORMATION −
BrandGE
Part numberIS200EPSMG2A
Product typeRegulator Power Supply Module
Control systemEX2100 Regulator Control
System roleGroup 2 isolated supply for EX2100 regulator control
POWER CONVERSION ＋
Module functionRegulator dc-link power conversion
Input sourceRegulator dc-link source through the EPSD
First conversion stageBuck regulator produces a 50 V dc intermediate level
Second conversion stagePush-pull inverter creates multiple output rails
Isolation methodPush-pull transformer isolates input from outputs
OUTPUT VOLTAGES ＋
ERBP / ERRB logic supplies+5 V dc · ±15 V dc · +24 V dc
Auxiliary regulator outputs±24 V dc · isolated +70 V dc · isolated 20 V ac · ±55 V dc
Simplex backplaneERBP receives the regulator-control supply outputs
Redundant backplaneERRB supplies the M2/C regulator-control section
SYSTEM INTEGRATION ＋
EPSD daughterboardInput-path modification and fuse protection
Simplex configurationOne EPSMG2 module mounted in ERBP
Redundant configurationOne EPSMG2 in ERBP and one in ERRB
Input-path protectionEPSD modifies the input path and adds a source fuse
Regulator power chainDC link · EPSD/EPSM conversion · ERBP/ERRB distribution
Source: GEH-6632 EX2100 Excitation Control User Guide and GEI-100462A EPSM instructions for Group 2 regulator-control power conversion. No direct manufacturer-hosted exact IS200EPSMG2A PDF was confirmed publicly.
FAQ

Questions Buyers Ask Most

What is IS200EPSMG2A?＋

IS200EPSMG2A is the GE EX2100 Group 2 Regulator Power Supply Module with an EPSD daughterboard for the regulator dc-link input path.

What input source feeds IS200EPSMG2A?＋

For IS200EPSMG2A, GE EPSM instructions identify the regulator dc-link source through the EPSD daughterboard as the input to the power-conversion stage.

Which regulated outputs does IS200EPSMG2A provide?＋

IS200EPSMG2A provides +5 V dc, ±15 V dc and +24 V dc for regulator logic, plus ±24 V dc, isolated +70 V dc, isolated 20 V ac and ±55 V dc auxiliary outputs.

How does IS200EPSMG2A convert power?＋

For IS200EPSMG2A, the EPSM uses a buck regulator to create 50 V dc and a transformer-isolated push-pull inverter to generate the required multiple output voltages.

What should be verified before ordering IS200EPSMG2A?＋

Confirm the full IS200EPSMG2A catalog number, functional revision, EPSD execution, dc-link source and ERBP or ERRB backplane arrangement before ordering.

Other Available Revisions for the IS200EPSMG2A＋

No interchangeable revision for IS200EPSMG2A was identified in current public manufacturer documentation. Contact Frida with the complete nameplate and installed-system details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS200EPSMG2A

Documentation support for the GE IS200EPSMG2A EX2100 Regulator Power Supply Module.

Official datasheet status

No direct exact-model manufacturer-hosted IS200EPSMG2A PDF was confirmed in the public documentation. For the applicable GEH-6632 and GEI-100462A EPSM instructions, EPSD execution and ordering support, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Module-level statements on this page follow GEH-6632 EX2100 and GEI-100462A Group 2 EPSM documentation; contact Frida for the exact IS200EPSMG2A document package.

GE EX2100 REGULATOR EPSM RELATIONSHIP

How IS200EPSMG2A Fits into the EX2100 Excitation System

GE is the manufacturer brand; EX2100 is the excitation-control system; and IS200EPSMG2A is a Group 2 Regulator Power Supply Module.

GE · BRAND
GE EX2100EPSM Group 2 Module
SYSTEM ROLE

Regulator Power Supply Module

Converts the regulator dc-link source into isolated logic and auxiliary outputs for EX2100 regulator control.

POWER CONVERSION

EPSD · Buck Regulator · Push-Pull Inverter

The EPSD modifies and protects the input path; a buck regulator develops 50 V dc and a transformer-isolated push-pull inverter creates the multiple outputs.

ORDER DATA

IS200EPSMG2A · Complete Model

Match the complete catalog number and confirm functional revision, EPSD execution, dc-link source and ERBP or ERRB application.

System relationship: verify the complete IS200EPSMG2A identity and the installed EX2100 regulator-control backplane arrangement before ordering.
APPLICATION AREAS

Application map for IS200EPSMG2A

Regulator Logic Power+5 V dc, ±15 V dc and +24 V dc supplies for the EX2100 regulator backplane
DC-Link Power ConversionEPSD input conditioning followed by buck-regulator and transformer-isolated inverter conversion
APPLICATION CENTERIS200EPSMG2AEX2100 EPSM Group 2
Auxiliary Regulator Outputs±24 V dc, isolated +70 V dc, isolated 20 V ac and ±55 V dc support regulator-control auxiliary circuits
Simplex / Redundant Regulator ControlOne EPSMG2 module serves ERBP in simplex control; redundant control uses EPSMG2 modules in ERBP and ERRB
