The GE Fanuc IC5008TAW0000 is an 18-inch industrial panel computer from the CIMPLICITY Station and Intelligence Panel PC product families
Бренд :
GEномер части :
IC5008TAW0000Масса :
7 kgИзмерение :
39x31.2x15.6 cmСтрана происхождения :
USAКод ТН ВЭД :
8537101190Описание :
18-Inch Industrial Panel Computer
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Product Overview

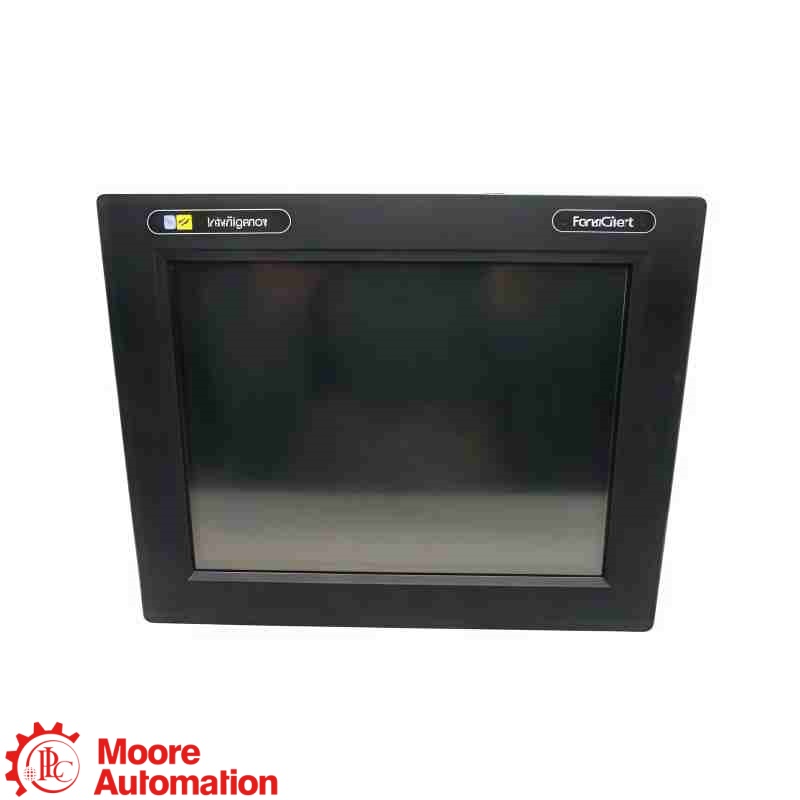

The GE Fanuc IC5008TAW0000 is an 18-inch industrial panel computer from the CIMPLICITY Station and Intelligence Panel PC product families. This standard unbundled configuration was supplied with a 750 MHz processor, 128 MB of RAM, a 13 GB hard drive, Microsoft Windows 2000, a floppy drive and a read-only CD-ROM. The IC5008 platform features an 18.1-inch TFT color touchscreen with 1280 × 1024 SXGA resolution. Its larger display area allows operators to view detailed process graphics, alarm information and equipment status without moving between as many screens.
Technical Specifications
|
Parameter |
Specification |
|
Manufacturer |
GE Fanuc Automation |
|
Complete catalog number |
IC5008TAW0000 |
|
Product family |
CIMPLICITY Station / IC5008 Intelligence Panel PC |
|
Configuration |
Standard unbundled station |
|
Nominal display size |
18 inches |
|
Active display diagonal |
18.1 inches / 459.7 mm |
|
Display technology |
TFT LCD color touchscreen |
|
Native resolution |
1280 × 1024 pixels, SXGA |
|
Displayed colors |
64K |
|
Display brightness |
250 cd/m², downward adjustable |
|
Display video memory |
4 MB SDRAM |
|
Touchscreen technology |
Analog five-wire resistive |
|
Touchscreen connection |
Internal serial interface connected to COM4 |
|
Processor speed |
750 MHz |
|
Installed memory |
128 MB RAM |
|
Hard-disk capacity |
13 GB |
|
Operating system |
Microsoft Windows 2000 |
|
Optical drive |
Read-only CD-ROM |
|
Floppy drive |
3.5-inch floppy drive |
Features
-18.1-inch TFT color touchscreen
-SXGA 1280 × 1024 native resolution
-64K displayed colors
-250 cd/m² display brightness
-Analog five-wire resistive touch technology
-750 MHz processor
-128 MB installed RAM
-3.5-inch floppy drive
-Dual 10/100Base-T Ethernet
-Three external RS-232 ports
-NEMA 4/IP65 front protection
Application Areas
Large-format HMI and SCADA operator stations
Production-line and machine-status visualization
Process overview and alarm-monitoring panels
Industrial maintenance and diagnostic terminals
Replacement of installed IC5008TAW0000 computers
Brand
GE
Part number
IC5008TAW0000
Origin
USA
Description
18-Inch Industrial Panel Computer
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Model Benefits
The product offers a number of benefits, including:
-Largest display format in the IC500x family
-Higher-resolution process visualization
-Supports legacy Windows 2000 installations
-Multiple serial and Ethernet connections
-Panel-mounted industrial construction
-Supports controlled replacement of an installed unit
-Separate software and hardware management
Frequently asked questions
1. Can an IC5008TAW0000 directly replace a 15-inch IC5005 panel?
It should not be treated as a direct mechanical replacement. The IC5008 requires a 428 × 358 mm panel cutout, while the IC5005 uses a smaller 376 × 299 mm cutout. Engineers must also check mounting depth, connector clearance, power consumption and the resolution used by the existing HMI project.
2. What installation space is required around the unit?
The documented mounting depth is 154 mm. At least 50 mm of ventilation clearance is required above and below the computer, with 30 mm at each side. A minimum of 132 mm must remain available to the left of the front panel so the CD-ROM drawer can open.
3. What data should be preserved before replacing an existing IC5008TAW0000?
Create and verify a complete hard-disk image. Also retain the HMI project, communication drivers, Windows configuration, IP addresses, computer name, startup files, touchscreen calibration settings and all software-license records.
