The IC5005TAW0000 is a 15-inch unbundled industrial panel computer from the GE Fanuc CIMPLICITY Station product range
Бренд :
GEномер части :
IC5005TAW0000Масса :
7 kgИзмерение :
33x26.8x18.3 cmСтрана происхождения :
USAКод ТН ВЭД :
8537101190Описание :
Industrial Panel Computer
Contact Below to Get Best Price
Contact-- Frida
Email--sales5@mooreplc.com
Mobile(WhatsApp)-- +86 15359408275
Product Overview

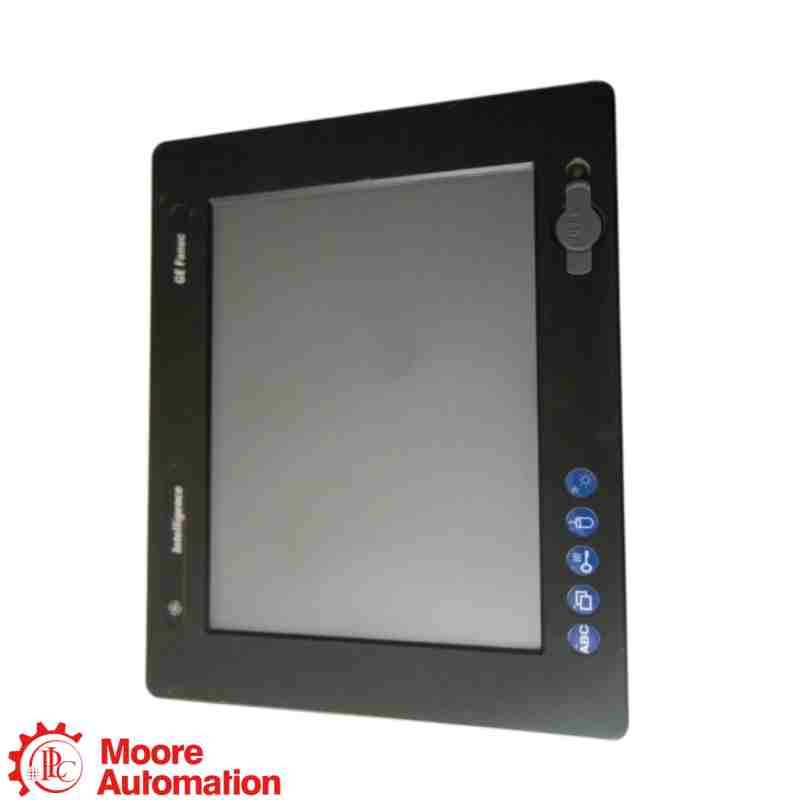

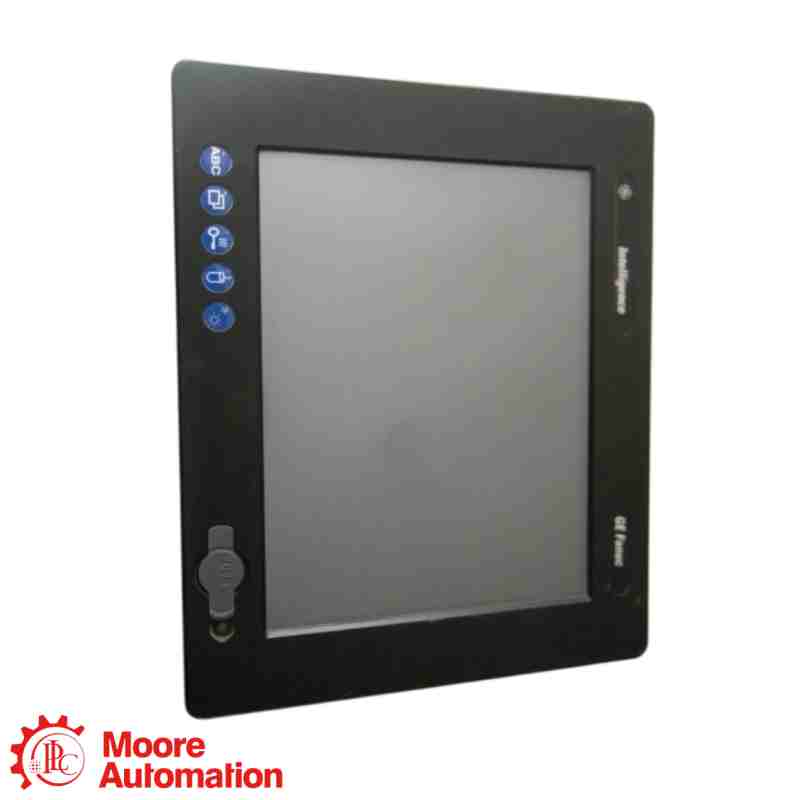

The GE Fanuc IC5005TAW0000 is a 15-inch unbundled industrial panel computer from the GE Fanuc CIMPLICITY Station product range. This configuration combines a 750 MHz processor, 128 MB of RAM, a 13 GB hard drive, Microsoft Windows 2000, a floppy drive and a read-only CD-ROM.The IC5005 platform uses a 15.1-inch TFT color touchscreen with 1024 × 768 XGA resolution. Its panel-mount construction, sealed front surface and built-in industrial communication interfaces make it suitable for operator interface, production monitoring and maintenance applications in legacy automation systems.
Technical Specifications
|
Parameter |
Specification |
|
Manufacturer |
GE Fanuc Automation |
|
Complete catalog number |
IC5005TAW0000 |
|
Product family |
CIMPLICITY Station / IC5005 Intelligence Panel PC |
|
Configuration |
Standard unbundled station |
|
Nominal display size |
15 inches |
|
Active display diagonal |
15.1 inches / 383.5 mm |
|
Display technology |
TFT LCD color touchscreen |
|
Native resolution |
1024 × 768 pixels, XGA |
|
Displayed colors |
64K |
|
Display brightness |
400 cd/m², downward adjustable |
|
Touchscreen technology |
Analog five-wire resistive |
|
Touchscreen interface |
Internal serial connection to COM4 |
|
Processor speed |
750 MHz |
|
Installed memory |
128 MB RAM |
|
Hard-disk capacity |
13 GB |
|
Operating system |
Microsoft Windows 2000 |
|
Optical drive |
Read-only CD-ROM |
|
Floppy drive |
3.5-inch floppy drive |
|
GE Fanuc application software |
Not included |
|
Ethernet interfaces |
2 × 10/100Base-T RJ45 |
|
External serial interfaces |
COM1, COM2 and COM3 RS-232 |
|
Expansion capacity |
2 shared ISA/PCI slots plus 1 PCI slot |
|
AC input range |
100–240 VAC |
|
Input frequency |
50–60 Hz |
|
Power-supply rating |
100 W |
|
Power consumption |
54 W typical; 62 W maximum |
|
Maximum additional expansion-card load |
20 W |
|
Overall dimensions |
390 × 312 × 156 mm |
|
Front-cover dimensions |
373.6 × 295.6 mm |
|
Ventilation clearance |
50 mm top and bottom; 30 mm at each side |
|
Minimum CD-drawer clearance |
132 mm to the left when viewed from the front |
|
Operating temperature |
0°C to 40°C |
|
Storage temperature |
−20°C to 60°C |
|
Relative humidity |
10% to 85%, non-condensing |
|
Operating shock |
15 G, 11 ms, positive and negative directions on three axes |
|
Non-operating shock |
30 G |
|
Front enclosure protection |
NEMA 4 / IP65 |
|
Catalog-listed weight |
9.0 kg |
|
Listed approvals |
UL 1604 Class I, Division 2; CE |
Features
-15.1-inch TFT color touchscreen
-XGA 1024 × 768 resolution
-Analog five-wire resistive touch technology
-750 MHz processor
-128 MB installed RAM
-13 GB hard-disk capacity
-Microsoft Windows 2000 operating system
-Read-only CD-ROM and 3.5-inch floppy drive
Application Areas
Legacy HMI and SCADA operator stations
Machine and production-line monitoring panels
Plant-floor process visualization terminals
Maintenance and engineering access stations
Like-for-like replacement in installed IC5005 systems
Brand
GE
Part number
IC5005TAW0000
Origin
USA
Description
Industrial Panel Computer
Shipping Port
Xiamen，China
Payment
T/T
Lead Time
In stock
Shipment
DHL,UPS,FEDEX,TNT,EMS,SF
Service
One-year warranty
Model Benefits
The product offers a number of benefits, including:
-Supports continued operation of legacy Windows 2000 automation systems
-Provides a large local operator display
-Maintains compatibility with resistive-touch applications
-Offers multiple legacy and Ethernet communication interfaces
-Simplifies like-for-like replacement when configuration is confirmed
-Allows software and licensing to be managed separately
Frequently asked questions
1. Does the IC5005TAW0000 include CIMPLICITY software?
No. IC5005TAW0000 is an unbundled configuration supplied with Windows 2000 but without GE Fanuc application software. CIMPLICITY software, project files and licenses must be handled separately.
2. What should be backed up before replacing an installed unit?
Create a full hard-disk image and retain the HMI project, communication drivers, license information, network settings, computer name, startup configuration and touchscreen calibration data. Backups should be verified on separate media before the original unit is removed.
3. Which checks are important before commissioning a replacement?
Confirm the complete catalog number, panel cutout, mounting depth, AC supply, connector layout and software image. After installation, test startup, touchscreen calibration, Ethernet and serial communications, application licensing, controller connectivity and alarm handling before returning the station to production.
