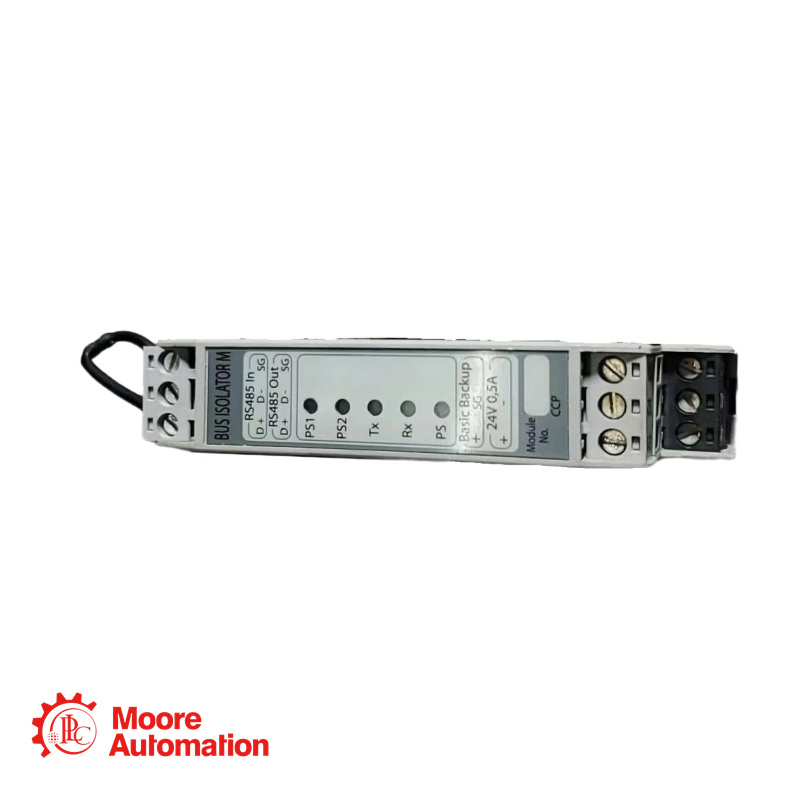

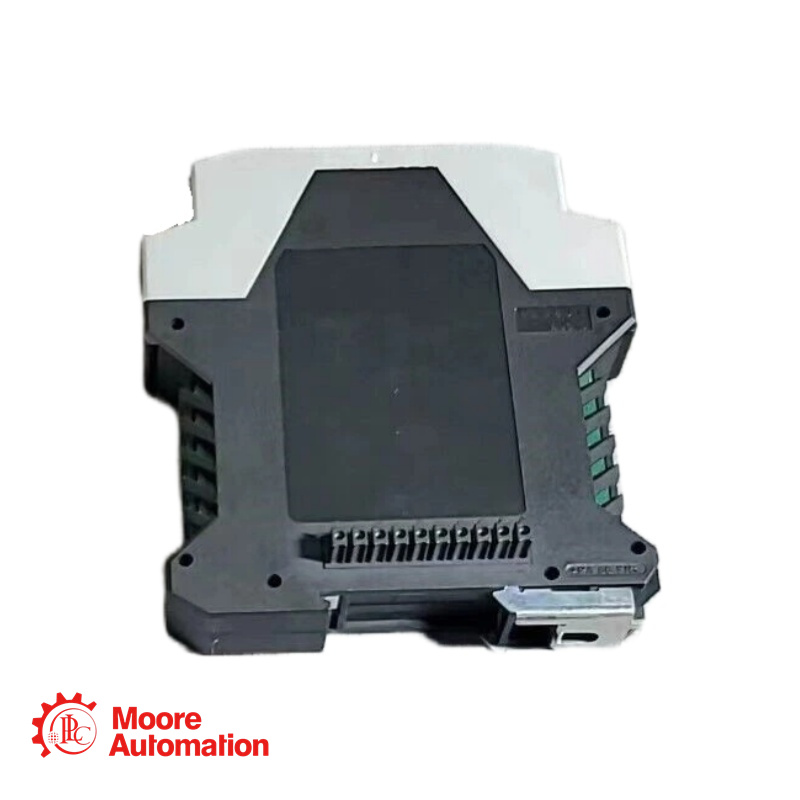

The 5100070-02A is a Bus Isolator M H module manufactured by Consilium Safety. It is a critical component used in Consilium CCP (Consilium Common Platform) fire detection systems to divide the system backbone bus into galvanically isolated segments.
Бренд :
Consiliumномер части :
5100070-02AМасса :
0.38 kgИзмерение :
12.2x10.7x3cmСтрана происхождения :
SwedenКод ТН ВЭД :
8537101190Описание :
BUS ISOLATOR M H ASSEMBLY
|
Speak To Us: |
Phone/Whatsapp/Wechat: |
|
Email: |
|
|
Address: |
|
|
DMI50 |
Descrption: The 5100070-02A is a Bus Isolator M H module manufactured by Consilium Safety. It is a critical component used in Consilium CCP (Consilium Common Platform) fire detection systems to divide the system backbone bus into galvanically isolated segments.
Specification:
Operating Voltage:19–30 VDC |
DMI50
Q1: Why are there two modules installed together?
A:A single Bus Isolator M typically isolates only one channel. In a standard Consilium central cabinet, two modules are used to manage redundant communication paths or separate segments.
Q2: What are the key installation requirements?
A: Mounting: Must be installed horizontally on a standard 35 mm DIN rail.
FAQ
Resistor Removal: A 2 kΩ resistor is pre-fitted between terminals 31 and 32. You must remove this resistor if the output is used for actual wiring.
Address Setting: Use the onboard 8-pole DIP switch to set the physical address (Range: 1–126) using binary coding.
|
