Бренд :
Honeywellномер части :
CC-PPIX01 51410089-175Масса :
0.3 kgИзмерение :
14.2x10.7x3cmСтрана происхождения :
USAКод ТН ВЭД :
8537101190Описание :
Pulse Input Module
|
CC-PPIX01 51410089-175's Good Price? |
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
|

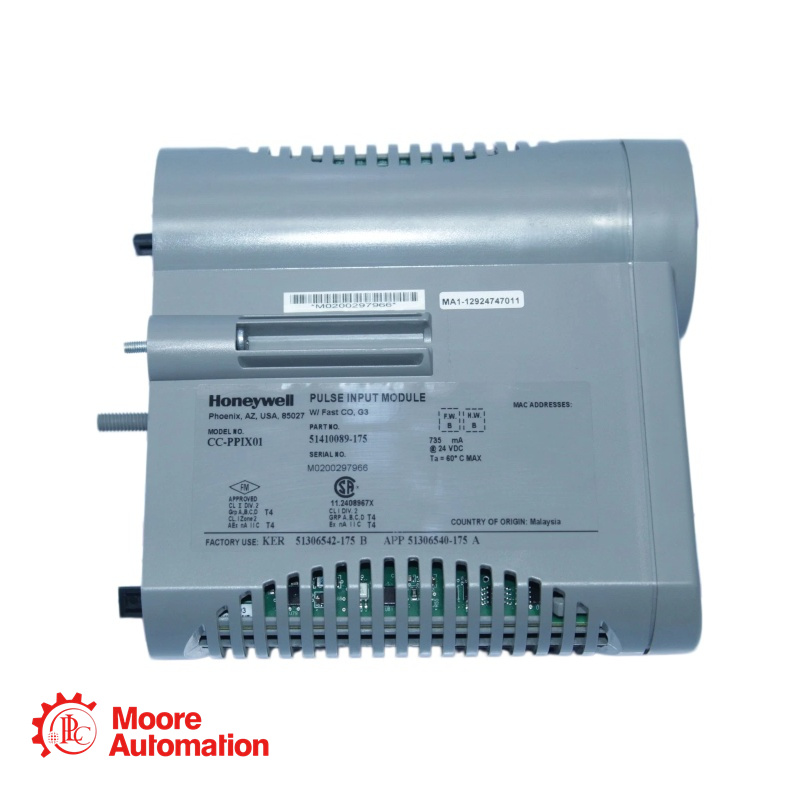

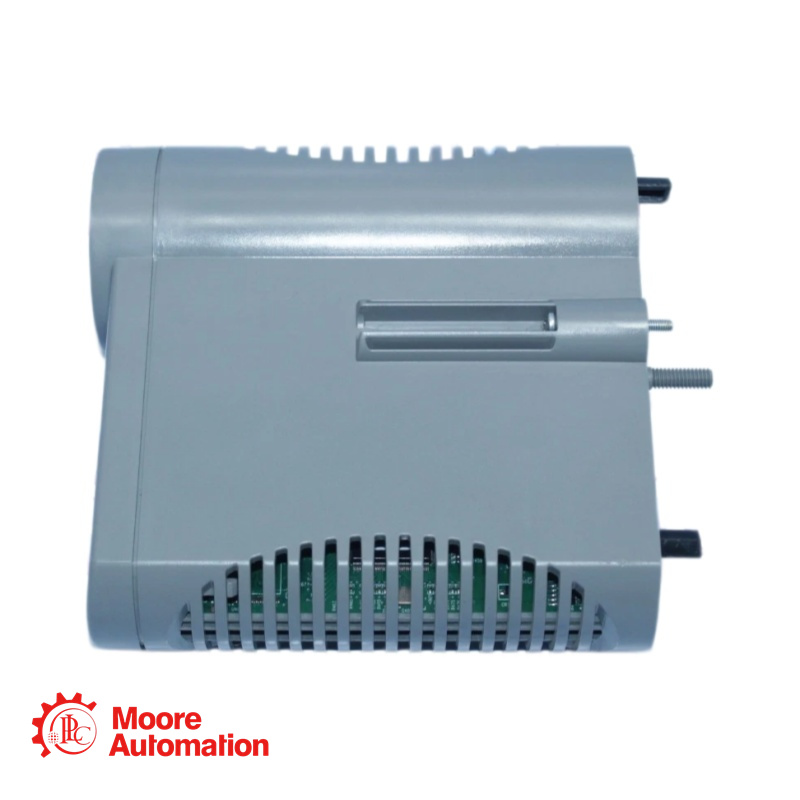

CC-PPIX01 51410089-175 Pulse Input Overview |
The CC-PPIX01 51410089-175 Pulse Input Module provides the Experion C300 controller with the ability to monitor various pulse input field values.
It processes signals from pulse-generating devices and provides a calculated rate and an accumulated total.
The module is specifically engineered to support the MeterSuite Custody Transfer Application, including support for dual pulse per ISO6551.
●Pulse Input Module (PIM) for Experion C300 controller
●Part of the Series C I/O family●Redundant configuration supported
|
CC-PPIX01 51410089-175 Pulse Input Specifications |
|
CC-PPIX01 51410089-175 |
Pulse Input |
|
I/O Model |
CC-PPIX01 - Pulse Input |
|
IOTA Model (Redundant) |
CC-TPIX11 – 12" |
|
Number of Inputs |
8 (Single) or 4 (Dual) – Supports mixed combination |
|
Number of Outputs |
2 (Fast Cutoff on channels 7 and 8 only) |
|
Input type |
High-impedance, differential voltage, optically isolated (1000 VDC) |
|
Frequency Range (Single Channel) |
0 – 100 kHz |
|
Frequency Range (Dual Pulse Channel) |
0 – 10 kHz |
|
Frequency Accuracy (0.5 Hz – 100 kHz) |
± 0.001% of Reading |
|
Input Voltage Range |
0 to 35 VDC |
|
Input Voltage Trip Points (High Setting) |
Low→High: 8.4V; High→Low: 7.7V |
|
Input Voltage Trip Points (Low Setting) |
Low→High: 2.8V; High→Low: 2.0V |
|
Input Edge Selection |
Configurable: Rising Edge (Default) or Falling Edge |
|
Channel Input Impedance |
> 70 kΩ |
CC-PPIX01 51410089-175 Pulse Input
FAQ
Q: What is the CC-PPIX01 51410089-175?
A: The CC-PPIX01 is a Pulse Input Module (PIM) for the Honeywell Experion C300 controller and Series C I/O platform. It processes signals from pulse-generating field devices (e.g., flowmeters, encoders, tachometers) and provides calculated rate (frequency) and accumulated total values to the control system.
Q: What are the key applications for this module?
A: The module is well-suited for:
Q: How many inputs does the CC-PPIX01 support?
A: The module supports:
Q: What is the frequency accuracy?
A: ± 0.001% of reading (for 0.5 Hz – 100 kHz range)
Q:What input voltage range does the module accept?
A: 0 to 35 VDC (independent of input voltage range)
High-accuracy metering and custody transfer applications
Dosing operations (with fast cutoff capability)
ISO 6551/API 5.5 compliant dual pulse inputs
MeterSuite Custody Transfer Application support
8 single inputs, OR
4 dual inputs (supports mixed combination of single and dual input channels)
|
