 /Bently Nevada 84661-34 Armored Interconnect Cable

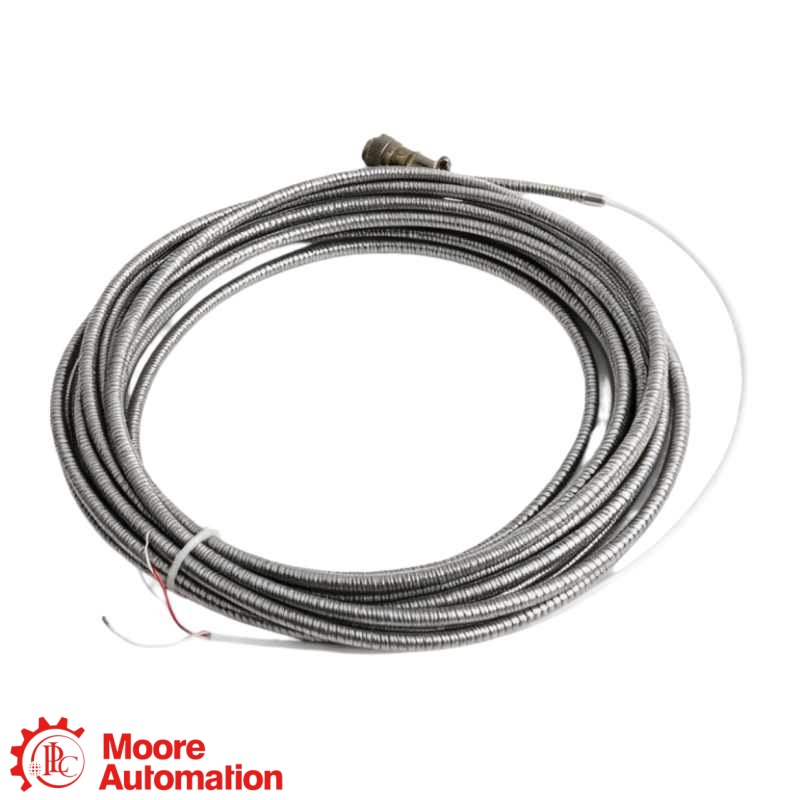

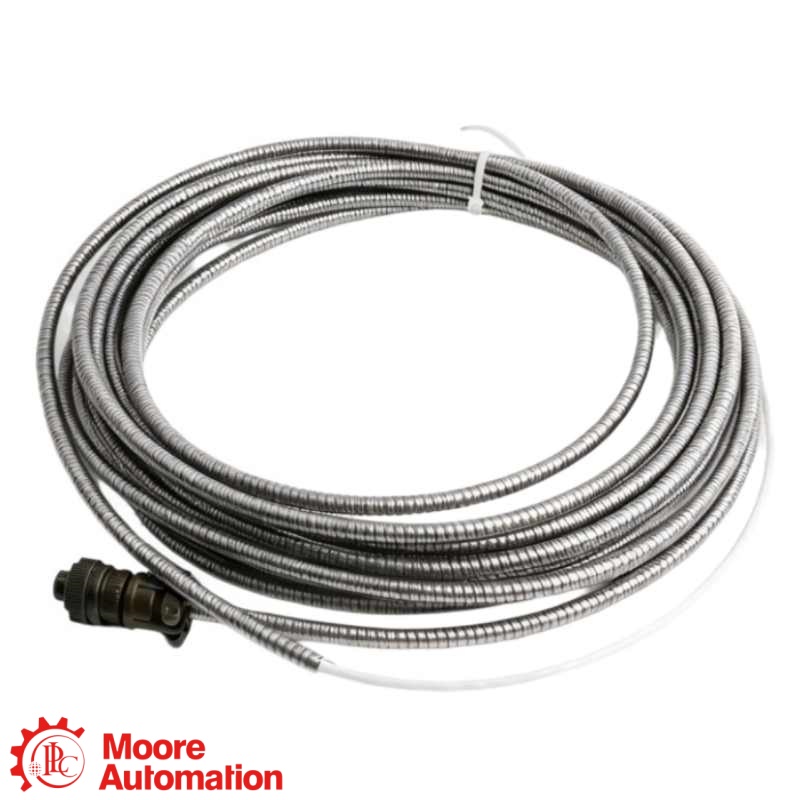

Bently Nevada 84661-34 Armored Interconnect Cable
Bently Nevada 84661-34 Armored Interconnect Cable
Bently Nevada 84661-34 Armored Interconnect Cable

Bently Nevada 84661-34 Armored Interconnect Cable

BENTLY NEVADA · ARMORED INTERCONNECT CABLE

84661-34

The 84661-34 is a 34 ft (approximately 10.4 m) two-conductor, twisted, shielded 22 AWG armored interconnect cable with a two-socket moisture-resistant female connector at one end and terminal lugs at the other. It is used with compatible monitors or velocity-to-displacement converters.

LENGTH34 ft
CONDUCTORS2 × 22 AWG
CONSTRUCTIONArmored
TERMINATIONS2-socket + lugs
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● ARMORED INTERCONNECT CABLE
VELOCITY SENSOR INTERCONNECTION

84661-34

BASE PART 84661

34 FT ORDERED CABLE LENGTH

MODULE ROLE
84661-34 is a two-conductor, twisted, shielded 22 AWG armored interconnect cable. It connects a compatible velocity transducer to a monitor or velocity-to-displacement converter through a two-socket moisture-resistant female connector and terminal lugs.
CONFIGURATION NOTE
For 84661-34, suffix 34 specifies a 34 ft (approximately 10.4 m) ordered cable length. Confirm the transducer connector, monitor or converter termination, cable route and armor clearance; official documentation states that the 84661 cable is not for the 21128 Velocity Transducer Housing.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 84661-34 reference is structured

84661
Cable familyArmored interconnect cable
34
Ordered length34 ft · approximately 10.4 m
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Baker Hughes Datasheet 161M1037 ↗
84661 · ARMORED INTERCONNECT CABLE

Engineering data at a glance

Review the exact cable route and connections before replacement.

LENGTH34 ft · approx. 10.4 m
CONDUCTORS2 × 22 AWG
CONSTRUCTIONTwisted · shielded · armored
TERMINATIONS2-socket female + terminal lugs
Baker Hughes TP100 and TP500 General Purpose Accelerometer Datasheet 161M1037 identifies 84661-NN as the armored interconnection-cable series.
General Information ＋
BrandBently Nevada
Part number84661-34
Product typeArmored Interconnect Cable
Product family84661 Interconnection Cable Series
ManufacturerBently Nevada / Baker Hughes
ORDER NUMBER CHECK ＋
Base reference84661
Complete model84661-34
Length code34 · ordered length in feet
CONSTRUCTION & CONNECTION ＋
Cable constructionTwo-conductor twisted, shielded 22 AWG armored cable
Sensor-side connectionTwo-socket moisture-resistant female connector
Monitor-side terminationTerminal lugs
Ordered length34 ft · approximately 10.4 m
Compatibility limitNot for use with the 21128 Velocity Transducer Housing
DOCUMENTATION & ORDER CHECK ＋
Official referenceBaker Hughes TP100 and TP500 General Purpose Accelerometer Datasheet 161M1037
Quotation checkConfirm the complete model, quantity, cable route, connector, termination and installed transducer or monitor
FAQ

Questions Buyers Ask Most

What is 84661-34 used for?＋
84661-34 is a Bently Nevada armored interconnect cable that carries a velocity-sensor signal to a compatible monitor or velocity-to-displacement converter. Its 34 ft length, two-socket female connector and terminal-lug termination must match the installed measurement channel.
What does the 34 suffix specify for 84661-34?＋
The 34 suffix in 84661-34 specifies an ordered cable length of 34 ft, or approximately 10.4 m. The full route, service loop and termination location must fit this fixed length before installation.
What conductor and protection configuration does 84661-34 use?＋
84661-34 uses two-conductor twisted, shielded 22 AWG cable with external armor. This construction supports protected signal routing, but the armor bend radius, grounding method and cable path must follow the installed system requirements.
Which connections are provided on 84661-34?＋
84661-34 has a two-socket moisture-resistant female connector at one end and terminal lugs at the other. The transducer connector and monitor or converter terminals must be checked for the same physical and electrical arrangement.
Can 84661-34 be used with the 21128 Velocity Transducer Housing?＋
No. Baker Hughes documentation states that the 84661 armored cable is not for use with the 21128 Velocity Transducer Housing, so 84661-34 must be matched to a different compatible transducer installation.
Can 84661-34 directly replace another 84661 cable length?＋
84661-34 should not be substituted solely because the base number matches. Another 84661 suffix represents a different ordered length, and the route, connector reach, strain relief and termination position must be verified before replacement.
What should be confirmed when ordering 84661-34?＋
For an 84661-34 inquiry, provide the complete model, quantity, installed transducer, destination monitor or converter, connector photos, termination details and cable-route length. These details confirm that the 34 ft armored configuration and compatibility limits suit the application.
CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Manuals and Official References for 84661-34

Official Baker Hughes manufacturer-reference information covering the 84661 armored cable series and the 34 ft ordered length.

84661 Armored Interconnect Cable

Baker Hughes TP100 and TP500 General Purpose Accelerometer Datasheet 161M1037 includes the 84661-NN cable ordering information.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, quantity, cable-route details and your technical or purchasing question.

Source: Baker Hughes TP100 and TP500 General Purpose Accelerometer Datasheet 161M1037.
VELOCITY SENSOR INTERCONNECTION RELATIONSHIP

How 84661-34 Fits into a Velocity Measurement Chain

Bently Nevada is the brand; the velocity transducer and monitor channel form the measurement chain; and 84661-34 is the 34 ft armored interconnection cable.

Bently Nevada · BRAND
84661 Cable SeriesARMORED SIGNAL INTERCONNECTION
SENSING COMPONENT

Velocity Transducer

A compatible transducer produces the machinery-vibration signal.

INTERCONNECTION

84661-34 Cable

The 34 ft armored cable carries the signal through its shielded conductors.

DESTINATION

Monitor or Converter

Terminal lugs connect the cable to the compatible monitoring or conversion hardware.

System relationship: the transducer connector, 34 ft route, armored cable clearance, terminal assignment and monitor or converter input must all match.
APPLICATION AREAS

Application mind map for the 84661-34 cable

Velocity MeasurementCarries the transducer signal to monitoring or conversion hardware
Cable RoutingConfirm the full 34 ft path, armor clearance and strain relief
APPLICATION CENTER84661-34Armored interconnect cable
Signal ConnectionMatch the two-socket female connector and terminal-lug assignment
Replacement CheckVerify installed transducer compatibility and exclude the 21128 housing
