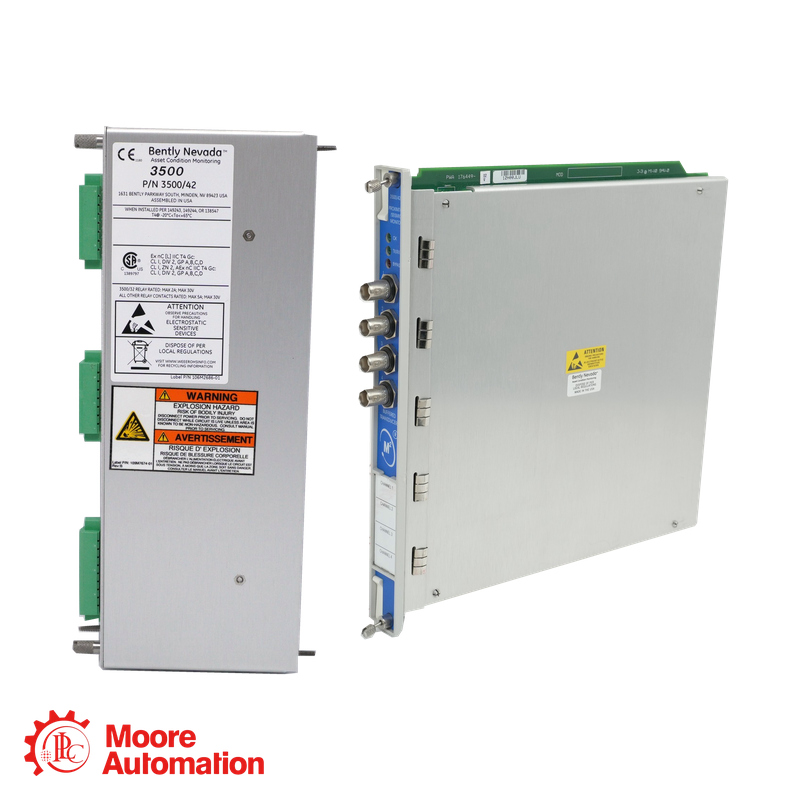

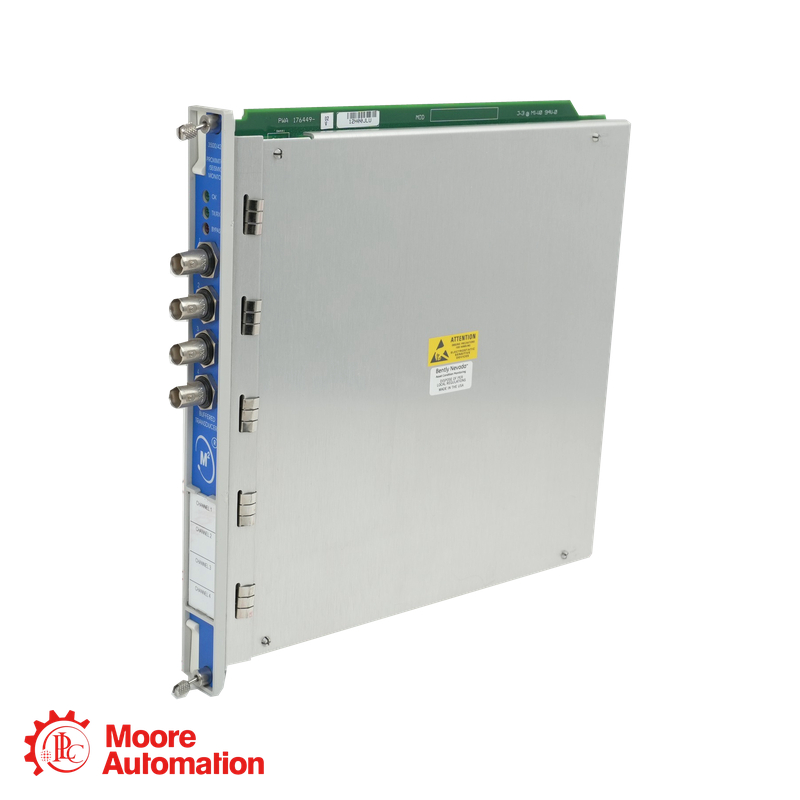

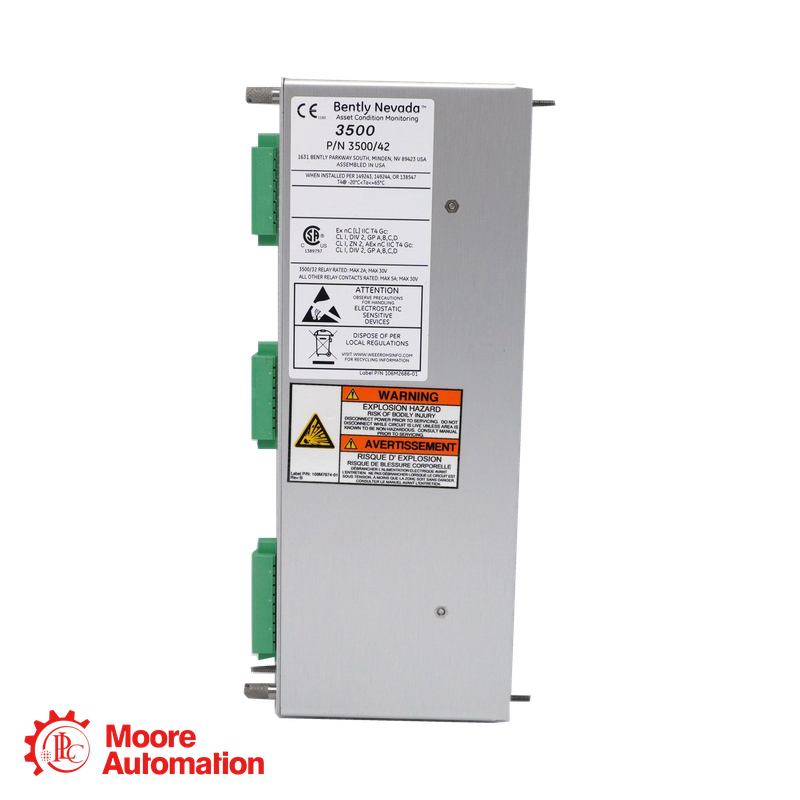

Bently Nevada 3500/42M-09-00 Proximitor Seismic Monitor
Bently Nevada 3500/42M-09-00 Proximitor Seismic Monitor
Bently Nevada 3500/42M-09-00 Proximitor Seismic Monitor

Bently Nevada 3500/42M-09-00 Proximitor Seismic Monitor

3500 SERIES · PROXIMITOR/SEISMIC MONITOR

3500/42M-09-00

3500/42M-09-00 — A four-channel Bently Nevada 3500/42M Proximitor Seismic Monitor configured with Prox/Velom I/O option 09 and internal terminations, with no hazardous-area approval option.

CHANNELS4
I/O MODULEPROX/VELOM I/O
POWER7.7 W TYPICAL
APPROVALNONE
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3500/42M PROXIMITOR SEISMIC MONITOR
3500/42M PROXIMITOR SEISMIC MONITOR

3500/42M-09-00

Four channels · Prox/Velom I/O · 7.7 W typical · No hazardous-area approval

3500/42M Proximitor Seismic Monitor

MACHINERY PROTECTION MONITORING
3500/42M-09-00 — This four-channel monitor accepts proximity, acceleration, Velomitor or HTVS signals through the option 09 Prox/Velom I/O module.
CONFIGURATION NOTE
3500/42M identifies the Proximitor Seismic Monitor; 09 specifies the Prox/Velom I/O module with internal terminations, and 00 specifies no hazardous-area approval.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

3500/42M
Base modelFour-channel Proximitor Seismic Monitor
09
I/O moduleProx/Velom I/O · Internal terminations
00
Approval optionNo hazardous-area approval
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3500/42M PROXIMITOR SEISMIC MONITOR

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT241.3 MM
WIDTH24.4 MM
DEPTH241.8 MM
WEIGHT0.91 KG
Values from the manufacturer datasheet.
Configuration check Confirm the complete order code, I/O termination option, approval requirement, connected transducer type and rack configuration before ordering.
General Information −
BrandBently Nevada
Part number3500/42M-09-00
Product typeProximitor Seismic Monitor
Product family3500 Machinery Protection System
ChannelsFour
Power consumption7.7 W typical
I/O Configuration ＋
I/O option09 · Prox/Velom I/O module
I/O part number140471-01
TerminationsInternal terminations
Transducer supportProx/Accel, Velomitor or HTVS
Environmental and Physical ＋
Operating temperature−30°C to +65°C
Storage temperature−40°C to +85°C
Humidity95%, noncondensing
Rack space1 full-height front slot + 1 full-height rear slot
Monitoring Functions ＋
Accepted signalsProximity, acceleration, Velomitor or HTVS signals
Channel programmingProgrammed in pairs; up to two functions at a time
Supported measurementsRadial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute, REBAM and circular acceptance region
FAQ

Questions Buyers Ask Most

What is 3500/42M-09-00 used for?＋

3500/42M-09-00 is a four-channel Proximitor Seismic Monitor used in the Bently Nevada 3500 Machinery Protection System. This four-channel monitor accepts proximity, acceleration, Velomitor or HTVS signals through the option 09 Prox/Velom I/O module.

What input configuration does 3500/42M-09-00 use?＋

3500/42M-09-00 uses 09 · Prox/Velom I/O module. Internal terminations.

Which measurements does 3500/42M-09-00 support?＋

3500/42M-09-00 supports Radial vibration, thrust position, differential expansion, eccentricity, acceleration, velocity, shaft absolute, REBAM and circular acceptance region.

What rack space does 3500/42M-09-00 require?＋

3500/42M-09-00 uses one full-height front rack slot, while its associated I/O module uses one full-height rear slot.

What should I provide for a 3500/42M-09-00 quotation?＋

3500/42M-09-00 should be quoted against the complete reference, installed rack configuration, connected transducer or signal type, quantity and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 3500/42M-09-00 order number, rack configuration and connected transducer details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
3500/42M-09-00

Official manufacturer documentation for the Bently Nevada 3500/42M Proximitor Seismic Monitor, its I/O configuration and ordering options.

Bently Nevada Datasheet 143694

Bently Nevada Datasheet 143694 identifies ordering option 09 as Prox/Velom I/O module 140471-01 with internal terminations; option 00 specifies no hazardous-area approval.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the Bently Nevada 3500/42M Proximitor Seismic Monitor Datasheet, Part Number 143694.

3500 MACHINERY PROTECTION SYSTEM

How 3500/42M-09-00 Fits into the 3500 System

Bently Nevada is the manufacturer. 3500/42M-09-00 is a four-channel Proximitor Seismic Monitor configured with Prox/Velom I/O option 09 and no hazardous-area approval option. It accepts proximity, velocity or acceleration transducer signals for machinery-protection measurements.

Bently Nevada · BRAND
Bently Nevada 3500 SystemPRODUCT FAMILY · MACHINERY PROTECTION
SIGNAL INPUT

Prox / Velocity Inputs

Accepts Prox/Accel, Velomitor or HTVS signals through the option 09 I/O module.

I/O CONFIGURATION

Internal Terminations

Option 09 uses Prox/Velom I/O module 140471-01 with internal terminations.

RACK POSITION

Front + Rear Slots

The monitor uses one full-height front slot and its I/O module one full-height rear slot.

System relationship: the 3500/42M monitor conditions transducer signals and compares them with user-programmable alarms in the 3500 machinery-protection rack.
APPLICATION AREAS

Functions and integration points for 3500/42M-09-00

Radial VibrationConditions proximity-transducer signals for radial vibration monitoring.
Thrust PositionSupports thrust-position measurement for protected rotating machinery.
APPLICATION CENTER 3500/42M-09-00 Four-channel Proximitor Seismic Monitor
Acceleration & VelocityAccepts acceleration or velocity signals supported by the Prox/Velom I/O module.
Differential ExpansionSupports differential-expansion and related shaft-position measurements.
