Configuration checkConfirm the complete nameplate, mating components and installation requirements before ordering.
General Information −
BrandBently Nevada

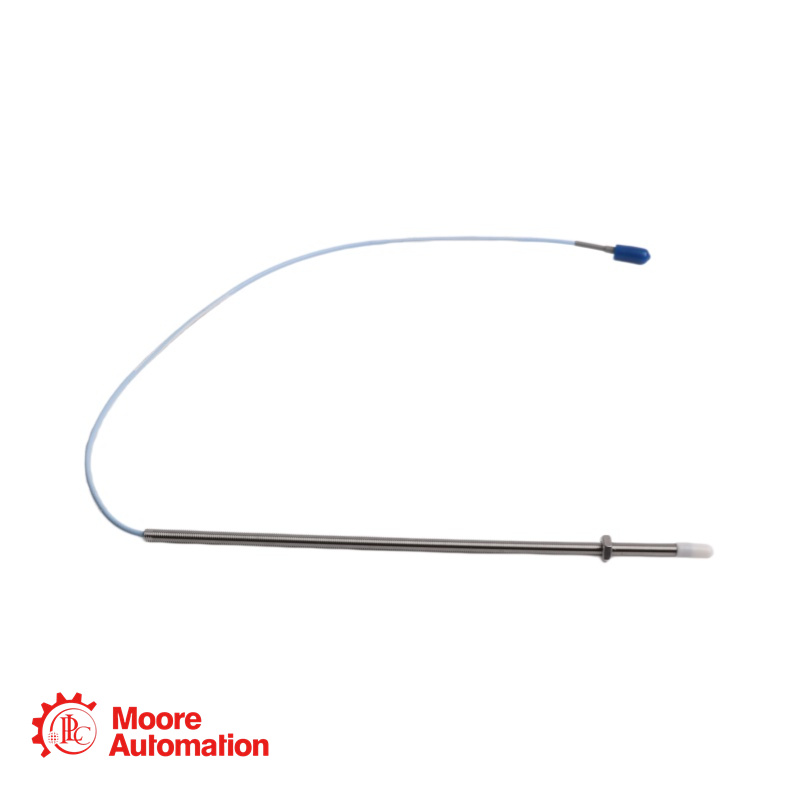

Part number330901-00-32-10-02-05
Product typeNSv Proximity Probe
Product family3300 XL NSv
Thread1/4-28 UNF
Cable protectionWithout armor
Detailed Measurement Data ＋
System linear range1.5 mm
Nominal system scale factor7.87 V/mm (200 mV/mil)
Recommended system gap1.0 mm
Cable and Installation ＋
Unthreaded length0 in
Case length3.2 in
Total length1.0 m
ConnectorMiniature coaxial ClickLoc; standard cable
Environment and Certification ＋
Verify the supplied markings, applicable approvals and installation limits against the current manufacturer documentation. A suffix alone does not establish suitability for a hazardous-area installation.
Source: Bently Nevada 147385 Rev. R. System values require the complete compatible transducer configuration and the manufacturer’s stated conditions.
FAQ
Questions Buyers Ask Most
What is 330901 used for?＋
An unarmored NSv probe for shaft monitoring where installation clearance is limited.
What does the 330901-00-32-10-02-05 code specify?＋
00: zero unthreaded length; 32: 3.2 in case; 10: 1.0 m total length; 02: standard-cable ClickLoc connector; 05: multiple approvals.
Can a similar part number be substituted?＋
Do not substitute by appearance or family name alone. Compare the full suffix, dimensions, connections and system configuration.
Is this a complete measurement system?＋
No. This probe requires a compatible extension cable where applicable, a matching Proximitor Sensor and monitoring equipment.
What should I provide for a quotation?＋
Send the complete 330901-00-32-10-02-05 nameplate, quantity, installed-system details and delivery destination.
CONTACT PRODUCT SPECIALIST
Check your configuration with Frida
Share the complete label and system details for compatibility, availability and lead-time checking.
Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.
3300 XL SYSTEM RELATIONSHIP
How 330901 Fits into the Measurement System
Bently Nevada is the manufacturer. 330901-00-32-10-02-05 is a nsv proximity probe. It must be matched to the installed 3300 XL NSv Proximity Transducer System.
3300 XL NSv SystemPRODUCT FAMILY · COMPLETE SYSTEM
SENSING COMPONENT
Probe
The 330901 probe is the sensing component. Confirm the exact mechanical fit before replacement.
INTERCONNECTION
Extension Cable
The extension cable links the probe to the Proximitor Sensor and helps establish the required electrical system length.
SIGNAL CONDITIONING
Proximitor Sensor
The Proximitor Sensor conditions the probe signal into a voltage output for monitoring and machinery protection equipment.
System relationship: compatible component types and total system length must match the Bently Nevada 3300 XL NSv system requirements.
APPLICATION AREAS
Application mind map for 330901
Restricted-space InstallationsFor compact probe locations and reduced side-view clearance.
Shaft MonitoringRadial vibration and shaft-position measurement.
APPLICATION CENTER
330901NSv Proximity Probe
Phase ReferenceSystem applications include Keyphasor and speed measurement.
Replacement CheckMatch NSv probe, cable, sensor and total system length.
