 /Bently Nevada 330851-02-000-060-10-00-05 3300 XL 25 mm Proximity Probe

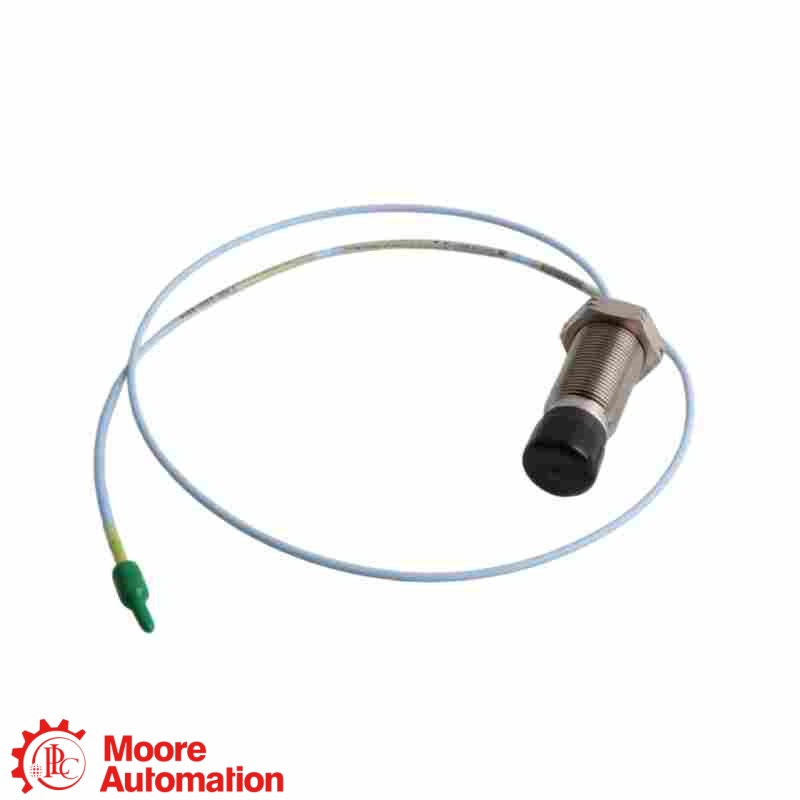

Bently Nevada 330851-02-000-060-10-00-05 3300 XL 25 mm Proximity Probe
Bently Nevada 330851-02-000-060-10-00-05 3300 XL 25 mm Proximity Probe
Bently Nevada 330851-02-000-060-10-00-05 3300 XL 25 mm Proximity Probe

Bently Nevada 330851-02-000-060-10-00-05 3300 XL 25 mm Proximity Probe

3300 XL · PROXIMITY PROBE

330851-02-000-060-10-00-05

330851-02-000-060-10-00-05 — A 3300 XL 25 mm proximity probe with an M30x2 threaded case, 0 mm unthreaded length, 60 mm overall case length, 1.0 m total length, no armor, and multiple agency approvals.

PROBE3300 XL 25 mm
CASE LENGTH60 mm
THREADM30x2
APPROVALMultiple
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL PROXIMITY
3300 XL 25 MM PROXIMITY PROBE

330851-02-000-060-10-00-05

M30x2 · 60 mm case · 1.0 m cable

3300 XL 25 mm Proximity Probe

PROBE CONFIGURATION
330851-02-000-060-10-00-05 — A 3300 XL 25 mm proximity probe with an M30x2 threaded case, 0 mm unthreaded length, 60 mm overall case length, 1.0 m FluidLoc cable, no armor and multiple agency approvals.
CONFIGURATION NOTE
330851 = 3300 XL 25 mm proximity probe; 02 = M30x2 threaded case; 000 = 0 mm unthreaded length; 060 = 60 mm overall case length; 10 = 1.0 m total length; 00 = no armor; and 05 = multiple agency approvals.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330851
Base model3300 XL 25 mm probe
02
Probe case typeM30x2 thread
000
Unthreaded length0 mm
060
Overall case length60 mm
10
Total length1.0 m · 3.3 ft
00
Armor optionNo armor
05
Agency approvalMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

VIEW OFFICIAL DATASHEET
3300 XL 25 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

CASE TYPEM30x2 thread
CASE LENGTH60 mm
TOTAL LENGTH1.0 m
ARMORNo armor
Configuration from manufacturer ordering data.
Configuration check Confirm the complete part number, case type, unthreaded length, case length, total probe length, armor, agency approvals, system length and target material before ordering.
General Information −
BrandBently Nevada
Part number330851-02-000-060-10-00-05
Product type3300 XL 25 mm proximity probe
Product family3300 XL 25 mm
Measurement principleEddy-current proximity probe
OutputUsed with a compatible 330850 Proximitor Sensor
Detailed Measurement Data ＋
Unthreaded length0 mm
Overall case length60 mm
Total probe length1.0 meter (3.3 feet)
Cable and Installation ＋
Case typeM30x2 threaded case
Case threadM30x2
Probe constructionWithout armor
Probe cable75 Ω PFA-insulated FluidLoc cable
Probe tip materialPolyetheretherketone (PEEK)
Environment and System Limits ＋
Probe operating and storage temperature: -35°C to +200°C (-31°F to +392°F). Confirm the complete compatible probe, extension cable and 330850 Proximitor Sensor system for the application.
Source: Bently Nevada Datasheet 163236 Rev. M. Bently Nevada Datasheet 163236 Rev. M defines the 330851 probe and options 02, 000, 060, 10, 00 and 05 for this complete configuration.
FAQ

Questions Buyers Ask Most

What is 330851-02-000-060-10-00-05 used for?＋

330851-02-000-060-10-00-05 is a 3300 XL 25 mm proximity probe used with a compatible extension cable and 330850 Proximitor Sensor for steam-turbine differential expansion measurement.

What does the 330851-02-000-060-10-00-05 code specify?＋

For 330851-02-000-060-10-00-05, 330851 identifies the 3300 XL 25 mm probe; 02 is the M30x2 case; 000 is 0 mm unthreaded length; 060 is 60 mm case length; 10 is 1.0 m total length; 00 is no armor; and 05 is multiple agency approvals.

Can 330851-02-000-060-10-00-05 be substituted with a similar part number?＋

Do not substitute 330851-02-000-060-10-00-05 by appearance or family name alone. Compare the complete order code, case type, unthreaded length, case length, total length, armor, approvals, target material and compatible 330850 Proximitor Sensor.

Is 330851-02-000-060-10-00-05 a complete measurement system?＋

No. 330851-02-000-060-10-00-05 is the probe component. A complete 3300 XL 25 mm system also requires the correctly matched extension cable and 330850 Proximitor Sensor, plus a compatible monitoring input.

What should I provide for a 330851-02-000-060-10-00-05 quotation?＋

Send the complete 330851-02-000-060-10-00-05 nameplate, quantity, required 5 m or 9 m system length, matching 330854 extension cable and 330850 Proximitor Sensor numbers, target material, installed monitor and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330851-02-000-060-10-00-05

Official manufacturer documentation and system context for Bently Nevada 330851-02-000-060-10-00-05.

Official manufacturer datasheet

Bently Nevada Datasheet 163236 Rev. M identifies 330851 as the 3300 XL 25 mm proximity probe and defines options 02, 000, 060, 10, 00 and 05 for this complete configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Bently Nevada Datasheet 163236 Rev. M supports the complete 330851-02-000-060-10-00-05 configuration: M30x2 threaded case, 0 mm unthreaded length, 60 mm case length, 1.0 m total length, no armor and multiple agency approvals.

PROXIMITY SYSTEM RELATIONSHIP

How 330851-02-000-060-10-00-05 Fits into the 3300 XL Measurement Chain

Bently Nevada is the manufacturer. 330851-02-000-060-10-00-05 is the 3300 XL 25 mm probe component. It must be matched to a compatible 330854 extension cable and 330850 Proximitor Sensor for the required 5 m or 9 m total system length.

Bently Nevada · BRAND
3300 XL 25 mm SystemPRODUCT FAMILY · MEASUREMENT CHAIN
PROXIMITY PROBE

3300 XL 25 mm Probe

The probe senses the distance to a conductive target for static position and dynamic vibration measurements. Confirm case type, case dimensions, total length, armor and agency approval options.

EXTENSION CABLE

330854 Extension Cable

The matched 330854 extension cable combines with the 1.0 m probe lead to equal the 330850 Proximitor Sensor system length and preserves the specified 3300 XL electrical performance.

SIGNAL CONDITIONING

330850 Proximitor Sensor

The compatible Proximitor Sensor conditions the probe signal into a voltage proportional to the gap between the probe tip and the conductive target.

System relationship: the probe, extension cable and Proximitor Sensor must form the required total system length and must match the target material and monitoring application.
APPLICATION AREAS

Application areas for 330851-02-000-060-10-00-05

Steam Turbine Differential ExpansionMeasures rotor-to-casing growth in steam-turbine supervisory instrumentation systems.
Complementary Input Differential ExpansionSupports complementary-input differential expansion arrangements with the correct matched hardware.
APPLICATION CENTER 330851-02-000-060-10-00-05 3300 XL 25 mm Proximity Probe
Single Differential ExpansionSupports single differential expansion measurement with the correct sliding-bracket arrangement.
Turbine Supervisory InstrumentationProvides extended-range displacement measurement for compatible steam-turbine monitoring systems.
