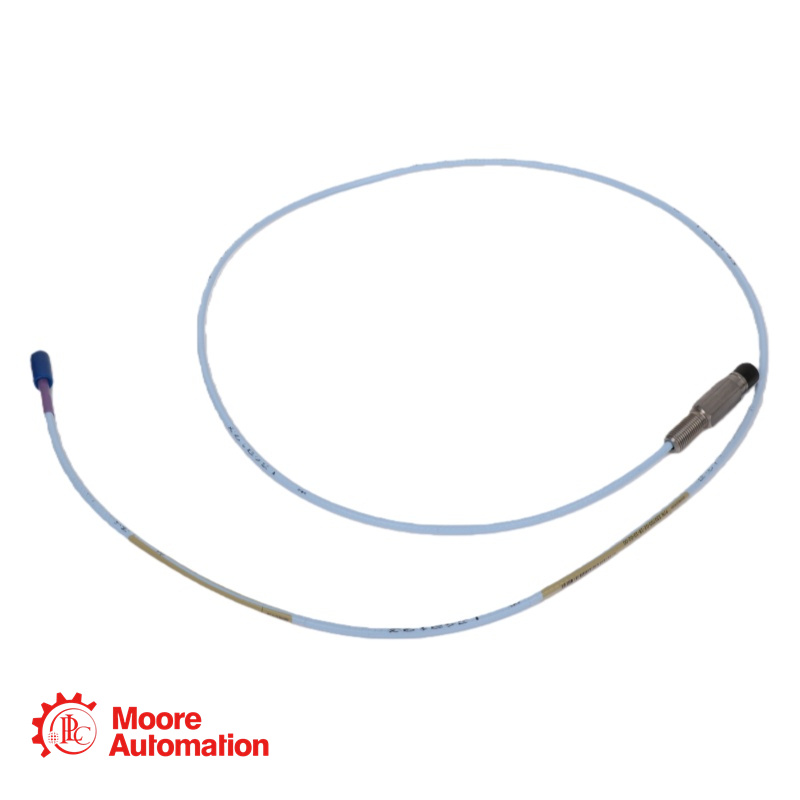

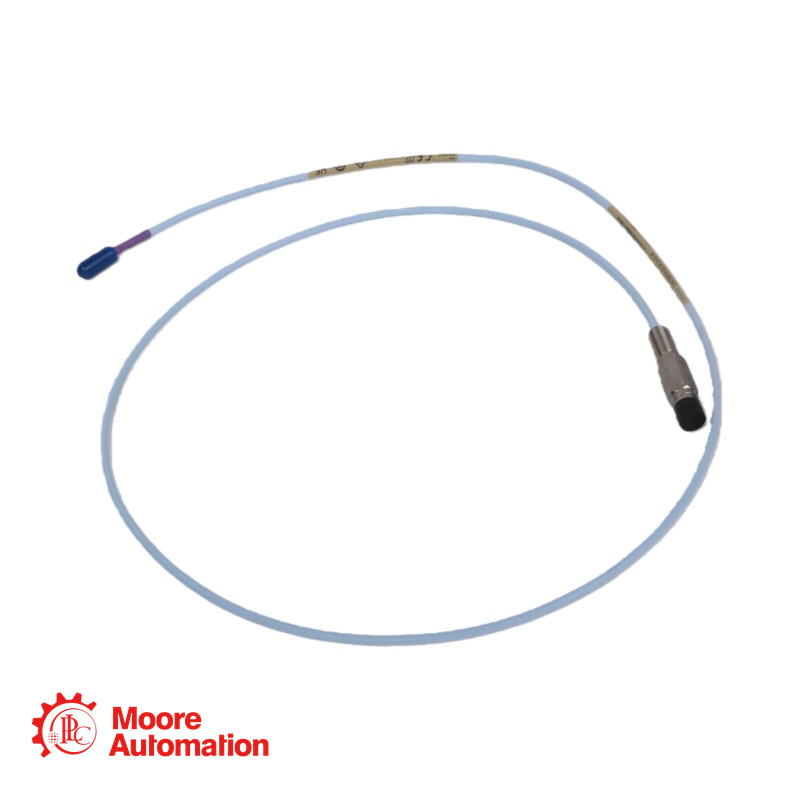

Bently Nevada 330705-02-18-10-02-CN Reverse Mount Probe
Bently Nevada 330705-02-18-10-02-CN Reverse Mount Probe
Bently Nevada 330705-02-18-10-02-CN Reverse Mount Probe

Bently Nevada 330705-02-18-10-02-CN Reverse Mount Probe

Bently Nevada 330705-02-18-10-02-CN Reverse Mount Probe, 3/8-24 UNF threads
  • Бренд :

    Bently Nevada
  • номер части :

    330705-02-18-10-02-CN
  • Масса :

    0.05kg
  • Измерение :

    1.2x1x122cm
  • Страна происхождения :

    USA
  • Код ТН ВЭД :

    8537101190
  • Описание :

    Reverse Mount Probe

Request a Quote

Sales Manager: Frida

Email:sales5@mooreplc.com

Phone/Whatsapp/Wechat:+86 15359408275



General Description

Technical Data

330705-02-18-10-02-CN is a Reverse Mount Probe, 3/8-24 UNF threads

Probe Type: Standard mount, forward-facing
Thread Type: M14 x 1.5 metric
Armor: Yes (Flexible AISI 302 stainless steel armor with FEP outer jacket)
Probe Tip Diameter: 11 mm
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 304 stainless steel
Cable Type: Armored 75 Ω triaxial cable with fluoroethylene propylene (FEP) insulation
Connector Type: Miniature coaxial ClickLoc connector (gold-plated brass)
Connector Protector: Not included (option code 02 = standard cable, no protector)
Unthreaded Length (Option A): 000 = 0 mm (fully threaded)
Overall Case Length (Option B): 070 = 70 mm
Total Cable Length (Option C): 10 = 1.0 meter
Cable & Connector Option (Option D): 02 = Miniature coaxial ClickLoc connector, standard armored cable
Agency Approval (Option E): CN = Country-specific approval (likely China RoHS or CNEx)
Temperature Range (Operating/Storage): -52°C to +177°C (-62°F to +351°F)
Tensile Strength (Cable to Probe): 330 N (75 lb)
Minimum Bend Radius: 25.4 mm (1.0 in)
Thread Engagement Limit: Maximum 21 mm (per industry standard 1.5x nominal diameter)
Wrench Flat Size: Supplied with 22 mm locknut and 12 mm wrench flats
Linear Range: 4.0 mm (160 mils) from 0.5 mm to 4.5 mm gap
Scale Factor: 3.94 V/mm (100 mV/mil) ±10%
Frequency Response: 0 to 8 kHz


FAQs

Q:Is 330705-02-18-10-02-CN new and original?

A:100% full New! - Original Factory Seal!

Q:What is this 330705-02-18-10-02-CN compatible with?

A:3300 XL 11 mm Proximitor Sensors (e.g., 330780-xx-xx), 3300 XL 11 mm Extension Cables (e.g., 330730-xxx-xx-xx), 3300/3500 Monitoring Systems

Q:What payment methods can be used?

A:Payment Term: T/T

Q:Can I see the picture or video of 330705-02-18-10-02-CN?

A:Yes, we can take the picture and video before shiping
