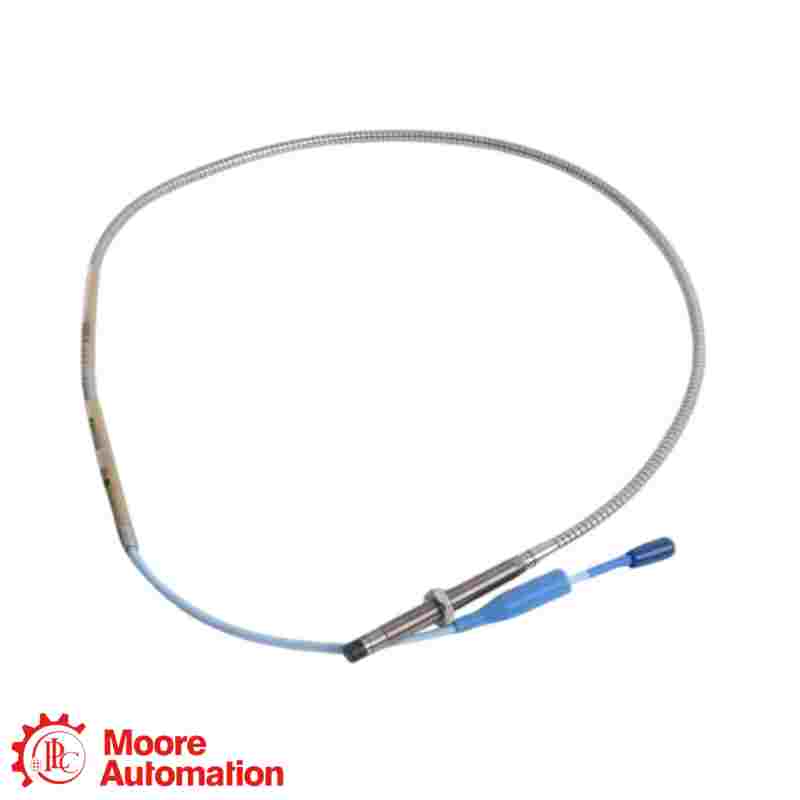

Bently Nevada 330104-01-08-05-11-05 3300 XL 8 mm Proximity Probe

Bently Nevada 330104-01-08-05-11-05 3300 XL 8 mm Proximity Probe

BENTLY NEVADA · 3300 XL 8 MM PROXIMITY PROBE

330104-01-08-05-11-05

The 330104-01-08-05-11-05 is a Bently Nevada 3300 XL 8 mm proximity probe with M10 × 1 thread and flexible stainless-steel armor. The ordered configuration specifies 10 mm unthreaded length, 80 mm overall case length, 0.5 m total length, a ClickLoc connector with protector and FluidLoc cable, plus CSA, ATEX and IECEx approvals.

PROBE MODEL330104
THREAD / ARMORM10 × 1 · Armored
TOTAL LENGTH0.5 m
CABLE / APPROVALSFluidLoc · 05
MANUFACTURERBently Nevada
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATIONProduct photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ↗3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM

330104-01-08-05-11-05

330104

M10 × 1 thread · armored · 0.5 m FluidLoc cable

PRODUCT ROLE

330104-01-08-05-11-05 identifies a Bently Nevada 3300 XL 8 mm proximity probe configured for non-contact vibration and position measurement in a matched transducer system.

CONFIGURATION NOTE

For 330104-01-08-05-11-05, the published ordering fields specify 10 mm unthreaded length, 80 mm case length, 0.5 m total length, a protected ClickLoc connector with FluidLoc cable, and CSA, ATEX and IECEx approvals. Verify the complete installed transducer system before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆
ORDER NUMBER BREAKDOWN

How the 330104-01-08-05-11-05 order number is structured

330104
Probe model3300 XL 8 mm probe · M10 × 1 thread · armored
01
Unthreaded length10 mm
08
Overall case length80 mm
05
Total length0.5 meter (1.6 feet)
11
Connector / cableClickLoc connector with protector · FluidLoc cable
05
Agency approvalsCSA · ATEX · IECEx approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

PUBLIC DOCUMENTATION CHECK
330104 · 3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Verify the M10 × 1 mounting thread, 10 mm unthreaded length, 80 mm case length, 0.5 m FluidLoc cable and installed 3300 XL 8 mm system before replacement.

PROBE MODEL330104
CASE LENGTH80 mm
TOTAL LENGTH0.5 m
CABLE OPTION11 · FluidLoc
Baker Hughes datasheet 141194 identifies 330104 as the armored M10 × 1 probe and decodes every ordered option in 330104-01-08-05-11-05.
GENERAL INFORMATION＋
ManufacturerBently Nevada
Model330104-01-08-05-11-05
Product type3300 XL 8 mm Proximity Probe
Transducer system3300 XL 8 mm
Total probe length05 · 0.5 meter (1.6 feet)
Mounting threadM10 × 1 · with armor
ORDER NUMBER CHECK＋
Unthreaded length01 · 10 mm
Overall case length08 · 80 mm
Total probe length05 · 0.5 meter (1.6 feet)
Mounting threadM10 × 1 · with armor · retain as marked
SYSTEM & ELECTRICAL COMPATIBILITY＋
Compatible system3300 XL 8 mm probe, extension cable and Proximitor sensor
Linear measurement range2 mm (80 mils) for the matched 3300 XL 8 mm system
Incremental scale factor7.87 V/mm (200 mV/mil) for a standard matched system
Frequency response0 to 10 kHz, +0/-3 dB for the matched system
INSTALLATION & REPLACEMENT CHECK＋
Mechanical fitM10 × 1 thread · 10 mm unthreaded · 80 mm case length
ApprovalsOption 05 · CSA, ATEX and IECEx Approvals
Cable construction0.5 m FluidLoc cable · protected ClickLoc connector · armor
CommissioningVerify probe gap, matched system length and monitor settings after installation
FAQ

Questions Buyers Ask Most

What type of product is 330104-01-08-05-11-05?＋
330104-01-08-05-11-05 is a Bently Nevada 3300 XL 8 mm proximity probe with M10 × 1 thread and flexible stainless-steel armor.
How is the 330104-01-08-05-11-05 order number decoded?＋
In 330104-01-08-05-11-05, 330104 identifies the armored M10 × 1 probe; 01 specifies 10 mm unthreaded length; 08 specifies 80 mm overall case length; the first 05 specifies 0.5 m total length; 11 specifies a protected ClickLoc connector with FluidLoc cable; and the final 05 specifies CSA, ATEX and IECEx approvals.
What mechanical configuration does 330104-01-08-05-11-05 use?＋
330104-01-08-05-11-05 uses an M10 × 1 threaded armored probe body with 10 mm unthreaded length and 80 mm overall case length.
What cable and connector are supplied with 330104-01-08-05-11-05?＋
330104-01-08-05-11-05 specifies 0.5 m total probe length, a miniature coaxial ClickLoc connector with connector protector, and FluidLoc cable.
Which approvals are specified for 330104-01-08-05-11-05?＋
330104-01-08-05-11-05 uses agency-approval option 05, which the manufacturer ordering table defines as CSA, ATEX and IECEx approvals. Confirm the delivered marking matches the installation requirements.
Can 330104-01-08-05-11-05 directly replace another 3300 XL 8 mm probe?＋
330104-01-08-05-11-05 should be used only after the thread, armor, case and unthreaded lengths, cable construction, electrical system length, approvals, target material and connected Proximitor sensor all match the installed system.
Which official document supports 330104-01-08-05-11-05?＋
Baker Hughes datasheet 141194 for the 3300 XL 8 mm Proximity Transducer System supports 330104-01-08-05-11-05 and its ordering-code options. Provide the full code and nameplate details when requesting replacement support.
CONTACT PRODUCT SPECIALIST

Confirm your 330104-01-08-05-11-05 reference with Frida

Share the complete model and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
OFFICIAL DATASHEET

Product Information for 330104-01-08-05-11-05

Official manufacturer documentation for the complete 330104-01-08-05-11-05 3300 XL 8 mm Proximity Probe order number.

Official manufacturer datasheet

Baker Hughes datasheet 141194 covers the 3300 XL 8 mm proximity transducer system and lists 330104 as the armored M10 × 1 probe. Its ordering table defines the complete 01-08-05-11-05 configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, nameplate details and your technical or purchasing question.

Baker Hughes datasheet 141194 identifies the 330104 probe family and decodes the complete 01-08-05-11-05 ordering sequence.
3300 XL 8 MM PROXIMITY TRANSDUCER SYSTEM RELATIONSHIP

How 330104-01-08-05-11-05 Fits into a Proximity Measurement Chain

Bently Nevada is the brand; the 3300 XL 8 mm Proximity Transducer System is the measurement family; and 330104-01-08-05-11-05 is the complete ordered 3300 XL 8 mm proximity-probe reference.

Bently Nevada · BRAND
3300 XL 8 mm SystemPRODUCT FAMILY · MEASUREMENT
SENSING COMPONENT

Proximity Probe

The configured armored M10 × 1 probe detects relative shaft vibration or position without contacting the target.

INTERCONNECTION

Extension Cable

The matched cable carries the probe signal while preserving the calibrated electrical length.

SIGNAL CONDITIONING

Proximitor Sensor

A matched 3300 XL Proximitor sensor conditions the signal from the 330104-01-08-05-11-05 probe for the monitoring channel.

System relationship: the complete probe reference, extension cable, Proximitor sensor, total electrical length, target material and monitor channel must all match.
APPLICATION AREAS

Application mind map for 330104-01-08-05-11-05

Non-contact SensingMeasures relative shaft vibration or position without contacting the target
Gap VoltageSupports static-gap verification in the calibrated transducer chain
APPLICATION CENTER330104-01-08-05-11-053300 XL 8 mm Proximity Probe
Monitoring InterfaceFeeds the conditioned signal to the compatible monitor channel
Replacement CheckMatch the M10 × 1 thread, armor, lengths, FluidLoc cable, approvals and installed transducer system
