Detailed Description

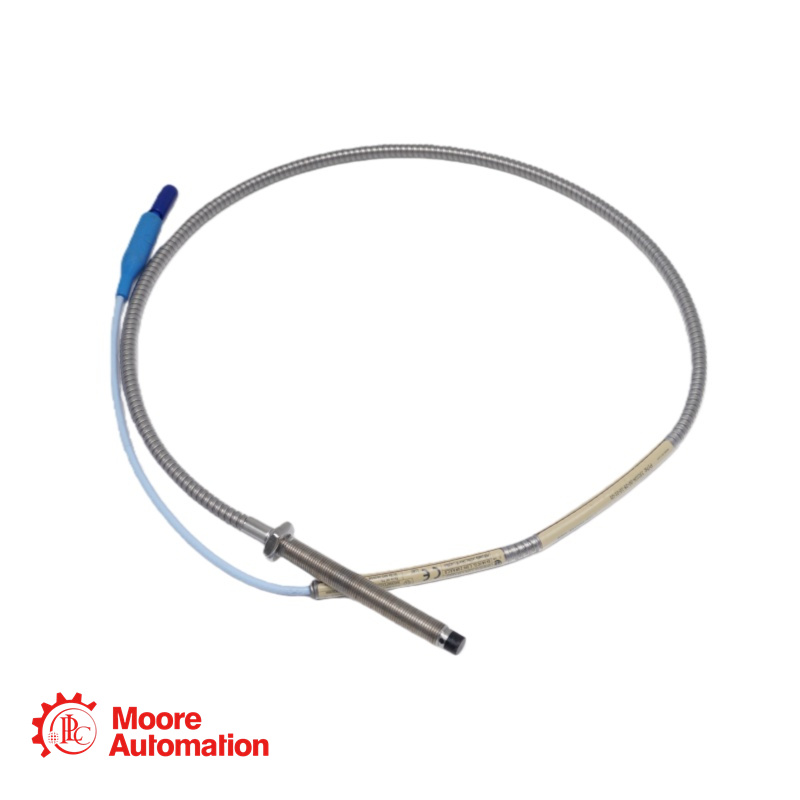

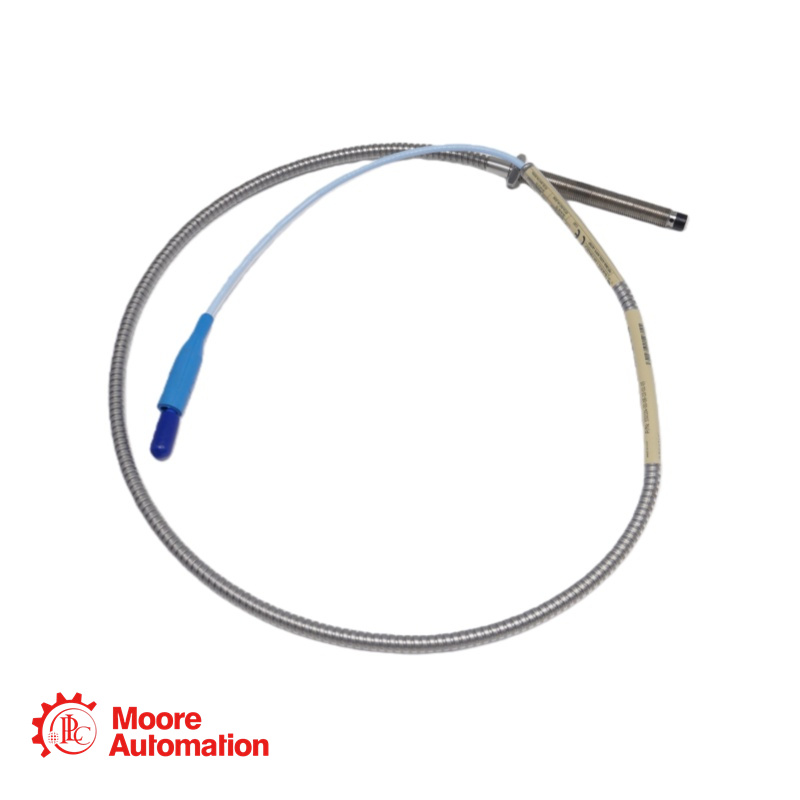

330104-00-08-50-12-00 is a 3300 XL 8 mm Proximity Probe, M10 x 1 metric thread, armored, with 0 mm unthreaded length, 80 mm case length, 5.0 m total cable length, equipped with a ClickLoc connector and FluidLoc cable (oil‑blocking seal), without hazardous area agency approvals.

Model: 330104-00-08-50-12-00
Base model: 330104 (3300 XL 8 mm Probe, M10 x 1 thread, with armor)
AA = 00: Unthreaded length = 0 mm (minimum)
BB = 08: Overall case length = 80 mm
CC = 50: Total probe cable length = 5.0 meters
DD = 12: Connector and Cable Type = Miniature coaxial ClickLoc connector, FluidLoc cable (oil‑resistant sealing)
EE = 00: Agency Approval Option = Not required (standard compliance only, e.g., CE, RoHS)
Thread: M10 x 1 mm.
Armor: Yes – flexible AISI 302/304 stainless steel with FEP outer jacket.
FluidLoc Cable: Prevents oil/liquid ingress through cable core.
Cable Length: 5.0 meters – designed for use with a 5‑meter Proximitor sensor (e.g., 330180‑50‑xx, 330180‑51‑xx, or 330180‑52‑xx). Do not use with a 9‑meter system.
Probe Tip Material: PPS.
Case Material: AISI 303/304 Stainless Steel.
Operating Temperature: Standard: -52°C to +177°C.
Linear Range: 2.0 mm.
Scale Factor: 7.87 V/mm ±6.5% (for 5‑meter systems).

About the System

The 3300 XL 8 mm Proximity Transducer System consists of:
One 3300 XL 8 mm probe,
One 3300 XL extension cable1
One 3300 XL Proximitor Sensor2.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static(position) and dynamic (vibration) values. The system's primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.
