Bently Nevada 330101-00-49-10-12-05 Proximity Probe

Description

Specification

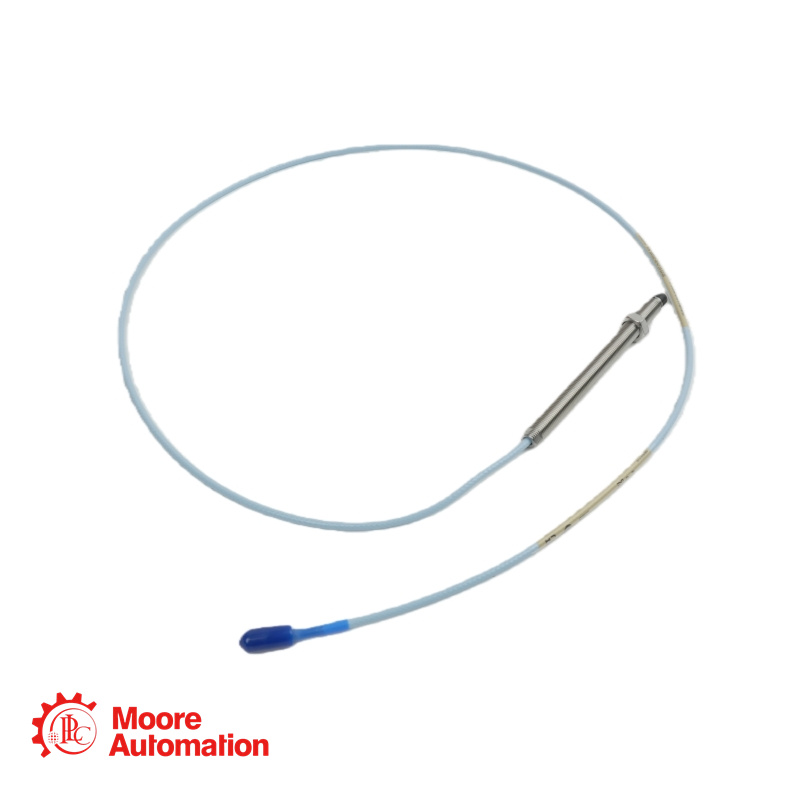

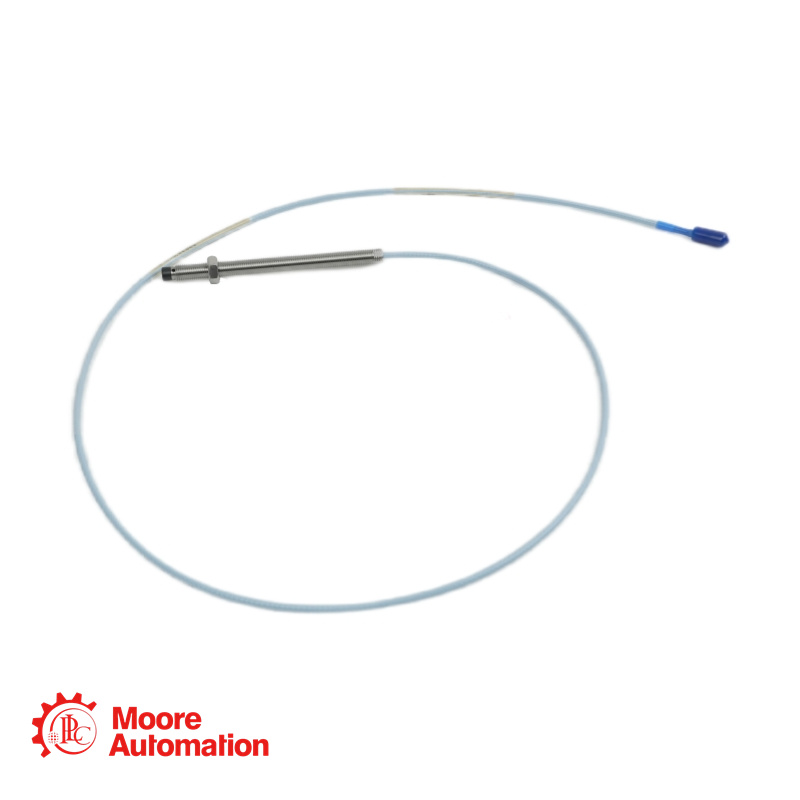

This is an 8mm proximity probe with a 1-meter FluidLoc cable designed to prevent fluid ingress along the cable core. It features a 4.9-inch long fully threaded case and carries multiple hazardous area approvals. The probe is unarmored and intended for applications in classified environments where oil contamination is a potential issue.

Base Part Number: 330101
Probe Type: 3300 XL 8 mm Proximity Probe
Thread Type: 3/8-24 UNF
Armor: Without armor
Unthreaded Length (Option A): 00 - 0.0 inches
Overall Case Length (Option B): 49 - 4.9 inches
Total Length (Option C): 10 - 1.0 meter (3.3 feet)
Connector and Cable Type (Option D): 12 - Miniature coaxial ClickLoc connector, FluidLoc cable
Agency Approval (Option E): 05 - CSA, ATEX, IECEx Approvals
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 Stainless Steel (SST)
Cable Type: 750 triaxial, FluidLoc option (prevents oil and other liquids from wicking through the cable's interior)
Tensile Strength: 330 N (75 lbf) probe case to probe lead
Connector Material: Gold-plated brass or gold-plated beryllium copper
Operating & Storage Temperature: -52°C to +177°C (-62°F to +350°F)
Nominal DC Resistance (RPROBE): 7.59 ± 0.50 Ω
