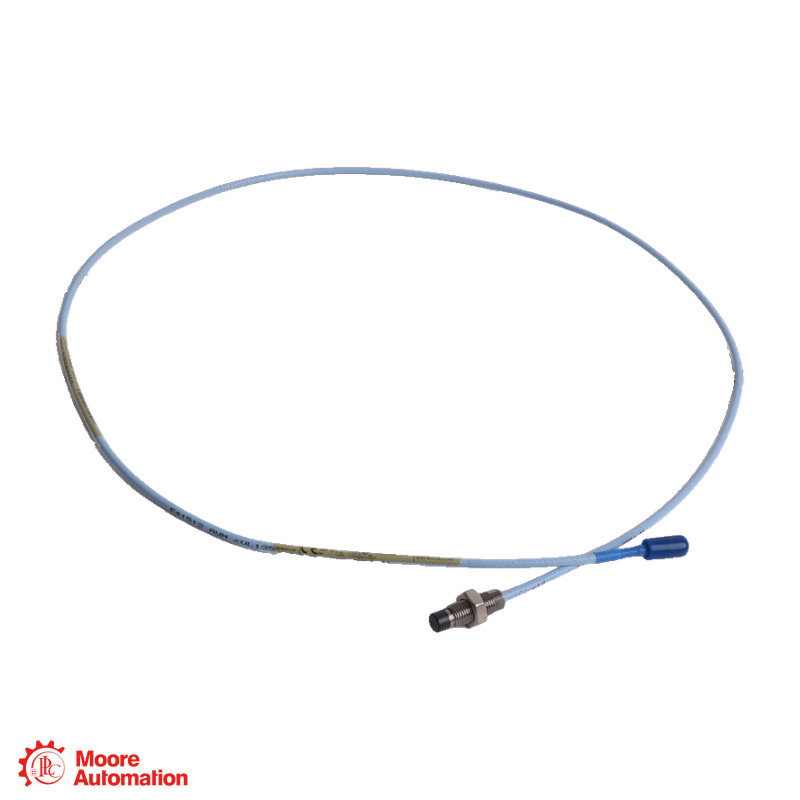

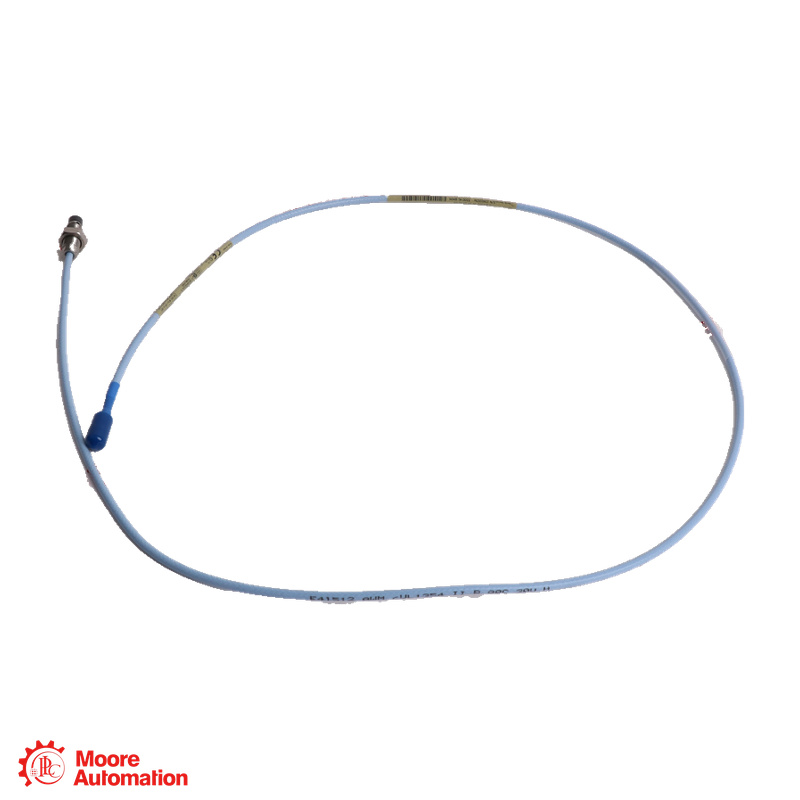

Bently Nevada 330101-00-10-10-11-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-10-10-11-00 3300 XL 8 mm Proximity Probe
Bently Nevada 330101-00-10-10-11-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330101-00-10-10-11-00 3300 XL 8 mm Proximity Probe

3300 XL 8 MM · PROXIMITY PROBE

330101-00-10-10-11-00

330101-00-10-10-11-00 — a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF thread, no armor, 1.0 in case length, 1.0 m total length, FluidLoc cable and protected ClickLoc connector.

UNTHREADED0.0 in
CASE LENGTH1.0 in
TOTAL LENGTH1.0 m
THREAD3/8-24 UNF
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 XL 8 MM PROXIMITY PROBE
3300 XL 8 MM PROXIMITY PROBE

330101-00-10-10-11-00

3/8-24 UNF · 1.0 m · ClickLoc

3300 XL 8 mm Proximity Probe

3300 XL 8 MM PROXIMITY MEASUREMENT
330101-00-10-10-11-00 — A Bently Nevada 3300 XL 8 mm probe with a 3/8-24 UNF thread, no armor, 0.0 in unthreaded length, 1.0 in case length, 1.0 m total length, and a protected ClickLoc connector with FluidLoc cable.
CONFIGURATION NOTE
330101 identifies the 3300 XL 8 mm unarmored 3/8-24 UNF probe; 00 and 10 specify 0.0 in unthreaded and 1.0 in overall case lengths; 10 gives 1.0 m total length; 11 gives a ClickLoc connector with protector and FluidLoc cable; final 00 indicates agency approval is not required in the ordering table.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

330101
Base probe3300 XL 8 mm · 3/8-24 UNF · no armor
00
Unthreaded length0.0 in
10
Overall case length1.0 in
10
Total probe length1.0 m
11
Connector and cableClickLoc with protector · FluidLoc cable
00
Agency approvalsNot required
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

UNTHREADED0.0 in
CASE LENGTH1.0 in
TOTAL LENGTH1.0 m
THREAD3/8-24 UNF
Exact-model configuration and engineering data.
Configuration note 330101 identifies the 3300 XL 8 mm unarmored 3/8-24 UNF probe; 00 and 10 specify 0.0 in unthreaded and 1.0 in overall case lengths; 10 gives 1.0 m total length; 11 gives a ClickLoc connector with protector and FluidLoc cable; final 00 indicates agency approval is not required in the ordering table.
General Information −
BrandBently Nevada
Part number330101-00-10-10-11-00
Product typeProximity Probe
Product family3300 XL 8 mm Transducer System
Case thread3/8-24 UNF
ArmorNone
Probe Geometry and Length ＋
Unthreaded length00 · 0.0 in
Overall case length10 · 1.0 in
Probe total length10 · 1.0 m
Connector and Approval ＋
Connector option11 · ClickLoc with protector
Cable typeFluidLoc cable
Agency approval00 · Not required
Transducer System Role ＋
This 3300 XL 8 mm probe forms the sensing end of a matched Bently Nevada proximity transducer system. Select a compatible extension cable and Proximitor Sensor so the installed system length and application match the manufacturer documentation.
FAQ

Questions Buyers Ask Most

What does 330101-00-10-10-11-00 identify?＋

330101-00-10-10-11-00 is a Bently Nevada 3300 XL 8 mm proximity probe with a 3/8-24 UNF case thread and no armor. It is the sensing probe of a compatible transducer system, not the signal-conditioning unit.

What do the 00 and 10 geometry fields mean on 330101-00-10-10-11-00?＋

For 330101-00-10-10-11-00, the first 00 specifies 0.0 in unthreaded length and 10 specifies a 1.0 in overall case length. Confirm the mounting position and mechanical clearance against the installed machine before ordering or fitting the probe.

Which length and connector are specified for 330101-00-10-10-11-00?＋

330101-00-10-10-11-00 uses a 1.0 m total probe length under the 10 field. Option 11 provides a miniature coaxial ClickLoc connector with protector and FluidLoc cable. Match the extension cable and Proximitor Sensor to the intended system length.

What does the final 00 approval field specify for 330101-00-10-10-11-00?＋

The final 00 in 330101-00-10-10-11-00 means agency approval is not required in the Bently Nevada ordering table. If the installation requires an approval, verify the applicable documentation and order the correctly marked variant.

What should be checked before installing or ordering 330101-00-10-10-11-00?＋

Check the complete 330101-00-10-10-11-00 code, 3/8-24 UNF mounting thread, 1.0 in case length, 1.0 m probe length, protected ClickLoc and FluidLoc cable, compatible extension cable and Proximitor Sensor, site approval needs, quantity and installed-system details.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330101-00-10-10-11-00 label, mounting geometry, extension cable and Proximitor Sensor selection, site approval requirement and quantity for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330101-00-10-10-11-00

Manufacturer ordering information for the 3300 XL 8 mm proximity probe and the options shown in this complete reference.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 lists the 330101 unarmored 3/8-24 UNF probe and defines the 00, 10, 10, 11 and 00 ordering options used in this complete configuration.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL 8 MM SYSTEM RELATIONSHIP

How 330101-00-10-10-11-00 Fits into the 3300 XL 8 mm Transducer System

Bently Nevada is the manufacturer. 330101-00-10-10-11-00 is the 8 mm sensing probe. Its tip faces the conductive shaft surface; a compatible extension cable connects the probe to a matched 3300 XL Proximitor Sensor for the selected system length.

Bently Nevada · BRAND
Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · PROXIMITY TRANSDUCER SYSTEM
SENSING TARGET

Conductive Shaft Surface

The probe tip senses shaft-to-tip distance without contact.

EXTENSION CABLE

Matched Cable Length

Select the extension cable for the intended overall system length.

PROXIMITOR SENSOR

Signal Conditioning

A compatible 3300 XL Proximitor Sensor converts the probe signal for monitoring.

System relationship: the 1.0 m probe connects through a matching extension cable to the appropriate 3300 XL Proximitor Sensor; confirm the configured system length before installation.
APPLICATION AREAS

Functions and application roles for 330101-00-10-10-11-00

Shaft VibrationUse within a matched 3300 XL 8 mm system for non-contact shaft-vibration measurement.
Shaft PositionUse the transducer system to measure static shaft position at a conductive target.
APPLICATION CENTER 330101-00-10-10-11-00 3300 XL 8 mm Proximity Probe
Keyphasor ReferenceA properly installed proximity system can provide speed or phase-reference signals.
Fluid-Film BearingsThe 3300 XL 8 mm system is applied to vibration and position measurement on fluid-film bearing machines.
