 /Bently Nevada 31000-32-05-15-030-02-02 31000 Proximity Probe Housing Assembly

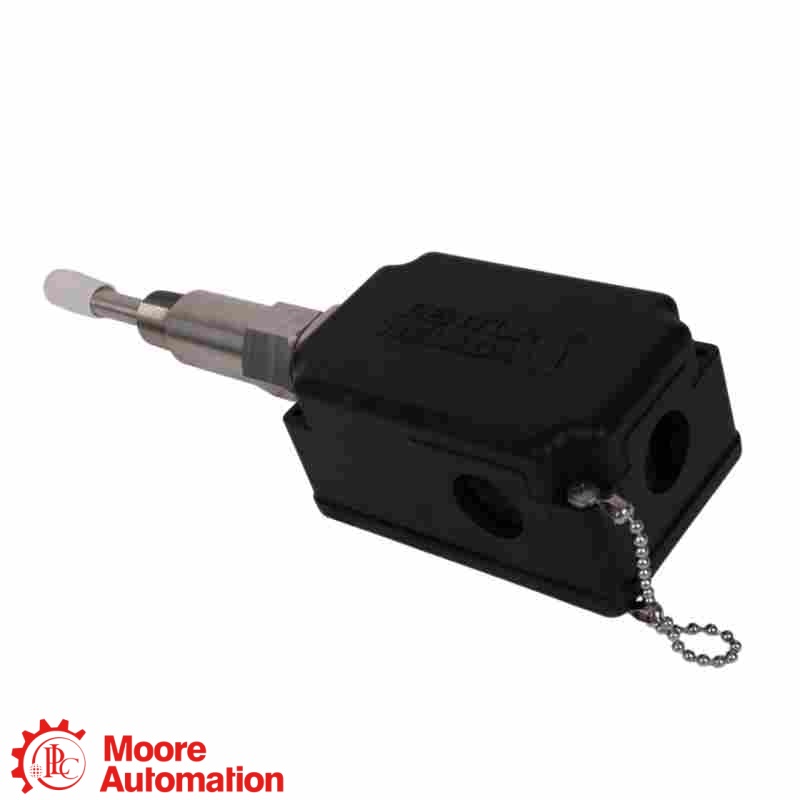

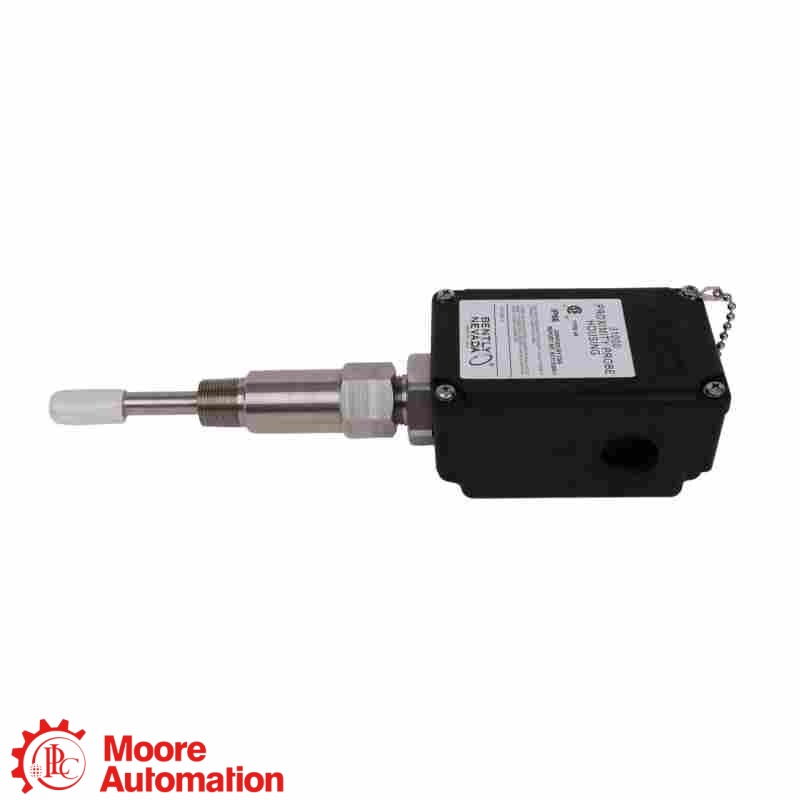

Bently Nevada 31000-32-05-15-030-02-02 31000 Proximity Probe Housing Assembly
Bently Nevada 31000-32-05-15-030-02-02 31000 Proximity Probe Housing Assembly
Bently Nevada 31000-32-05-15-030-02-02 31000 Proximity Probe Housing Assembly

Bently Nevada 31000-32-05-15-030-02-02 31000 Proximity Probe Housing Assembly

31000 · PROXIMITY PROBE HOUSING

31000-32-05-15-030-02-02

31000-32-05-15-030-02-02 - An externally accessible probe housing for radial vibration or Keyphasor installations through the machine case.

PRODUCTProximity probe housing
PROBE OPTION3300 XL NSv · protected connector · approvals
HOUSINGPPS · Type 4X / IP66
USERadial vibration · Keyphasor
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 31000 / 32000 HOUSING
PROXIMITY PROBE HOUSING

31000-32-05-15-030-02-02

3300 XL NSv · protected connector · approvals · 0.5 m (20 in)

31000 Proximity Probe Housing Assembly

INSTALLATION ROLE
31000-32-05-15-030-02-02 - Provides mechanical and environmental protection while allowing external probe gap adjustment or replacement without machine disassembly.
ORDERED CONFIGURATION
Options 32-05-15-030-02-02 specify 3300 XL NSv probe with connector protector, multiple approvals, 0.5 m (20 in) cable, 1.5 in (38 mm), 3.0 in (76 mm) penetration, two 3/4-14 npt fittings · one plug and 3/4-14 NPT mounting thread.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

31000
Base model31000 Proximity Probe Housing Assembly
32
Probe option3300 XL NSv probe with connector protector, multiple approvals
05
Probe cable length0.5 m (19.7 in)
15
Standoff length1.5 in (38 mm)
030
Penetration length3.0 in (76 mm)
02
Conduit fittingsTwo 3/4-14 NPT fittings and one plug
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

31000 / 32000 Official Datasheet PDF ↗
31000 PROXIMITY PROBE HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

PROTECTIONType 4X · IP66
HOUSINGPPS thermoplastic
WEIGHT1.2 kg (2.6 lb) typical
APIAPI 670 compliant
Manufacturer specifications for the 31000 / 32000 housing family.
Installation check Confirm the complete ordering code, probe system, mounting thread, penetration and conduit arrangement before installation.
General Information −
BrandBently Nevada
Part number31000-32-05-15-030-02-02
Product type31000 Proximity Probe Housing Assembly
Product family31000 / 32000 Proximity Probe Housing Assemblies
Primary applicationRadially mounted vibration or Keyphasor transducers
External accessProbe gap adjustment or probe replacement without machine disassembly
Ordering Configuration ＋
Probe option3300 XL NSv probe with connector protector, multiple approvals
Probe cable0.5 m (20 in)
Standoff / penetration1.5 in (38 mm) · 3.0 in (76 mm) · C+D 4.5 in (114 mm)
Mechanical and Environmental ＋
Housing materialGlass-reinforced PPS thermoplastic with conductive fibers
Protection ratingType 4X · IP66
Sleeve materialsAISI 304 stainless steel inner sleeve · AISI 303 outer sleeve
Recommended retaining-nut torque29.4 N·m (260 in·lb)
Fittings / mountingTwo 3/4-14 NPT fittings · one plug · 3/4-14 NPT
Installation Limits and Handling ＋
Typical housing weight is 1.2 kg (2.6 lb). The housing provides mechanical and environmental protection and is not an explosion-proof enclosure.
Source: Bently Nevada 141610 Rev. R. Verification values are relative to the actual compatible transducer system under the manufacturer stated conditions.
FAQ

Questions Buyers Ask Most

What is 31000-32-05-15-030-02-02 used for?＋

31000-32-05-15-030-02-02 is a 31000-series proximity probe housing assembly for mounting a proximity probe through the machine case, typically for radial vibration or Keyphasor measurement.

What probe configuration does 31000-32-05-15-030-02-02 include?＋

For 31000-32-05-15-030-02-02, option 32-05 specifies a 3300 xl nsv probe with connector protector, multiple approvals with 0.5 m (20 in) probe cable.

What do the standoff and penetration options on 31000-32-05-15-030-02-02 mean?＋

The 31000-32-05-15-030-02-02 uses 1.5 in (38 mm) and a 3.0 in (76 mm) probe penetration; the combined C plus D dimension is 4.5 in (114 mm).

What fittings and mounting thread does 31000-32-05-15-030-02-02use?＋

The 31000-32-05-15-030-02-02 includes two 3/4-14 npt fittings · one plug and a 3/4-14 NPT mounting-thread option.

What should I provide for a 31000-32-05-15-030-02-02 quotation?＋

Send the complete 31000-32-05-15-030-02-02 part number, quantity, probe system, machine-case arrangement, conduit/fitting requirement and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete part number, transducer system and adapter requirement for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
31000-32-05-15-030-02-02

Official manufacturer documentation for the Bently Nevada 31000 Proximity Probe Housing Assembly 31000-32-05-15-030-02-02.

Official manufacturer datasheet

Bently Nevada datasheet 141610 Rev. R defines the 31000-AA-BB-CC-DDD-EE-FF ordering structure and supports the complete 32-05-15-030-02-02 configuration.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements and ordering-code meanings use Bently Nevada / Baker Hughes datasheet 141610 Rev. R.

PROBE HOUSING INSTALLATION WORKFLOW

How 31000-32-05-15-030-02-02 Supports an Externally Accessible Probe Installation

Bently Nevada is the manufacturer. 31000-32-05-15-030-02-02 is a 31000-series housing assembly configured for 3300 xl nsv probe with connector protector, multiple approvals and 0.5 m (20 in) cable.

Bently Nevada · BRAND
31000 / 32000 Probe HousingPRODUCT FAMILY · INSTALLATION WORKFLOW
MACHINE-CASE MOUNTING

Housing and Sleeve

Mount the housing through the machine case using the ordered 3/4-14 NPT sleeve and verify the required probe penetration.

PROBE GAPPING

External Adjustment

Use external access to set the probe gap or replace the probe without disassembling the machine.

CABLE AND CONDUIT

Protected Routing

Route the 0.5 m (20 in) probe cable through the ordered fitting arrangement while maintaining the manufacturer's bend and support requirements.

Installation relationship: the housing provides mechanical and environmental protection; the selected probe, barriers and monitoring system must be verified separately for the application.
APPLICATION AREAS

Applications for 31000-32-05-15-030-02-02

Radial Vibration MeasurementSupports externally mounted proximity probes used for relative radial vibration where the machine casing is affixed to the bearing.
Keyphasor MeasurementSupports radially mounted Keyphasor probe installations requiring external access for adjustment.
APPLICATION CENTER 31000-32-05-15-030-02-02 31000 Proximity Probe Housing Assembly
External Probe AccessAllows probe gap adjustment or probe replacement without machine disassembly.
Protected Machine-Case InstallationProvides a Type 4X / IP66 PPS housing for the configured proximity probe and cable connection.
