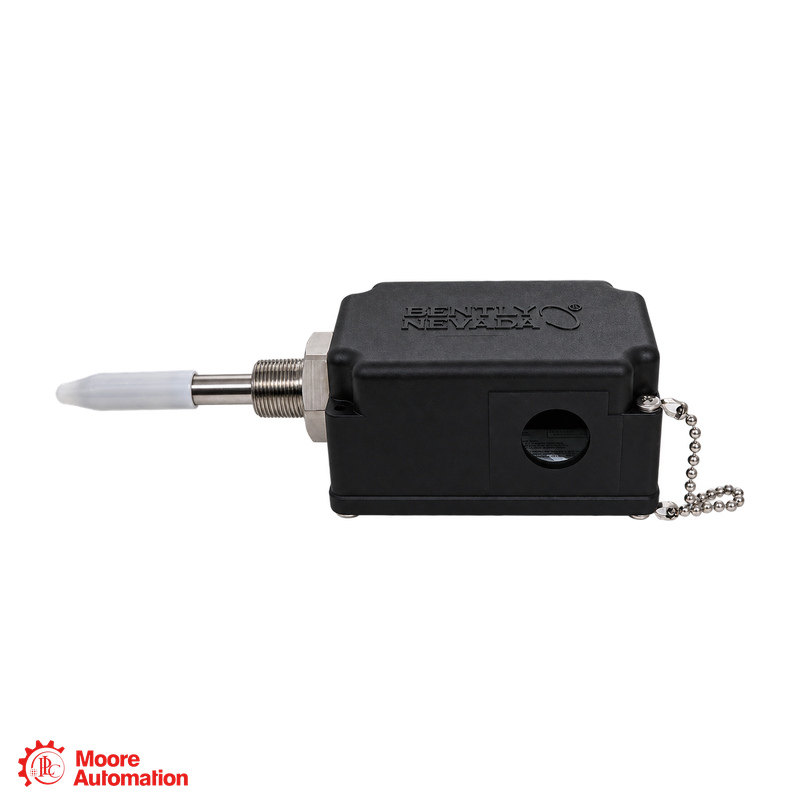

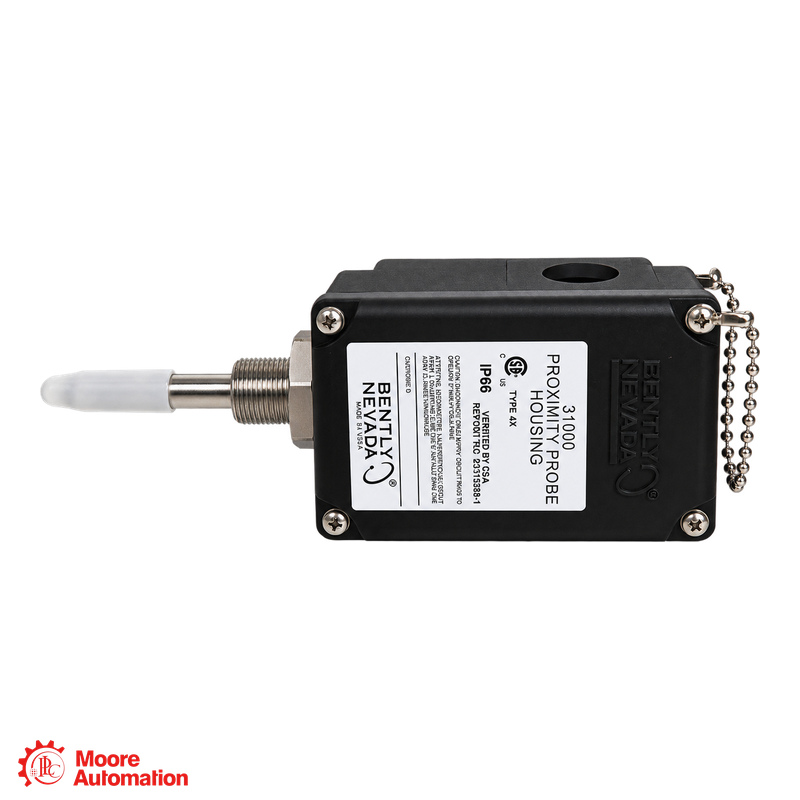

Bently Nevada 31000-16-05-00-069-03-02 Proximity Probe Housing Assembly
Bently Nevada 31000-16-05-00-069-03-02 Proximity Probe Housing Assembly
Bently Nevada 31000-16-05-00-069-03-02 Proximity Probe Housing Assembly

Bently Nevada 31000-16-05-00-069-03-02 Proximity Probe Housing Assembly

31000 · PROXIMITY PROBE HOUSING

31000-16-05-00-069-03-02

31000-16-05-00-069-03-02 — a Bently Nevada 31000 proximity probe housing assembly configured with a 3300 XL 8 mm probe, a 0.5 m (20 in) probe cable and 6.9 in probe penetration. The housing provides mechanical and environmental protection for externally mounted probes.

PROBE8 mm
CABLE0.5 m
PENETRATION6.9 in
PROTECTIONType 4X / IP66
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 31000 PROXIMITY PROBE HOUSING ASSEMBLY
3300 XL 8 MM · PROXIMITY PROBE

31000-16-05-00-069-03-02

6.9 in penetration · 0.5 m cable

31000 Proximity Probe Housing Assembly

EXTERNALLY MOUNTED PROXIMITY PROBE
31000-16-05-00-069-03-02 — A Bently Nevada 31000 housing assembly configured with a 3300 XL 8 mm probe, 0.5 m (20 in) probe cable and 6.9 in probe penetration. It provides mechanical and environmental protection for an externally mounted probe.
CONFIGURATION NOTE
The ordering code selects 3300 XL 8 mm probe, 0.5 m (20 in) probe cable, no standoff adapter, 6.9 in penetration, fitting option 03 and a 3/4-14 NPT mounting thread. Match the complete configuration to the installation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

31000
Housing familyEnglish proximity probe housing assembly
16
Probe option3300 XL 8 mm probe
05
Probe cable0.5 m (20 in)
00
Standoff adapterNo standoff adapter
069
Probe penetration6.9 in
03
FittingsTwo plugs, fitting, reducer and cable seal grip
02
Mounting thread3/4-14 NPT
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗
31000 PROXIMITY PROBE HOUSING

Engineering data at a glance

Click “+” to expand more specifications.

8 MM PROBE3300 XL
CABLE0.5 m
PENETRATION6.9 in
HOUSINGType 4X / IP66
Configured probe and housing data from manufacturer Datasheet 141610 Rev. R.
Configuration note The 16 probe option, 05 cable option and 069 penetration option specify this assembly. The 31000 housing protects the probe mechanically and environmentally; it is not explosion-proof.
General Information −
BrandBently Nevada
Part number31000-16-05-00-069-03-02
Product type31000 proximity probe housing assembly
Probe option3300 XL 8 mm probe
Probe cable0.5 m (20 in)
Probe penetration6.9 in
Housing and Mounting ＋
Housing protectionType 4X; IP66
Housing materialGlass-reinforced PPS thermoplastic
Sleeve and chainAISI 304 stainless steel
Outer sleeve and screwsAISI 303 stainless steel
Mounting thread3/4-14 NPT
Ordering Configuration ＋
Standoff adapterNone (option 00)
Penetration option069 = 6.9 in
FittingsTwo plugs; one 3/4-14 NPT fitting
Reducer3/4-14 to 1/2-14 NPT stainless steel
Cable seal gripGrommets for specified probe-cable sizes
Installation and Limits ＋
Probe operating temperature-51°C to +177°C
Typical housing weight1.2 kg (2.6 lb)
Retaining-nut torque29.4 N·m (260 in·lb)
Max. standoff plus penetration394 mm (15.5 in)
Installation sequenceSet probe gap before fitting housing cover
Source: Bently Nevada 31000 and 32000 Proximity Probe Housing Assemblies Datasheet 141610 Rev. R. See official manufacturer document.
FAQ

Questions Buyers Ask Most

What probe does 31000-16-05-00-069-03-02 include?＋

31000-16-05-00-069-03-02 — 3300 XL 8 mm probe is selected by option 16; option 05 specifies the 0.5 m (20 in) attached probe cable.

What probe penetration does 31000-16-05-00-069-03-02 specify?＋

31000-16-05-00-069-03-02 — Option 069 sets the probe penetration at 6.9 in; option 00 specifies no standoff adapter.

Which fittings and mounting thread come with 31000-16-05-00-069-03-02?＋

31000-16-05-00-069-03-02 — Option 03 includes two plugs, a 3/4-14 NPT fitting, a stainless-steel reducer and a cable seal grip; option 02 specifies a 3/4-14 NPT mounting thread.

Is 31000-16-05-00-069-03-02 an explosion-proof housing?＋

31000-16-05-00-069-03-02 — The 31000 housing provides mechanical and environmental protection with Type 4X and IP66 ratings; the manufacturer states that it is not explosion-proof.

What should be checked before installing 31000-16-05-00-069-03-02?＋

31000-16-05-00-069-03-02 — Confirm the 0.5 m (20 in) cable, 6.9 in probe penetration, 3/4-14 NPT mounting thread, conduit fittings and probe gap; the manufacturer gives 29.4 N·m retaining-nut torque.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 31000-16-05-00-069-03-02 marking, 6.9 in probe penetration, 0.5 m (20 in) probe cable, fitting requirements and installation drawing for configuration checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Documentation and Manufacturer References for
31000-16-05-00-069-03-02

The official 31000/32000 housing datasheet decodes the seven ordering fields for 31000-16-05-00-069-03-02, including its 3300 XL 8 mm probe, 0.5 m (20 in) cable and 6.9 in probe penetration.

Official manufacturer datasheet

View the manufacturer-hosted 31000/32000 Proximity Probe Housing Assemblies datasheet and its 31000 ordering table.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the full 31000-16-05-00-069-03-02 code, quantity, probe cable length, penetration, mounting-thread requirement and delivery destination.

Technical statements use the official Bently Nevada 31000 and 32000 Proximity Probe Housing Assemblies Datasheet 141610 Rev. R.

EXTERNALLY MOUNTED PROXIMITY PROBE CHAIN

How 31000-16-05-00-069-03-02 Fits into Proximity Monitoring

Bently Nevada is the manufacturer. 31000-16-05-00-069-03-02 is a 31000 proximity probe housing assembly with a 3300 XL 8 mm probe. It provides mechanical and environmental protection for an externally mounted proximity probe.

Bently Nevada · BRAND
Proximity Probe SystemPRODUCT FAMILY · 31000 PROBE HOUSING
HOUSING

31000 Probe Housing

The 31000-16-05-00-069-03-02 assembly uses a Type 4X/IP66 housing for an externally mounted probe.

PROBE

3300 XL 8 mm probe

Option 16 selects the 3300 XL 8 mm probe; option 05 provides the 0.5 m (20 in) cable.

MACHINE CASE

6.9 in · 3/4-14 NPT

Option 069 specifies 6.9 in penetration; option 02 specifies the 3/4-14 NPT mounting thread.

System relationship: install the outer sleeve in the machine case, adjust probe gap, secure the housing and close its cover following the manufacturer procedure.
APPLICATION AREAS

Applications for 31000-16-05-00-069-03-02

Machine-Case Probe MountingProvides a mechanically protected mounting point for an externally installed proximity probe.
Condition Monitoring InstallationsSupports proximity-probe installations in machinery monitoring systems.
APPLICATION CENTER 31000-16-05-00-069-03-02 31000 Proximity Probe Housing Assembly
Conduit-Connected HousingOption 03 includes a conduit fitting, stainless-steel reducer, two plugs and a cable seal grip.
Hazardous-Area InstallationsThe housing may be used in intrinsically safe applications only with an approved transducer system and suitable I.S. barriers; it is not explosion-proof.
