 /Bently Nevada 146054-011-20-02-05 3300 Ceramic Capped Proximity Probe

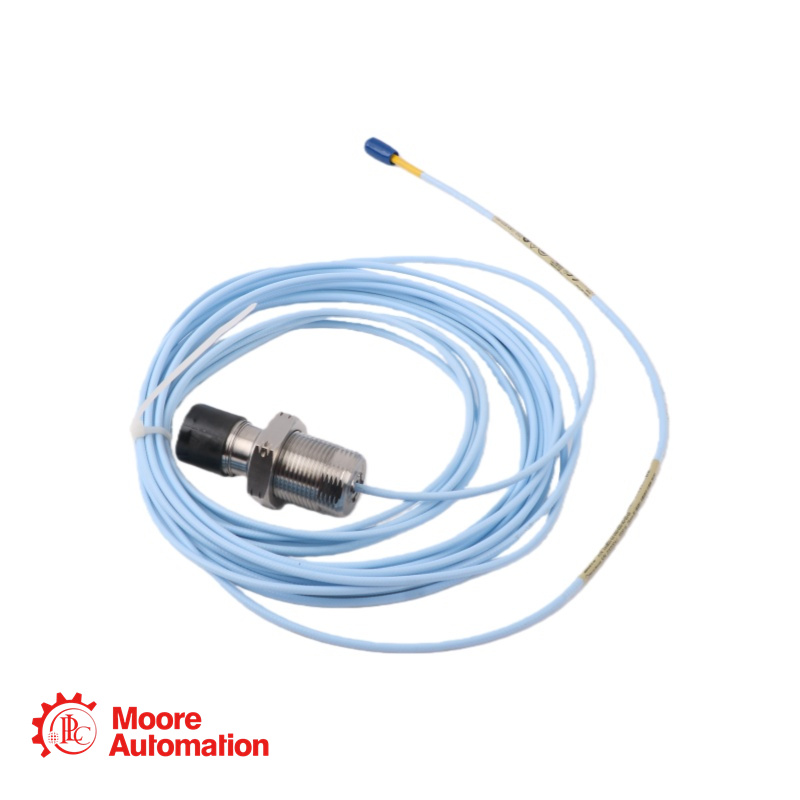

Bently Nevada 146054-011-20-02-05 3300 Ceramic Capped Proximity Probe

Bently Nevada 146054-011-20-02-05 3300 Ceramic Capped Proximity Probe

3300 · CERAMIC CAPPED PROBE

146054-011-20-02-05

146054-011-20-02-05 — A ceramic-capped proximity probe for compatible machinery-monitoring installations with demanding front-end chemical exposure.

TYPECeramic capped
CASE CODE011
LENGTH2.0 m
CONFIGURATIONVerify label
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Узнать сейчас
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● 3300 CERAMIC CAPPED
3300 CERAMIC CAPPED PROBE SYSTEM

146054-011-20-02-05

Ceramic capped · 011 · 2.0 m · Verify label

3300 Ceramic Capped Proximity Probe

MEASUREMENT ROLE
146054-011-20-02-05 — A ceramic-capped proximity probe for compatible machinery-monitoring installations with demanding front-end chemical exposure.
CONFIGURATION NOTE
Case code 011 must be checked against the exact order drawing. Published family data identifies 20 as 2.0 m total length, 02 as a standard-cable ClickLoc connector and 05 as an approval option. These do not resolve special construction details.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
CONFIGURATION DECODING

Model code at a glance

146054
BaseCeramic capped
011
Case codeVerify drawing
20
Length2.0 m
02
ConnectorClickLoc
05
ApprovalsCheck marking
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

3300 Ceramic Capped System ↗
3300 CERAMIC CAPPED FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

TYPECeramic capped
CASE CODE011
LENGTH2.0 m
CONFIGURATIONVerify label
Configuration from manufacturer ordering data.
Configuration check Confirm the complete nameplate, mating components and installation requirements before ordering.
General Information −
BrandBently Nevada
Part number146054-011-20-02-05
Product type3300 Ceramic Capped Proximity Probe
Product family3300 Ceramic Capped
Standard-family thread3/8-24 UNF; confirm special-order construction
ModificationNot supplied in requested code
Detailed Measurement Data ＋
Tip constructionCeramic-capped
System matchingCompatible 3300 probe, extension cable and Proximitor configuration
Special-order limitsExact dimensions and ratings require order/MOD documentation
Cable and Installation ＋
Requested case code011
Total-length code 202.0 m, subject to exact-order confirmation
Connector code 02Miniature coaxial ClickLoc; standard cable
Exposure cautionThe unsealed rear of the standard 146054 must be protected from destructive media
Environment and Certification ＋
Verify the supplied markings, applicable approvals and installation limits against the current manufacturer documentation. A suffix alone does not establish suitability for a hazardous-area installation.
Source: Bently Nevada 172932 Rev. G (archived manufacturer publication). System values require the complete compatible transducer configuration and the manufacturer’s stated conditions.
FAQ

Questions Buyers Ask Most

What is 146054 used for?＋

A ceramic-capped proximity probe for compatible machinery-monitoring installations with demanding front-end chemical exposure.

What does the 146054-011-20-02-05 code specify?＋

Case code 011 must be checked against the exact order drawing. Published family data identifies 20 as 2.0 m total length, 02 as a standard-cable ClickLoc connector and 05 as an approval option. These do not resolve special construction details.

Can a similar part number be substituted?＋

Do not substitute by appearance or family name alone. Compare the full suffix, dimensions, connections and system configuration.

Is this a complete measurement system?＋

No. This probe requires a compatible extension cable where applicable, a matching Proximitor Sensor and monitoring equipment.

What should I provide for a quotation?＋

Send the complete 146054-011-20-02-05 nameplate, quantity, installed-system details and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
146054-011-20-02-05

Manufacturer documentation for the Bently Nevada 3300 Ceramic Capped Probe System.

3300 Ceramic Capped Probe System

Bently Nevada 172932 Rev. G (archived manufacturer publication). Check the 146054 ordering table and applicable system specifications.

MANUFACTURER DOCUMENT (ARCHIVED)

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. This is an archived manufacturer document hosted by a third party; exact-order and MOD details require verification.

3300 XL SYSTEM RELATIONSHIP

How 146054 Fits into the Measurement System

Bently Nevada is the manufacturer. 146054-011-20-02-05 is a 3300 ceramic capped proximity probe. It must be matched to the installed 3300 Ceramic Capped Probe System.

Bently Nevada · BRAND
3300 Ceramic Capped SystemPRODUCT FAMILY · COMPLETE SYSTEM
SENSING COMPONENT

Probe

The 146054 probe is the sensing component. Confirm the exact mechanical fit before replacement.

INTERCONNECTION

Extension Cable

The extension cable links the probe to the Proximitor Sensor and helps establish the required electrical system length.

SIGNAL CONDITIONING

Proximitor Sensor

The Proximitor Sensor conditions the probe signal into a voltage output for monitoring and machinery protection equipment.

System relationship: compatible component types and total system length must match the Bently Nevada 3300 Ceramic Capped system requirements.
APPLICATION AREAS

Application mind map for 146054

Chemical-Service MonitoringEvaluate front-end material compatibility for the process media.
Non-contact SensingUse within the matching proximity-transducer system.
APPLICATION CENTER 146054 3300 Ceramic Capped Proximity Probe
Installation ProtectionProtect the rear cable entry from destructive media.
Exact-Order ReviewCheck case code and any MOD drawing before replacement.
