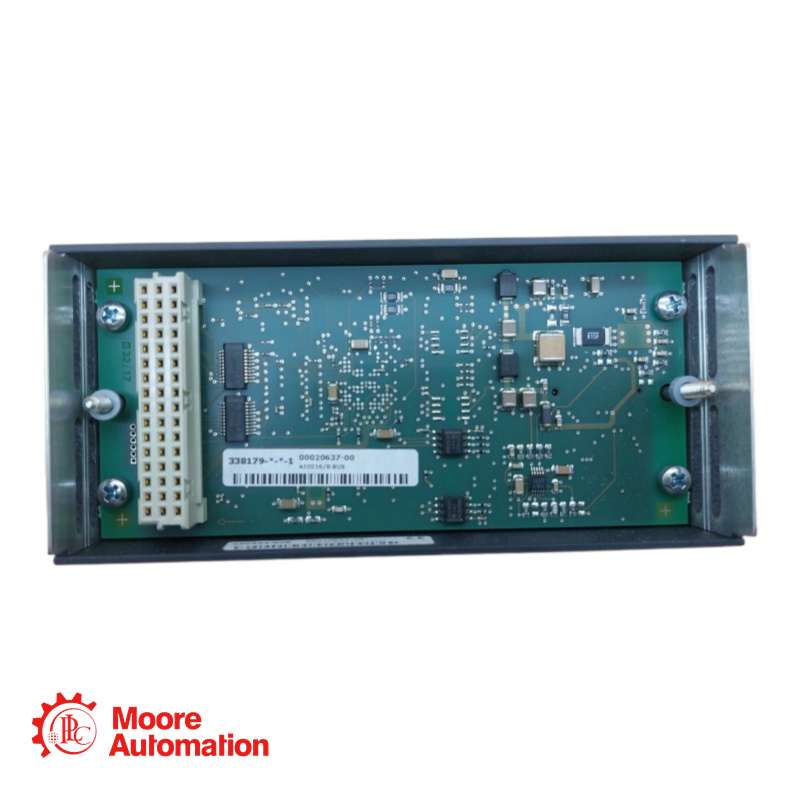

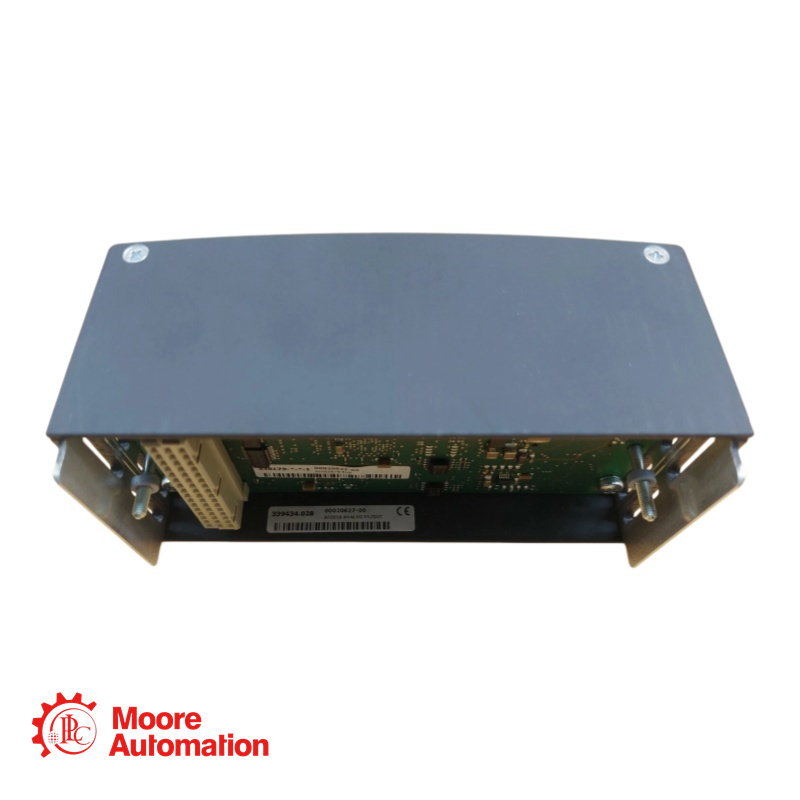

BACHMANN AIO216 Universal Analog Input/Output Module

BRAND/ MANUFACTURER:

PART NUMBER

CONDITION:

COUNTRY OF ORIGIN

BACHMANN

AIO216

Brand New Factory Sealed - Original

Name：Frida

Email：sales5@mooreplc.com

Whatsapp：+86 15359408275

Welcome to Inquire

AIO216 module enable the measuring or output of all standard analog signals.

The AIO216 16 channels compactly in a single module.

The standard signal types for current (0 to 20 mA and 4 to 20 mA) and voltage ranges (±10 V to ±10 mV) allow the connection of a wide range of sensors and actuators.

A minimum 14 bit resolution makes it possible to also measure signals that do not fully utilize the measuring range (e.g. 0 to 5 V) with a sufficiently high resolution.

AIO216 support Pt100/Pt1000 in 2-, 3- and 4-wire measuring circuits, as well as all standard thermocouples.

· 8 channels AIO208, 16 channels AIO216

· Analog voltage input ±10 V to ±10 mV

· Temperature sensor Pt elements as 2-,3-,4-wire

· Thermo couples type J, K, T, N, E, R, S, B

· Analog current output 0(4) mA to 20 mA

· Resolution: 16 bit input with filter, 14 bit output

· Filter adjustable from 4 kHz to 0.5 Hz per channel

· Galvanic isolation for the system 500 V
