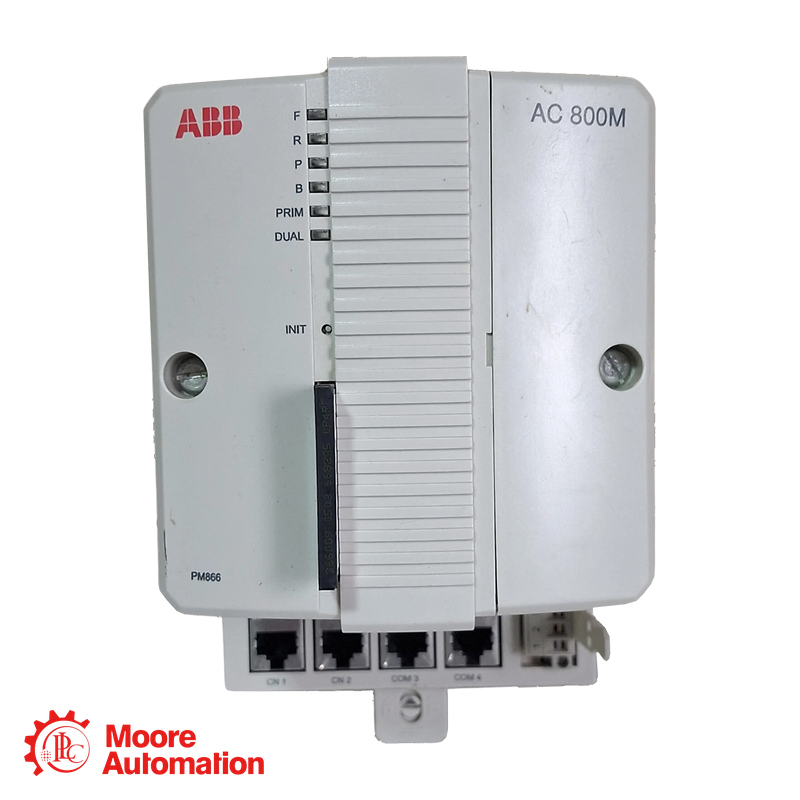

ABB PM867K02 3BSE081638R1 AC 800M Redundant High Integrity Processor Unit

Parameter

Specification

Manufacturer

ABB

Model Number

PM867K02

Article Number

3BSE081638R1

Product Family

AC 800M

Product Type

Redundant High Integrity processor package

Package Configuration

Redundant K02 processor pair

Processor Units Included

2 × PM867 CPU units

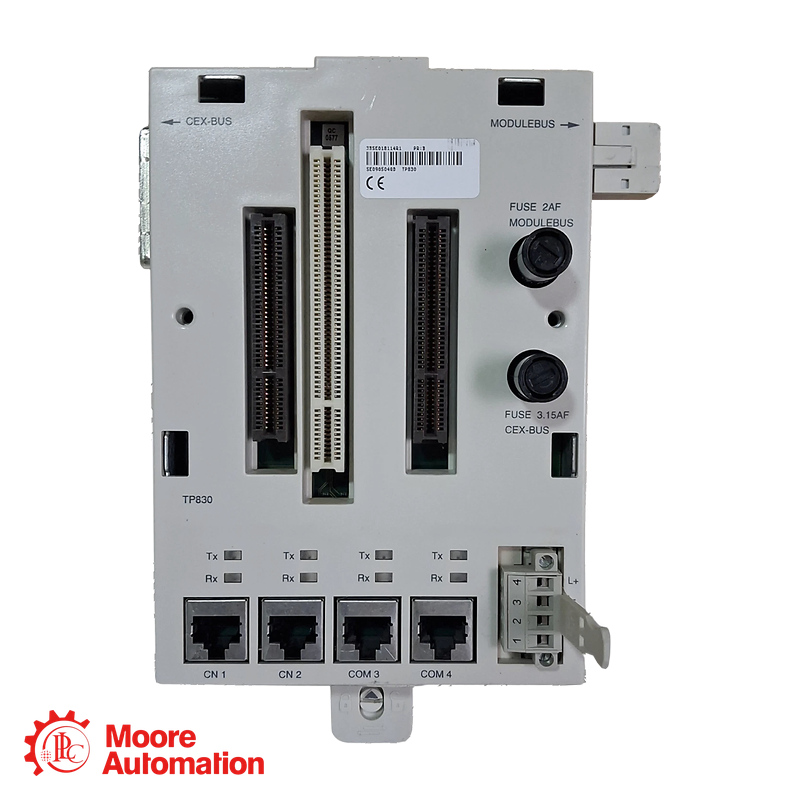

Baseplates Included

2 × TP830

Baseplate Width

115 mm each

Processor Type

MPC866

Processor Clock Frequency

133 MHz

Execution Performance

1,000 Boolean operations in 0.09 ms

Total Memory

64 MB per processor

Available Application RAM

46.559 MB per processor

Flash Memory for Application Storage

No

Firmware Flash PROM

18 MB

Minimum Application Cycle Time

1 ms

Maximum Processor Switch-Over Time

10 ms

Supply Voltage

24 V DC

Permitted Supply Range

19.2–30 V DC

Current Consumption per Processor

210 mA typical; 360 mA maximum

Power Dissipation per Processor

5.1 W typical; 8.6 W maximum

Redundant Power-Supply Status Input

Supported

Backup Battery Type

3.6 V lithium

Clock Synchronization

1 ms between AC 800M controllers using CNCP

Event Queue per OPC Client

Maximum 3,000 events

OPC Event Transfer Rate

36–86 events per second

OPC Data Message Transfer Rate

113–143 messages per second

CEX-Bus Communication Modules

Maximum 12

Maximum CEX-Bus Supply Current

2.4 A

Application Area

Typical Use

Redundant Process Control

PM867K02 is suitable for continuous process units where controller availability is an important design requirement. Its synchronized processor pair provides primary and backup operation with a specified maximum switch-over time of 10 ms.

High Integrity Control Architectures

The processor pair can form part of an ABB High Integrity system when combined with the appropriate SM812 configuration and software. The complete design must follow ABB’s applicable engineering and safety instructions.

Critical Equipment Interlocking

The controller can execute permissives, equipment sequencing and coordinated shutdown logic for critical plant assets. Redundant processing reduces dependence on a single CPU, while the final response still depends on communication and I/O architecture.

Redundant Distributed S800 I/O

PM867K02 supports up to seven optical ModuleBus clusters in a redundant CPU configuration. It can accommodate a maximum of 84 redundant ModuleBus I/O modules, subject to project topology and scan-time requirements.
