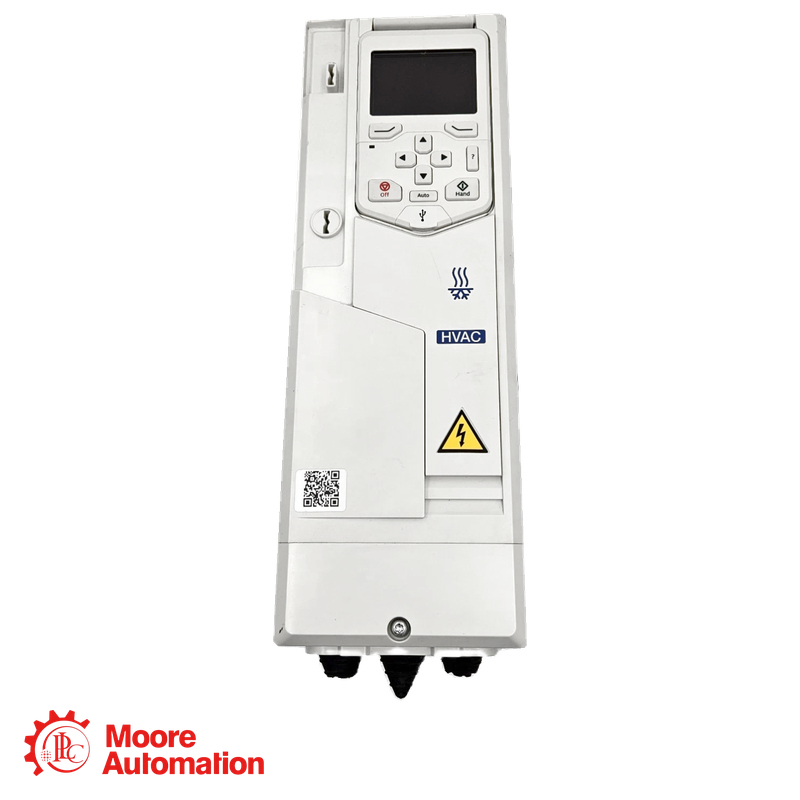

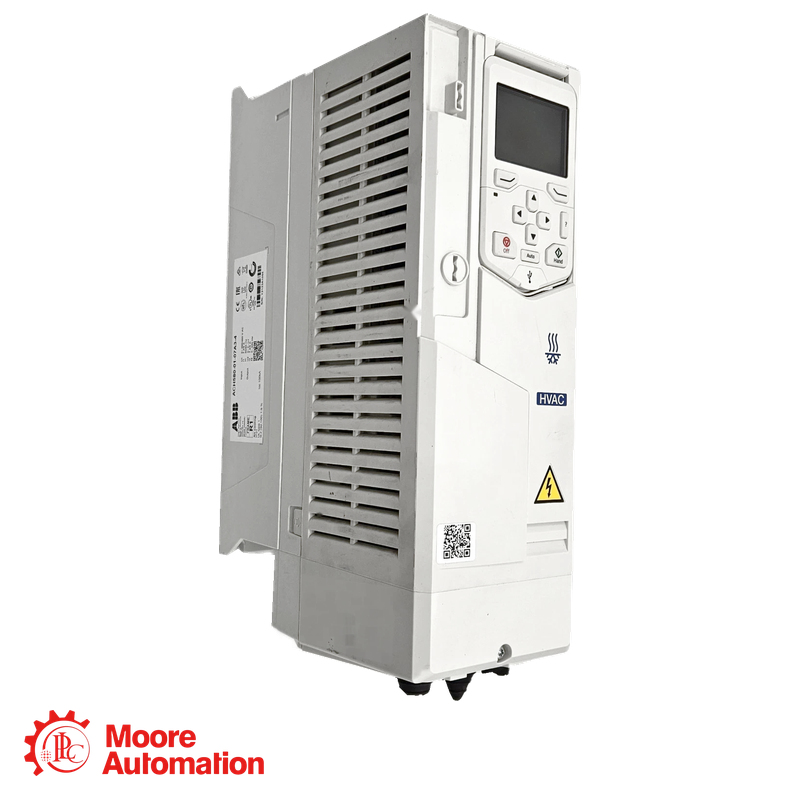

ABB ACS580-01-07A3-4 General Purpose AC Drive

Contact Frida for ACS580-01-07A3-4  Pricing

Product Overview

The ABB ACS580-01-07A3-4 is a wall-mounted general-purpose AC drive for controlling the speed and torque of three-phase motors. At a 400 V supply, it provides a nominal output current of 7.2 A and a motor power rating of 3 kW. This model uses the compact R1 frame and is supplied with an IP21 enclosure for installation in a suitable indoor electrical environment. It can control induction, permanent-magnet and synchronous reluctance motors when the drive parameters are correctly matched to the motor and application. The standard drive platform includes an assistant control panel, Safe Torque Off, Modbus RTU communication, an EMC filter and a built-in braking chopper. These integrated functions support straightforward panel design, commissioning and connection to industrial control systems.

Technical Specifications

Benefits

-Compact wall-mounted installation
-Smooth motor speed control
-Reduced starting current
-Lower mechanical starting stress
-Simplified drive commissioning
-Integrated energy monitoring
-Flexible automation connectivity
-Built-in motor safety function

Key Highlights

● 3 kW nominal motor power
● 7.2 A nominal output at 400 V
● 380–480 V three-phase supply class
● Compact R1 frame design
● Integrated Safe Torque Off
● Built-in braking chopper
● Modbus RTU communication
● Assistant control panel

Customer Questions and Answers

Industries Served

Water and Wastewater--The ACS580-01-07A3-4 can regulate pumps used for water transfer, circulation and pressure control. Matching pump speed to process demand can reduce throttling losses and unnecessary full-speed operation.

HVAC and Building Services--The drive is suitable for controlling fans, blowers and circulation pumps within its power and current ratings. Adjustable speed allows an HVAC system to respond to changing airflow, pressure or temperature requirements.

Food and Beverage Processing--Possible applications include process pumps, mixers and conveyors driven by appropriately rated motors. Controlled acceleration and deceleration can help limit mechanical shock and provide more stable material movement.

Material Handling and Packaging--The drive can control small conveyors, feeders and packaging equipment that require adjustable operating speed. Programmable ramp times support smoother starting and stopping when products move between production stages.

General Manufacturing--The ACS580-01-07A3-4 can be applied to auxiliary machinery, agitators, fans, pumps and other variable-torque or constant-torque loads. Final selection must consider motor current, overload demand, operating environment and required stopping performance.
