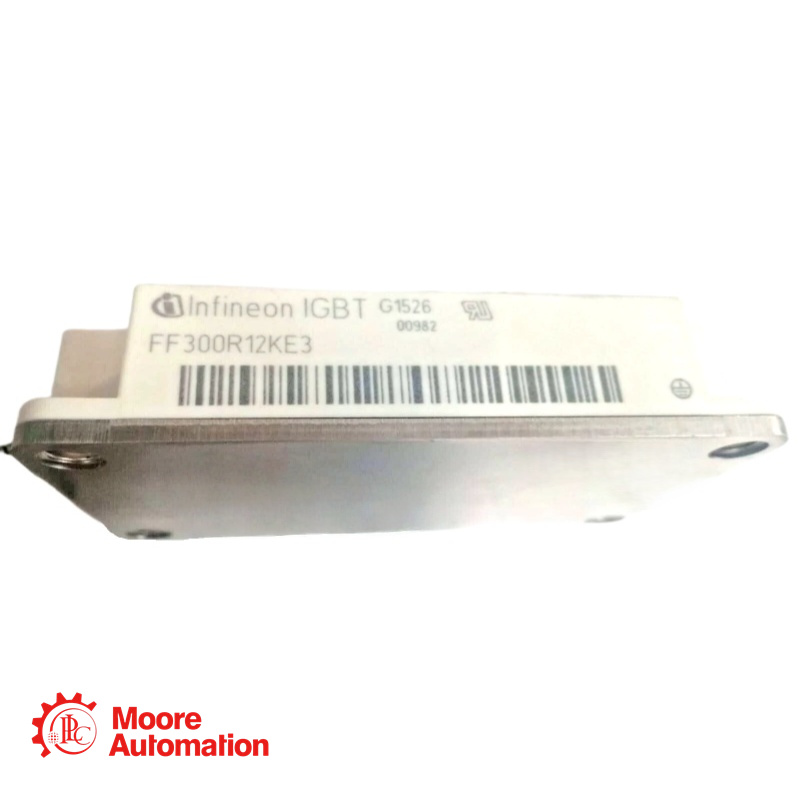

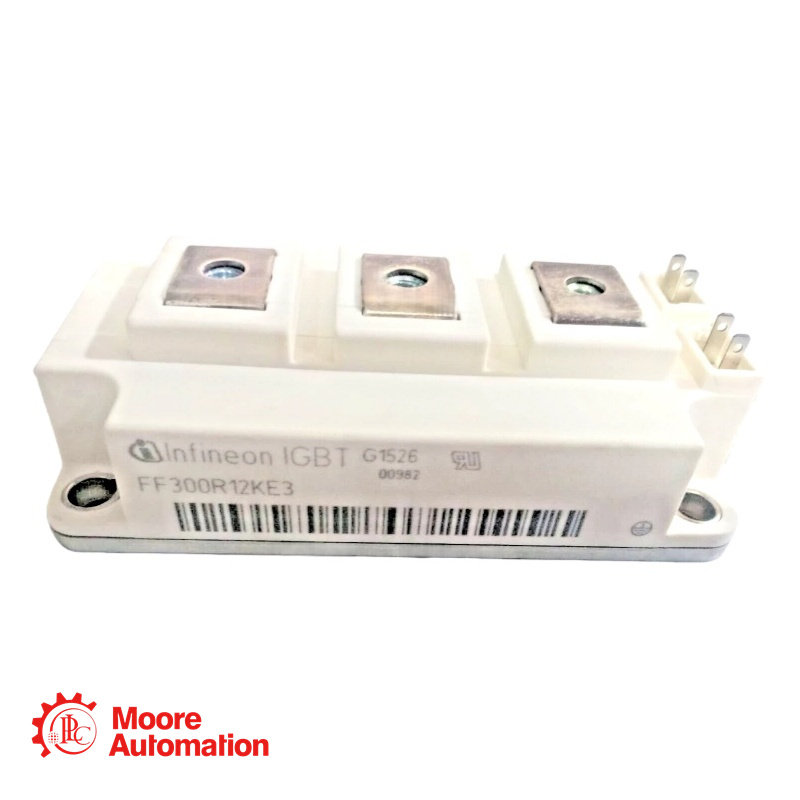

The 68647037 FF300R12KE3 is a high-power 62mm IGBT module from Infineon's C-Series. It integrates Trench/Fieldstop IGBT3 technology with an Emitter Controlled High Efficiency (EC7) Diode, designed for demanding high-current switching applications in industrial power electronics.
Бренд :
ABBномер части :
68647037 FF300R12KE3Масса :
0.34 kgИзмерение :
10.6x6.1x3.8cmСтрана происхождения :
SwedenКод ТН ВЭД :
8537101190Описание :
IGBT ModuleHow to Contact?
Click to Communicate with Our Sales Manager: Frida
Phone: +86 15359408275 Email:sales5@mooreplc.com
Discover This Product
Collector-Emitter Voltage:1200 V
Continuous Collector Current:300 A, 440 A
Repetitive Peak Collector Current:600 A
Collector-Emitter Saturation Voltage:1.70 V (typ) / 2.15 V (max)
Total Power Dissipation:1450 W
Gate-Emitter Voltage:±20 V
Short Circuit Current:1200 A
Junction-to-Case Thermal Resistance (per IGBT):0.085 K/W
Repetitive Peak Reverse Voltage:1200 V
Continuous Forward Current:300 A
Repetitive Peak Forward Current:600 A
Creepage Distance (Terminal-Heatsink):29.0 mm
Clearance (Terminal-Heatsink):23.0 mm
Comparative Tracking Index (CTI):> 400
Stray Inductance (Module):20 nH (max)
Storage Temperature Range:-40°C to +125°C
Operating Junction Temperature (T<sub>vj op</sub>) :-40°C to +125°C
Mounting Torque (M6 Screw):3.0 - 6.0 Nm
Terminal Connection Torque (M6):2.5 - 5.0 Nm
Using Area
Industrial Motor Drives: Medium to high-power AC drives and servo drives.
Renewable Energy Inverters: Central inverters for solar PV and wind power systems.
Uninterruptible Power Supplies (UPS): High-power online UPS systems.
Welding Equipment: High-current power sources.
Induction Heating & Melting.
