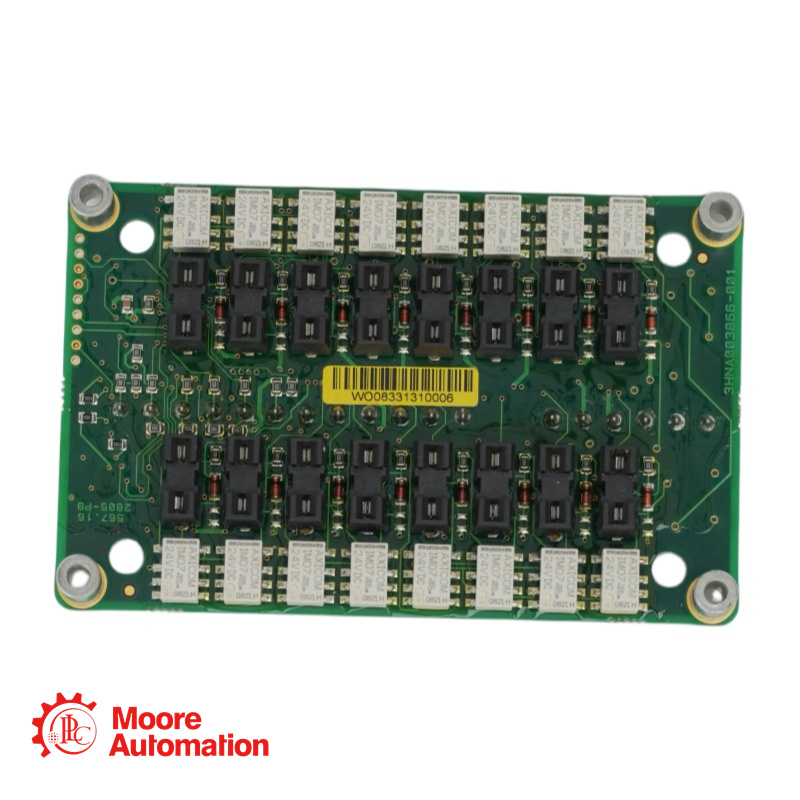

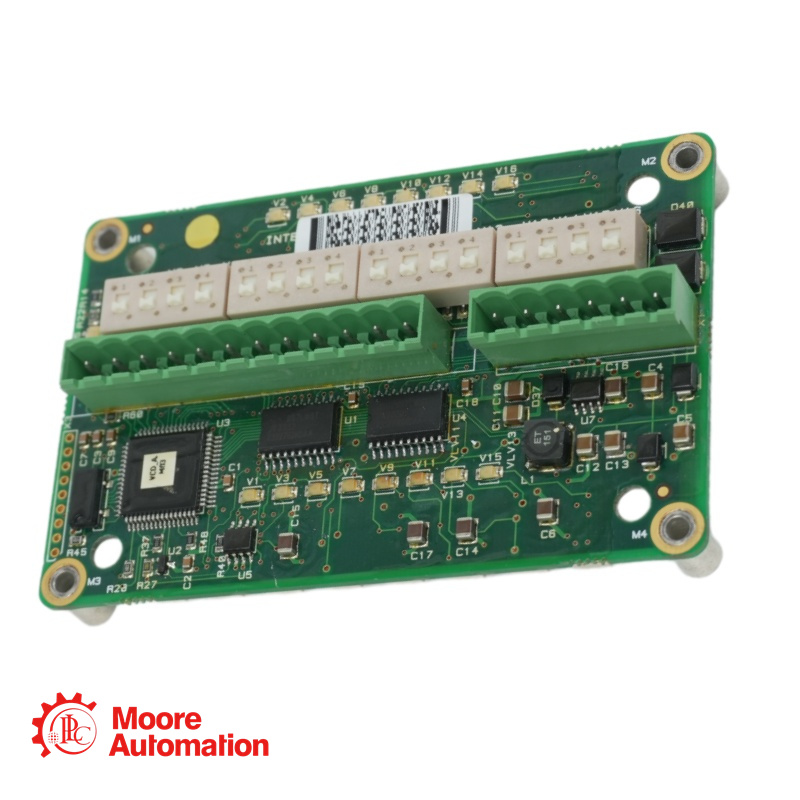

The 3HNA006565-001 VCDI-02 Valve Control Drive Interface is a dedicated driver board developed by ABB.
Бренд :
ABBномер части :
3HNA006565-001Масса :
0.1kgИзмерение :
11x7x2.5cmСтрана происхождения :
SwedenКод ТН ВЭД :
8537101190Описание :
VCD-02 SPAREPART
Product Name: VCD-02 SPAREPART
Part Number: 3HNA006565-001
Contact Sales Manager Frida to get best price!!!
Phone/Whatsapp: +86 15359408275
Email: sales5@mooreplc.com
Product Brief Introduction - 3HNA006565-001
The 3HNA006565-001 VCDI-02 Valve Control Drive Interface is a dedicated driver board developed by ABB. It acts as a signaling and power transmission interface between the main robot controller and multi-function pneumatic valve modules (such as the 16/24/32/40 function valve units), commonly deployed in ABB Paint Robot Systems (e.g., IRB 52, IRB 5400, IRB 5500 series).
Voltage
Nominal: 750 VDC
Continuous power consumption: 11.19 kW
DC bus capacitance: 330 µF
Input voltage: 25 VDC ±1.6%
Input capacitance: 23.5 µF
Output voltage
DC bus voltage (UDC): 260 to 315 VDC: 25 VDC * (UDC/315)
DC bus voltage (UDC): 315 to 800 VDC: 24 VDC ±6%
Continuous power per motor connection: 5.5 kW
Nominal switching frequency: 5 kHz
