5501-432 Woodward Actuator Controller Model

Contact Our Manager Frida to Get Price:

Phone/Whatsapp: +86 15359408275

Email: sales5@mooreplc.com

Material number:
5501-432

Description:

Each channel is responsible for controlling an integrating or proportional, hydromechanical or pneumatic actuator. Each actuator may be equipped with up to two position feedback devices
There are various versions available, and the module part number indicates the maximum output current capability of the module. This module requires a MicroNet low- density discrete (gray) cable. Use a digital (black) cable instead.
The module provides valuable information about actuator status, fault codes, and alarm conditions, ensuring efficient operation and minimizing downtime.

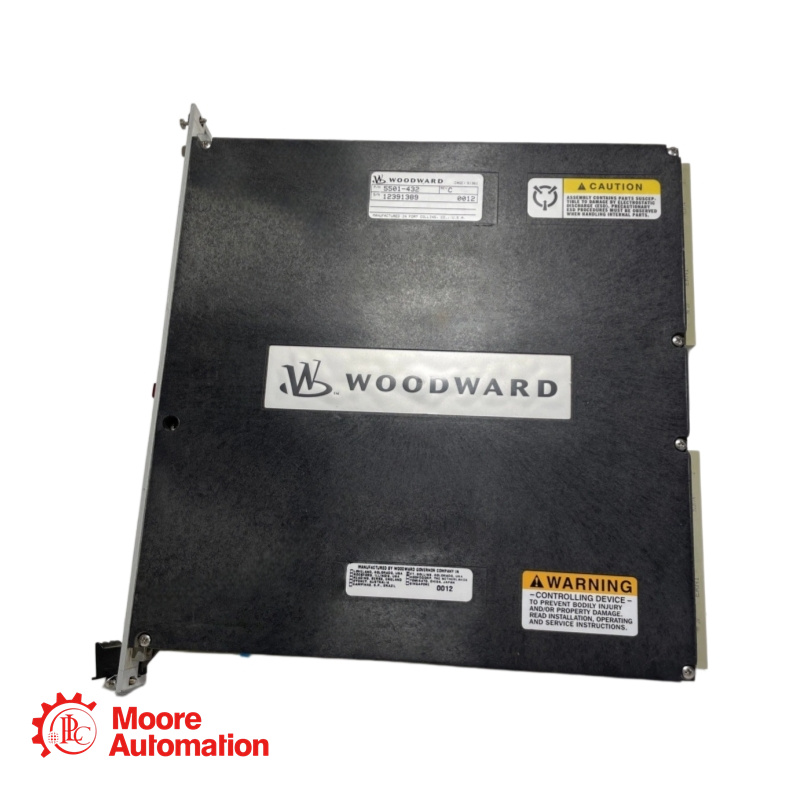

5501-432 is a Actuator Control Module developed by Woodward.The Module is specifically designed to handle two independent actuator channels. It operates with a current rating of 20omA.The module is capable of precise and responsive control, making it ideal for critical applications where accurate actuator positioning is crucial. In addition to its control capabilities, the Control Module incorporates comprehensive diagnostics and fault monitoring features. These features enable real-time monitoring of actuator health and performance, facilitating proactive maintenance and troubleshooting.

Technical Data:

Driver Version:200 mA (245 Max)
Feedback Devices:1 or 2 per channel
Max Load Resistance:10/(maximum current required, in amps)
Part Number:MicroNet/NetCon 5501-432
Power Requirements:+5 V @ 0.5 A, +24 V @ 1 A
