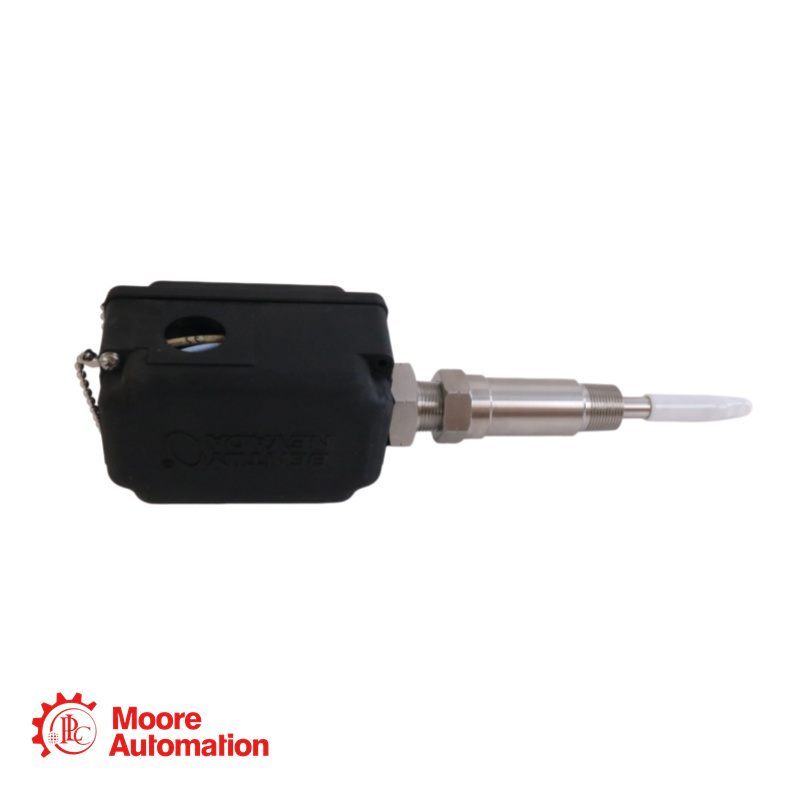

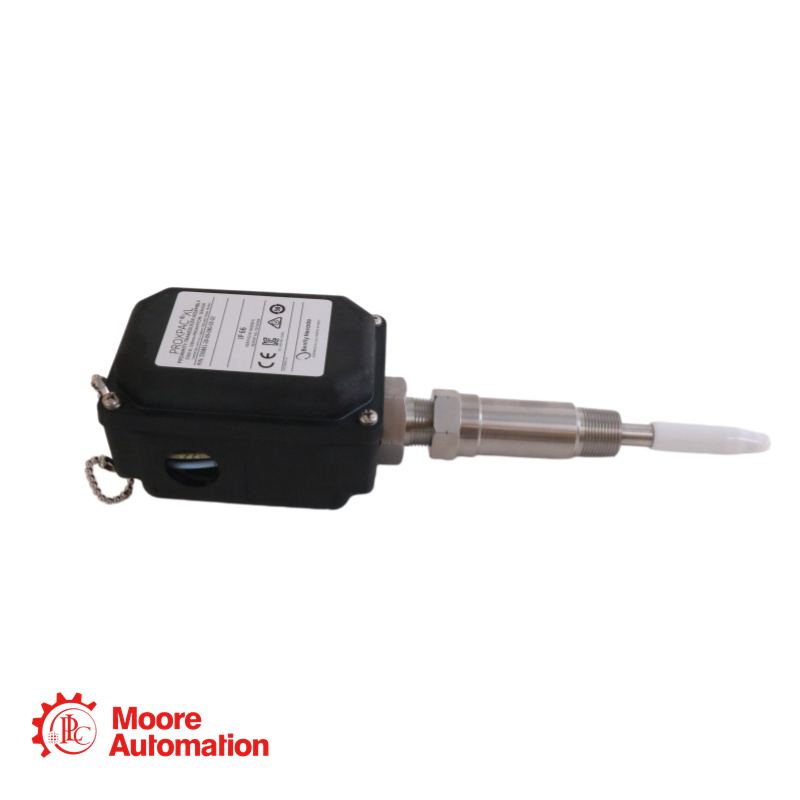

The Bently Nevada 330881-28-16-155-03-02 is a Metric PROXPAC XL Proximity Transducer Assembly.
Бренд :
Bently Nevadaномер части :
330881-28-16-155-03-02Масса :
1.35 kgИзмерение :
36.5x9x9.3cmСтрана происхождения :
USAКод ТН ВЭД :
8537101190Описание :
Proximity Transducer
330881-28-16-155-03-02
The Bently Nevada 330881-28-16-155-03-02 is a Metric PROXPAC XL Proximity Transducer Assembly, a self-contained proximity probe system that integrates a 3300 XL Proximitor sensor and an 8 mm proximity probe with Multiple Approvals (code 28). The assembly is configured with a 160 mm standoff adapter (B), 155 mm probe penetration (C), one M20 fitting (D), and 3/4-14 NPT mounting thread (E).
Technical Specifications for 330881-28-16-155-03-02
|
Model |
330881-28-16-155-03-02 |
|
Series |
PROXPAC XL (Metric) |
|
Housing Material |
UV-resistant, glass-reinforced PPS with conductive fibers |
|
Housing Rating |
Type 4X, IP66 |
|
Probe Type |
3300 XL 8 mm probe with 1-meter cable |
|
Probe Approvals |
Multiple Approvals (code 28) |
|
Standoff Adapter Length |
160 mm |
|
Probe Penetration Length |
155 mm |
|
Linear Range |
2 mm (80 mils) from 0.25 mm to 2.3 mm |
|
Recommended Gap |
1.27 mm (50 mils) |
|
Scale Factor |
7.87 V/mm (200 mV/mil) ±5% |
|
Frequency Response |
0 to 10 kHz (+0, -3 dB) |
FAQ about 330881-28-16-155-03-02
What is the difference between 330880 (English) and 330881 (Metric)?
330880 – English version with imperial units (inches for B and C options)
330881 – Metric version with metric units (mm for B and C options)
What is the total reach from mounting surface to probe tip?
Total reach = B + C = 160 mm + 155 mm = 315 mm (approximately 12.4 inches). The threaded sleeve allows ±12.7 mm (±0.5 in) adjustment from this midpoint.
What power supply is required?
Without barriers: -17.5 Vdc to -26 Vdc (12 mA max consumption)
With barriers: -23 Vdc to -26 Vdc
Operation at more positive voltage than -23.5 Vdc can result in reduced linear range.
|
