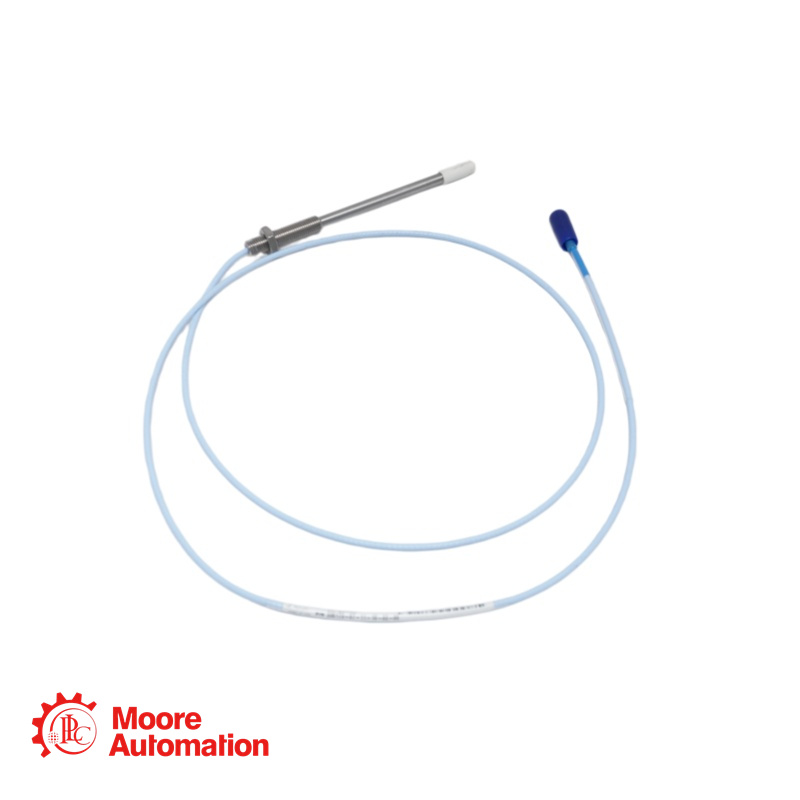

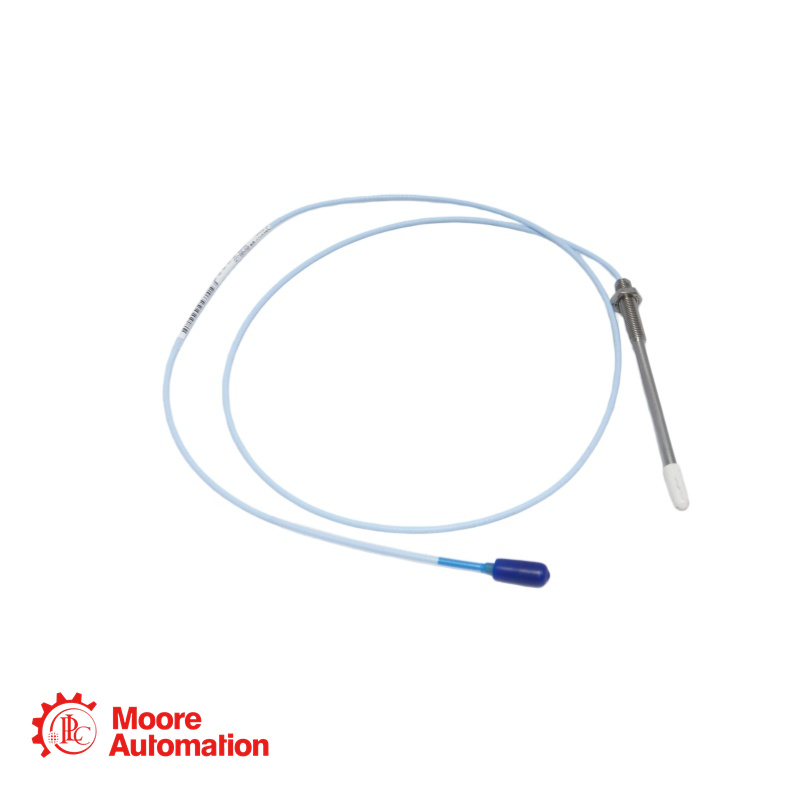

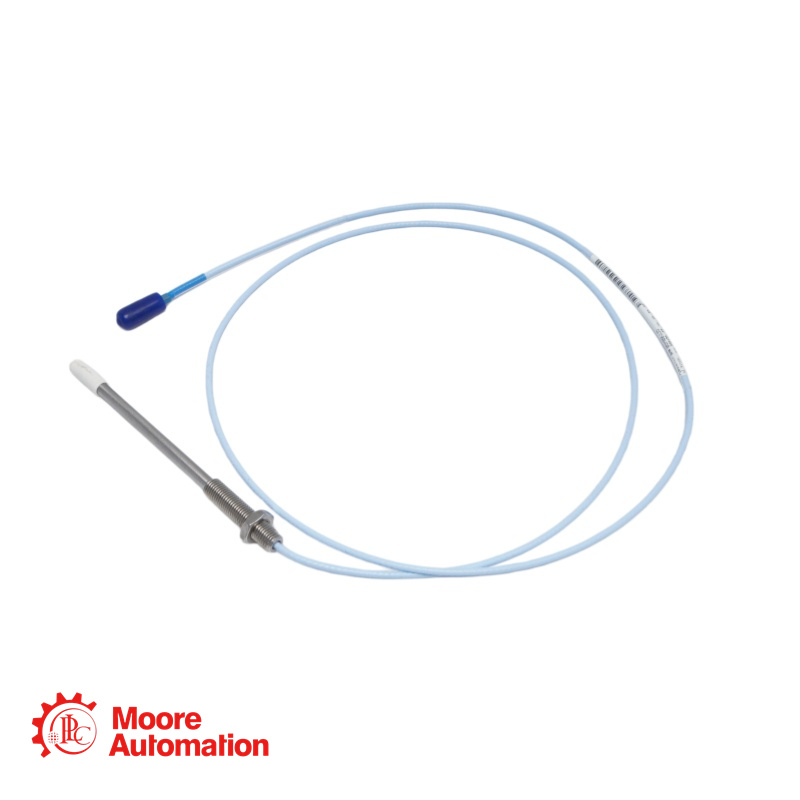

330173-03-08-05-02-05 - BENTLY NEVADA Proximity Probe

BENTLY NEVADA 330173-03-08-05-02-05 Proximity Probe

Sales Manager: Frida

Email: sales5@mooreplc.com

The 3300 5 mm probe improves upon previous designs. A patented TipLoc molding method provides a more robust bond between the probe tip and the probe body. The 3300 5 mm system is orderable with Fluidloc cable options for preventing oil and other liquids from leaking out of the machine through the cable’s interior.

A: Unthreaded Length Option: 03 30mm

B: Overall Case Length Option: 08 80mm

C: Total Length Option: 05 0.5 meter (1.6 feet)

D: Connector Option: 02 Miniature coaxial ClickLoc connector, standard cable

E: Agency Approval Option: 05 Multiple Approval

What is the linear range and scale factor of this probe?

Linear range: 2 mm (80 mils), from approximately 0.25 mm (10 mils) to 2.3 mm (90 mils) gap.

Incremental scale factor: 7.87 V/mm (200 mV/mil) ±6.5% typical, including interchangeability error.

Recommended gap setting: 1.27 mm (50 mils).

What is the difference between this probe (330173) and the 330171/330172 models?

330171 = 1/4-28 UNF thread, without armor

330172 = 1/4-28 UNF thread, with armor

330173 = M8 x 1 metric thread, without armor

330174 = M8 x 1 metric thread, with armor

What are the temperature limits for this probe?

Continuous operating range: –35°C to +177°C (–31°F to +351°F)

What is the minimum target size and recommended shaft diameter?

Minimum target size: 15.2 mm (0.6 in) diameter (flat target)

Minimum shaft diameter: 50.8 mm (2.0 in)

Recommended minimum shaft diameter: 76.2 mm (3.0 in) for optimal performance
