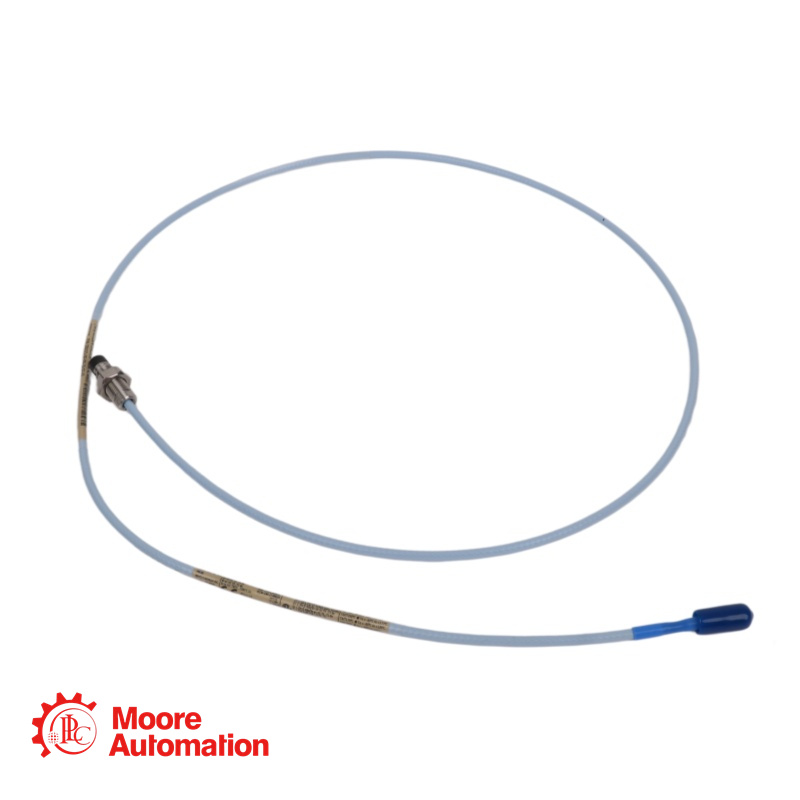

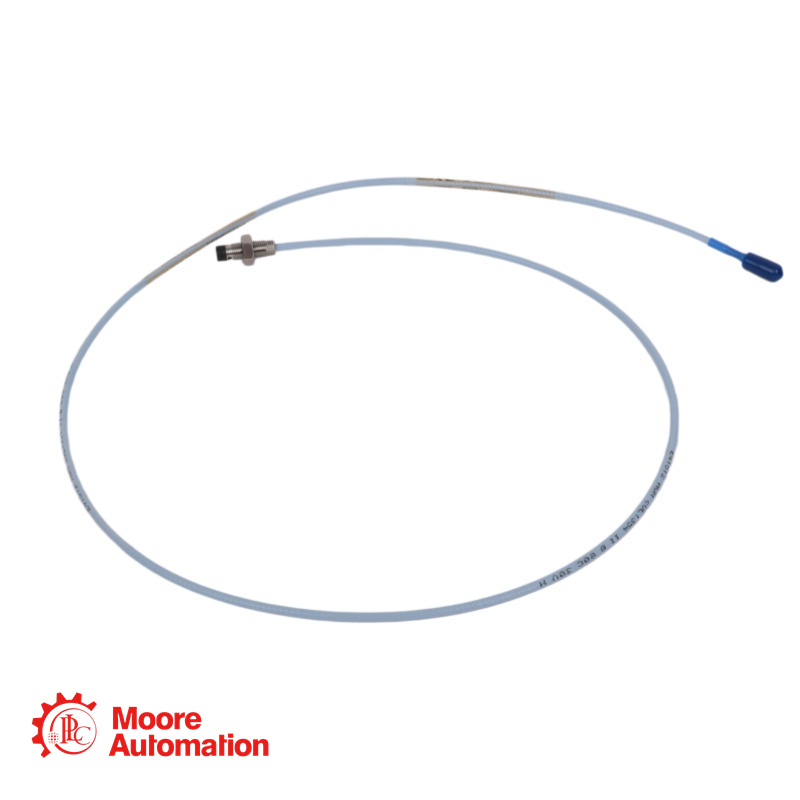

Bently Nevada 330101-20-45-05-02-05 Proximity Probe
Бренд :
Bently Nevadaномер части :
330101-20-45-05-02-05Масса :
0.1 kgИзмерение :
1.4x1.2x116cmСтрана происхождения :
USAКод ТН ВЭД :
8537101190Описание :
Proximity Probe
>>>Inquire 330101-20-45-05-02-05
Email: sales5@mooreplc.com
Phone/ Whatsapp: +86 15359408275
>>>330101-20-45-05-02-05
Part Number: 330101-20-45-05-02-05
Product:3300 XL 8 mm Proximity Probe (Standard forward mount)
Option Code
Selection
Description
Base P/N
330101
3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor
A (Unthreaded Length)
20
2.0 inches (Minimum 0.0 in, max 8.8 in, increments of 0.1 in)
B (Overall Case Length)
45
4.5 inches (Minimum 0.8 in, max 9.6 in, increments of 0.1 in)
C (Total Cable Length)
05
0.5 meter (1.6 feet)
D (Connector & Cable Type)
02
Miniature coaxial ClickLoc connector, standard cable (no connector protector)
E (Agency Approval)
05
CSA, ATEX, IECEx Approvals (hazardous area approved)
>>>Specification - 330101-20-45-05-02-05
System Type：3300 XL 8 mm Proximity Transducer System
Primary Use：Vibration/position measurements on fluid-film bearing machines; Keyphasor/speed reference
Thread Size:3/8-24 UNF (standard forward mount)
Armor:None (without armor)
Probe Tip Material:Polyphenylene sulfide (PPS)
Probe Case Material:AISI 303 or 304 stainless steel
Cable Type:75Ω triaxial, FEP insulated
Total Cable Length:0.5 meter (1.6 feet)
Linear Range:2 mm (80 mils) from ~0.25 mm to 2.3 mm (~ -1 Vdc to -17 Vdc)
Recommended Gap:1.27 mm (50 mils)
>>> FAQ - 330101-20-45-05-02-05
1. What is the 3300 XL 8 mm Proximity Transducer System used for?
It is used for vibration and position measurements on fluid-film bearing machines (e.g., compressors, turbines, pumps), as well as Keyphasor reference and speed measurements. The 8 mm system is the most rugged and commonly used eddy current proximity transducer in Bently Nevada's product line.
2. Is this probe approved for hazardous areas?
Yes. Option E = 05 means the probe has CSA, ATEX, and IECEx approvals for use in hazardous locations. Refer to the Temperature Schedule in the datasheet for T-class vs. ambient temperature limits (e.g., T5 @ -55°C to +40°C, T4 @ -55°C to +80°C).
3. What is the recommended gap setting?
The recommended gap is 1.27 mm (50 mils). The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm, corresponding to an output voltage of approximately -1 Vdc to -17 Vdc.
|
