Бренд :
Bently Nevadaномер части :
24701-34-05-00-043-03-02Масса :
1.2kgИзмерение :
31x8.5x8.5cmСтрана происхождения :
USAКод ТН ВЭД :
8537101190Описание :

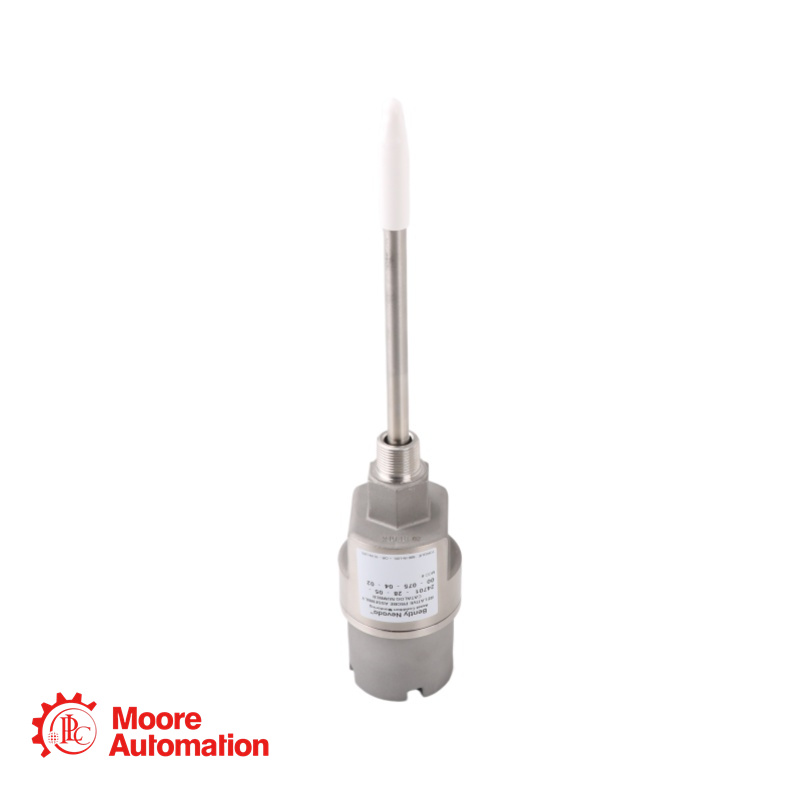

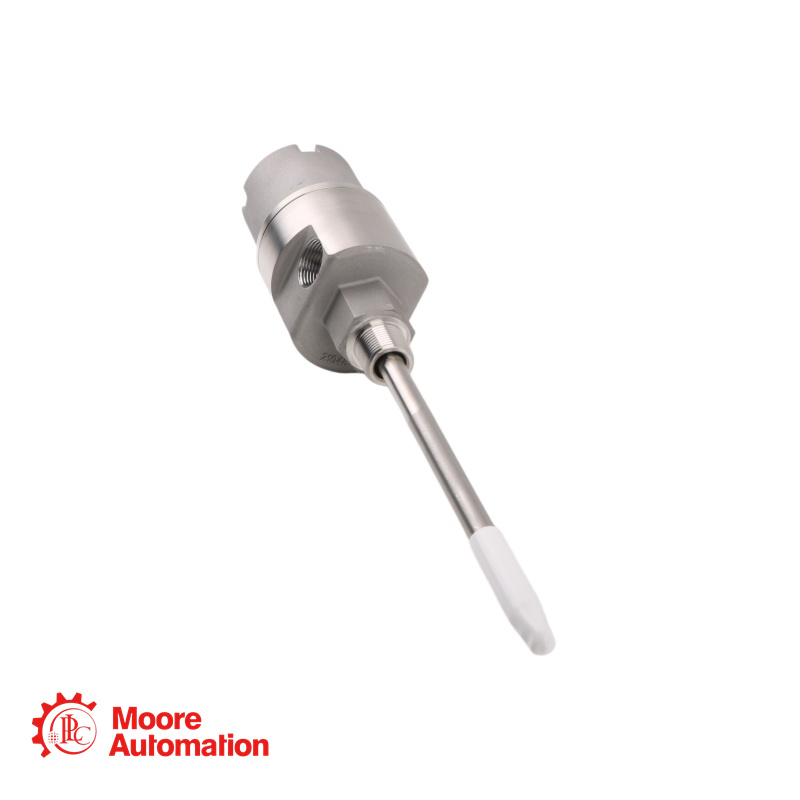

Proximity Probe Housing Assembly
※Contact & Order
✉ Email: sales5@mooreplc.com
※Part Number Breakdown
B (Probe Cable Length):05 0.5 meter (20 inches)
C (Standoff Adapter Length):00 No standoff adapter
D (Probe Penetration):043 4.3 inches (109 mm) probe sleeve penetration
E (Fittings):03 One 3/4-14 NPT plug + one 3/4-14 to 1/2-14 NPT reducer + cable seal grip with grommets
F (Mounting Thread):02 3/4-14 NPT
※General Information
Field
Value
Product ID
24701-34-05-00-043-03-02
Type Designation
24701 Proximity Probe Housing Assembly
Manufacturer
Bently Nevada
Catalog Description
Explosion-proof stainless steel proximity probe housing for external mounting
Long Description
The 24701 all-metal housing assembly allows external access to proximity probes for gap adjustment or replacement without machine disassembly. 303 stainless steel body with 304 stainless steel sleeve. CSA certified explosion-proof for hazardous areas (Class I Div 1 & 2, Class II Div 1 & 2, Class III). Fully compliant with API 670 standard. This model includes a 3300 XL 8 mm probe with connector protector and hazardous area approvals. The stainless steel construction provides superior corrosion resistance for offshore and chemical environments.
Product Family
21000 / 24701 / 164818 Series
※Core Data
Parameter
Specification
Probe type
3300 XL 8 mm reverse mount
Cable length
0.5 meter (20 inches)
Connector protector
Yes (Option A=34)
Probe operating temp (3300 XL 8 mm)
−51°C to +177°C (−60°F to +351°F)
Probe storage temp
−51°C to +177°C
※Applications
Compressors:Shaft vibration & position in centrifugal/reciprocating compressors
Pumps:Bearing vibration & shaft position in large industrial pumps
Fans & blowers:Critical asset protection
Oil & gas:Offshore platforms, refineries, pipelines
Power generation:Steam/gas turbines, generators, hydro plants
Marine:Main propulsion shaft monitoring (ABS/DNV certified)
|
