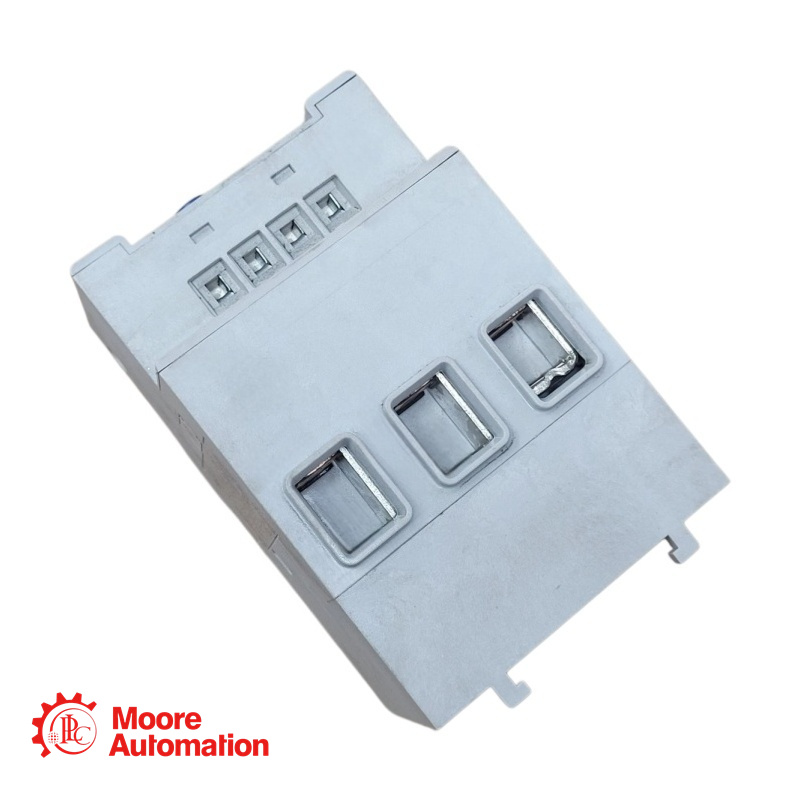

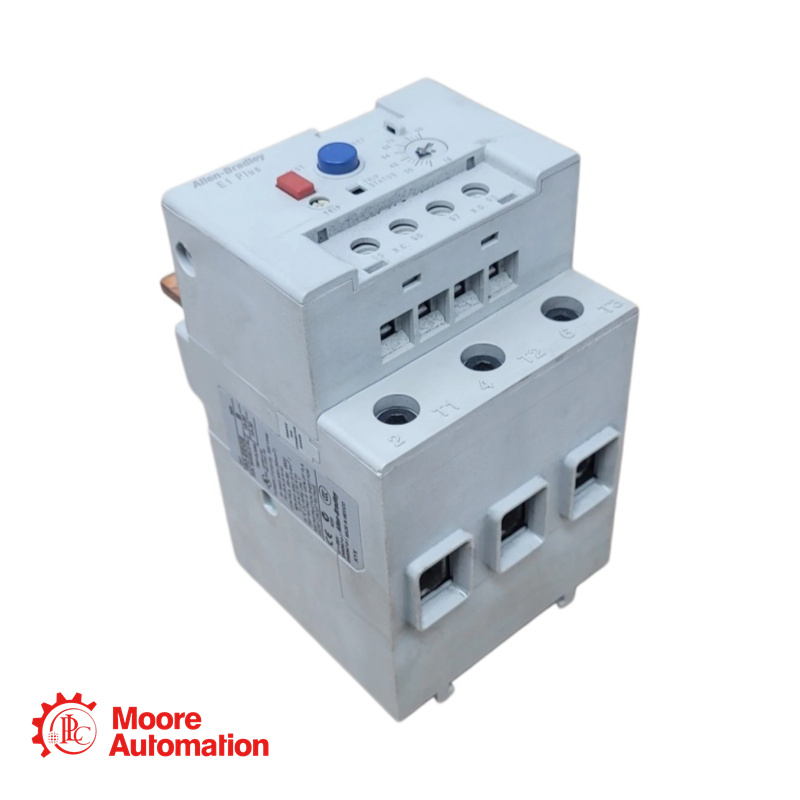

193-EEGE Overload Relay

E1 Plus Enhanced Electronic Overload Relay, 18-90A (3-Phase), for use with 100-C60...97, Adjustable Trip Class, Auto/Manual Reset, Optional Side Mount Modules

Specifications of 193-EEGE

Current Adjustment Range:18-90 A
Trip Class:10-15-20-30
Product Series:E1 Plus
Component Type:Electronic Overload Relay
Current Adjustment Ratio:5:1
Current Range:18–90 A (3-Phase)
Motor FLC Min:18 A
Motor FLC Max:90 A
kW Rating (AC-3, 415V) Min:11 kW
kW Rating (AC-3, 415V) Max:45 kW
Compatible Contactor:100-C60...97
Reset Type:Automatic / Manual
Rated Operation Voltage:690 V AC
Low-Voltage Compatible Contacts:17V, 5mA (PLC compatible)
Output Contacts:1x N/C, 1x N/O (trip + alarm)

FAQ of 193-EEGE

Q: What is the current adjustment range?
A: The relay has a 5:1 adjustment range (18–90A), reducing inventory needs.
Q: Does the overload relay require an external power supply?
A: No, it is self-powered — no separate power supply connection is required.
Q: Does the relay generate significant heat?
A: No, it generates extremely low heat, resulting in cooler panels and switchboards.

Technical Notes

Wide current adjustment range (5:1) significantly reduces inventory requirements
Extremely low heat generation results in cooler panels and switchboards
Self-powered with no separate power supply connection required, for convenience
Advanced phase failure detection (typically 3 seconds) for improved motor protection
Low-voltage compatible contacts (17V, 5mA)
Includes trip and alarm contacts – 1x N/C and 1x N/O for easy integration into your control circuit
Unique latching mechanism and strengthened power connections provide greater mechanical connection with Bulletin 100-C contactors for a more robust design
